1986 Kawasaki Voyager Xii Starter Motor Diagram

← All diagrams

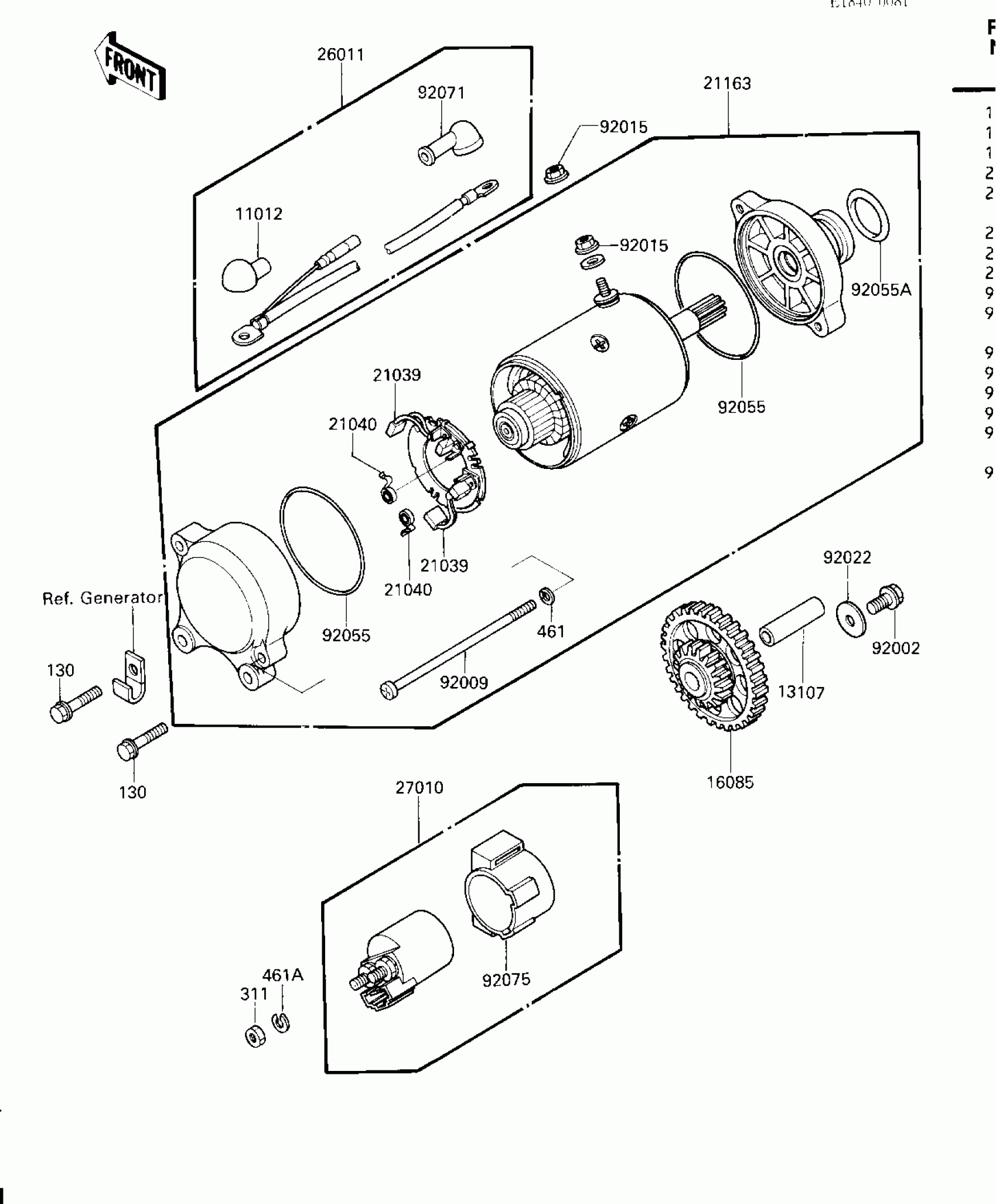

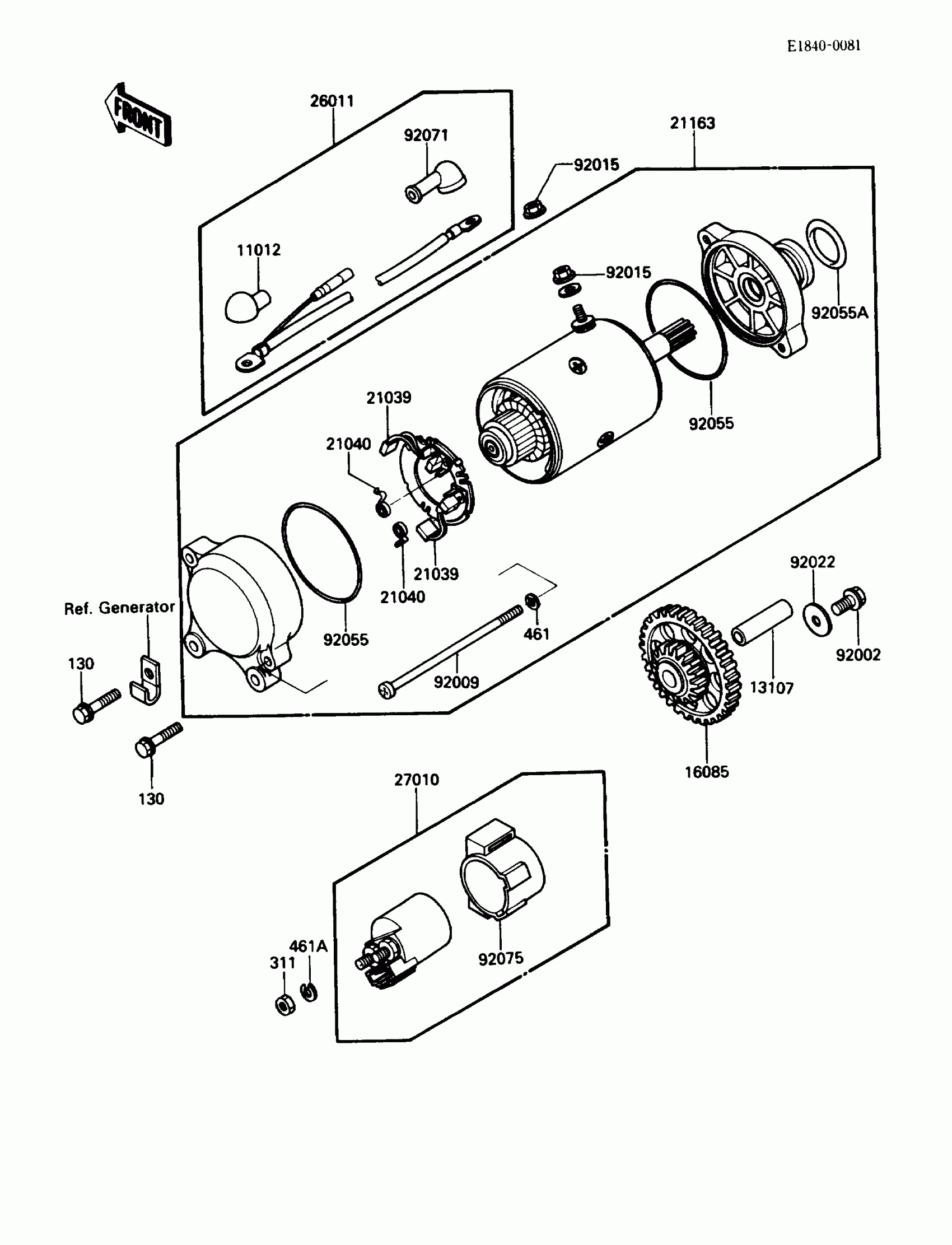

Find the part on the Starter Motor diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Xii Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1
Out of stock

13107

SHAFT,IDLE GEAR

13107-1106

1
Out of stock

16085

GEAR,STARTER IDLE

16085-1216

1
Out of stock

21039

BRUSH,CARBON

21039-003

1
Out of stock

21040

SPRING-BRUSH

21040-003

1
Out of stock

21163

STARTER-ELECTRIC

21163-1098

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1369

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1209

1
Out of stock

92002

BOLT,6X12

92002-1572

1
Out of stock

92009

SCREW

92009-1443

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1
Out of stock

92055

RING-O,STARTER MOTOR

21027-003

1
Out of stock

92055A

RING-O

92055-1303

1
Out of stock

92071

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
