1986 Kawasaki Voyager XII Headlight Diagram

← All diagrams

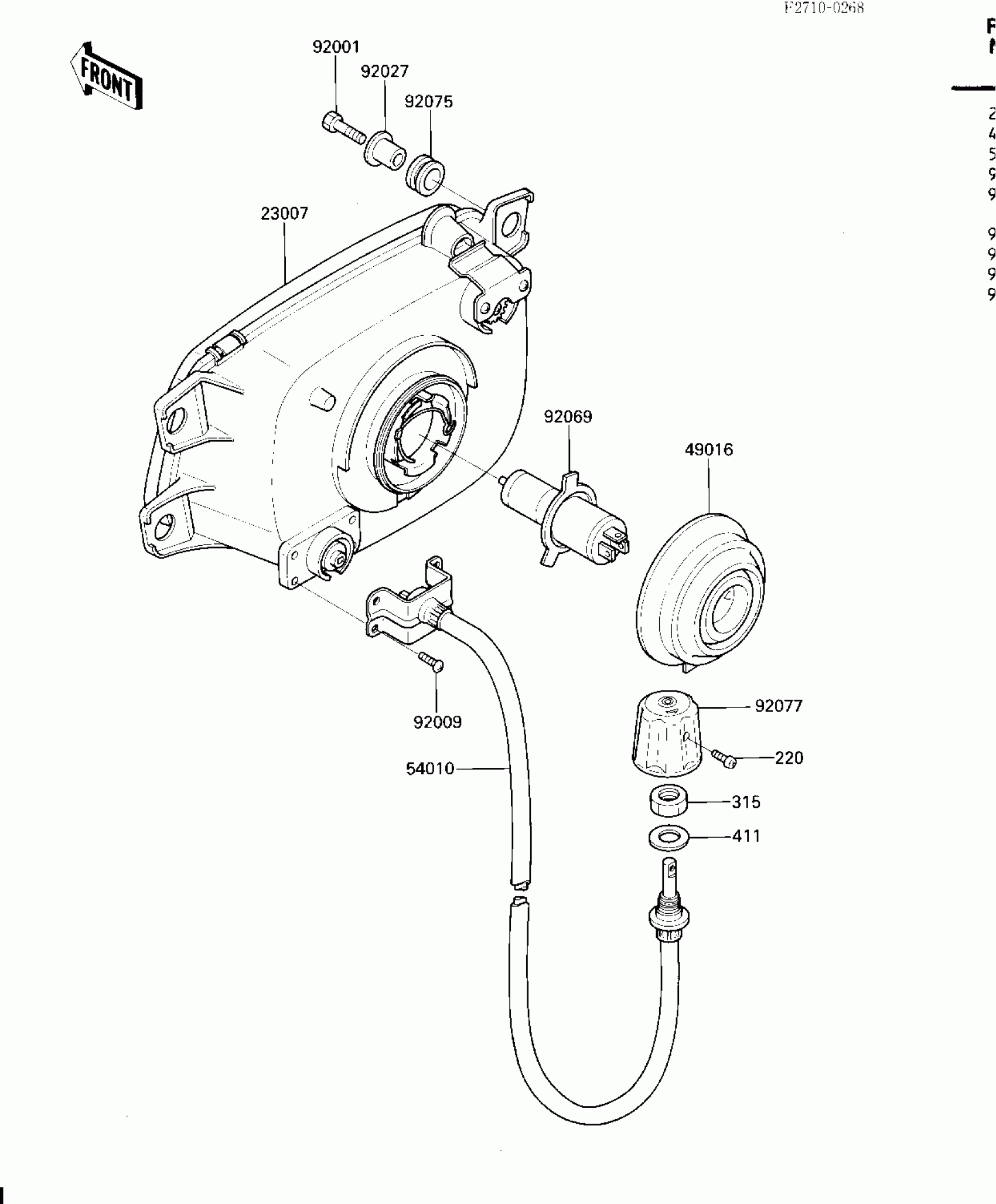

Find the part on the Headlight diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP,HEAD LAMP

23007-1144

1
Out of stock

49016

COVER-SEAL,HEAD LAMP

49016-1108

1
Out of stock

54010

CABLE,HEAD LAMP

54010-1058

1
Out of stock

92001

BOLT,6X25

92001-1284

1
Out of stock

92009

SCREW,TAPPING,4X14

92009-1340

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92077

KNOB,HEAD LAMP CABLE

92077-1064

1
Out of stock

220

SCREW-PAN-CROS

220C0312

1
Out of stock

315

NUT-HEX-FINE

315C1200

1
Out of stock

411

WASHER-PLAIN

411F1200

1
Out of stock
