1986 Kawasaki Voyager XII Ignition Diagram

← All diagrams

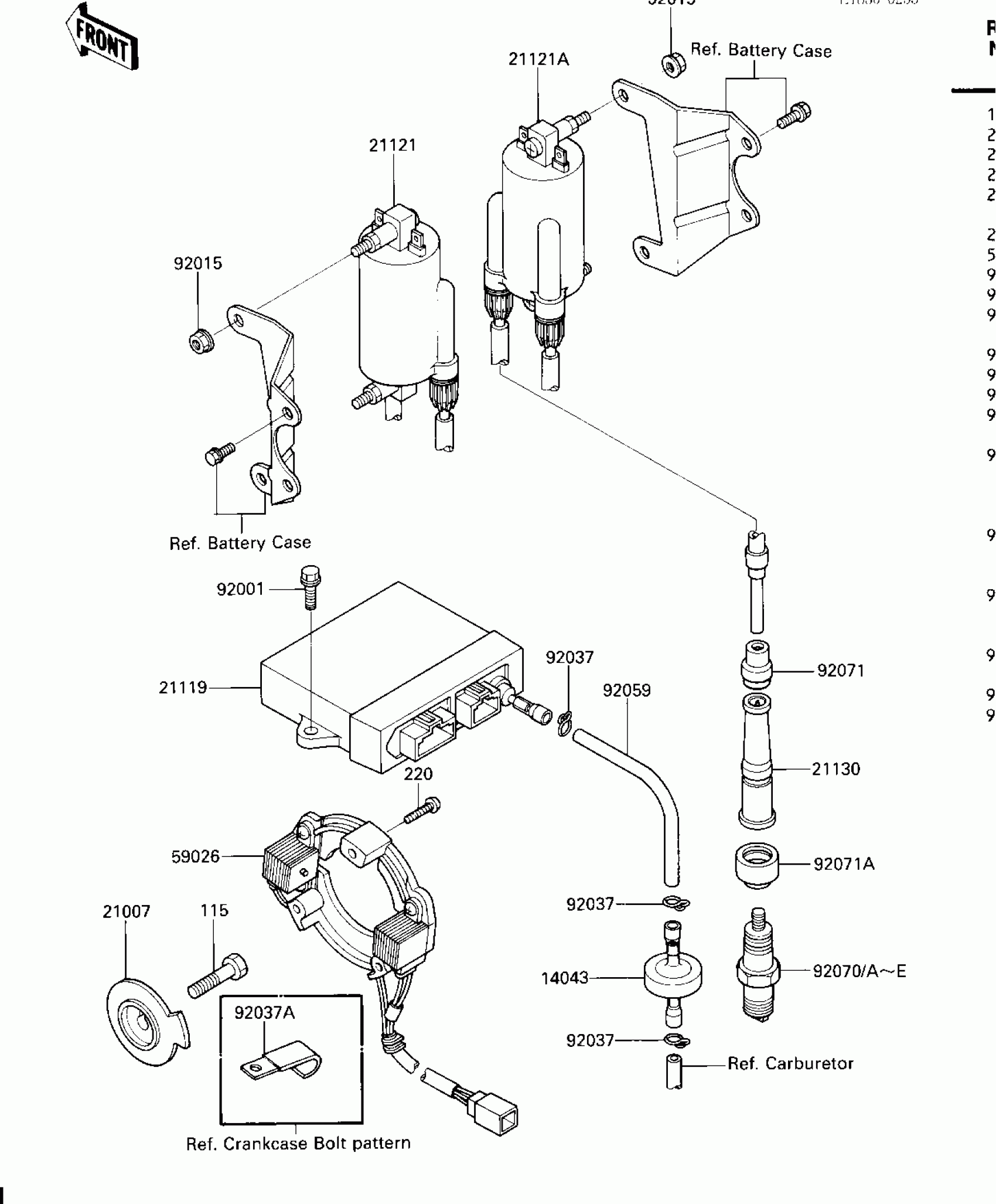

Find the part on the Ignition diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14043

FILTER

14043-1060

1

$47.82

In stock

21007

ROTOR,PULSING COIL

21007-1137

1
Out of stock

21119

IGNITER

21119-1248

1
Out of stock

21121

COIL-IGNITION,#1&4

21121-1142

1
Out of stock

21121A

COIL-IGNITION,#2&3

21121-1143

1
Out of stock

21130

CAP-SPARK PLUG

21130-019

1
Out of stock

59026

COIL-PULSING

59026-1082

1
Out of stock

92001

BOLT,6X20

92001-1091

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92037

CLAMP,TUBE

92037-1482

1
Out of stock

92037A

CLAMP,L=45

92037-1539

1
Out of stock

92059

TUBE,3X7X140

92059-1687

1
Out of stock

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

1
Out of stock

92070A

SPARK PLUG DPR9EA-9

DPR9EA9

1
Out of stock

92070E

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

1
Out of stock

92071

GROMMET,HIGH TENSION

21131-005

1
Out of stock

92071A

GROMMET,PLUG CAP

92071-1124

1
Out of stock

115

BOLT-SMALL-UPSET,8X30

115G0830

1
Out of stock

220

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock
