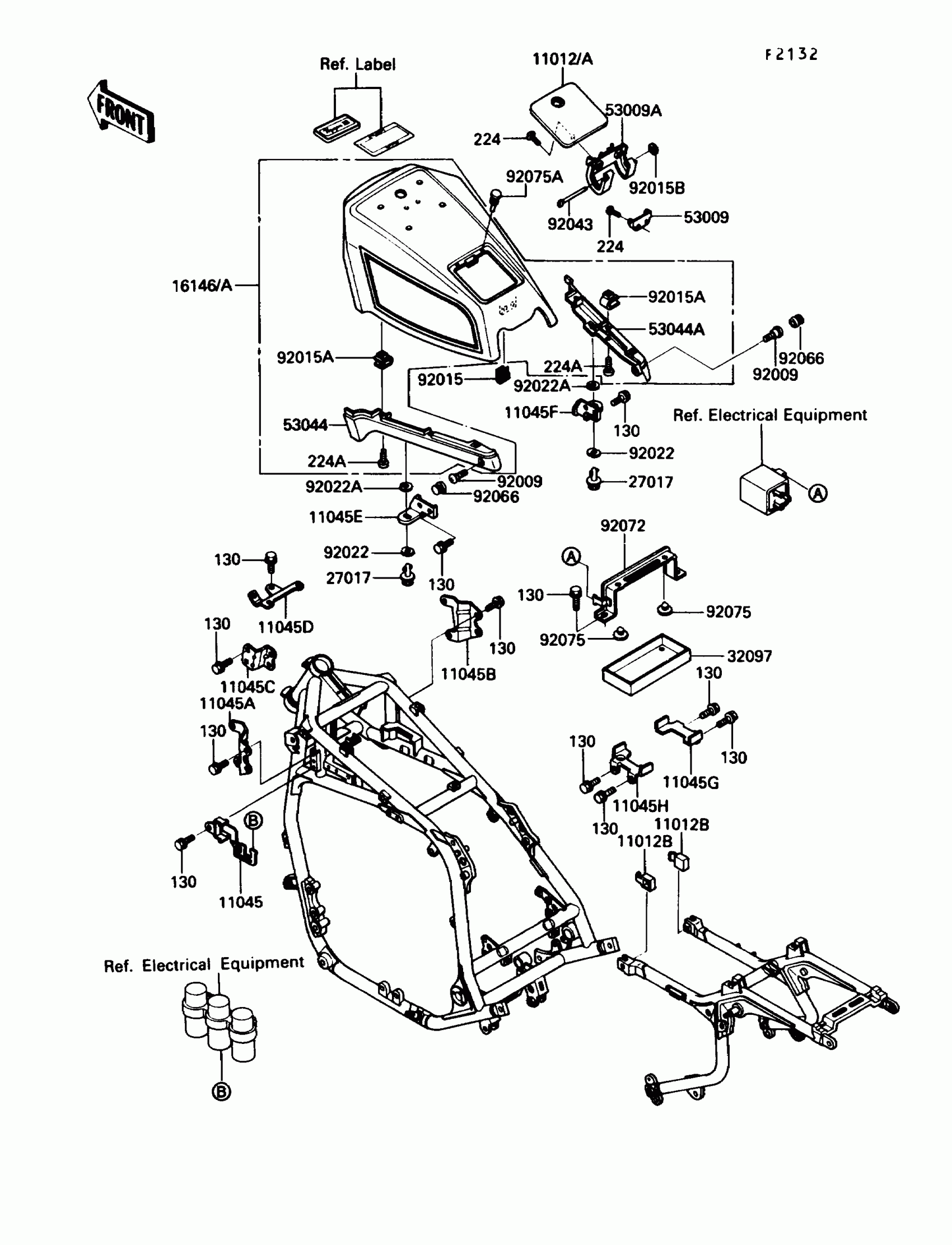

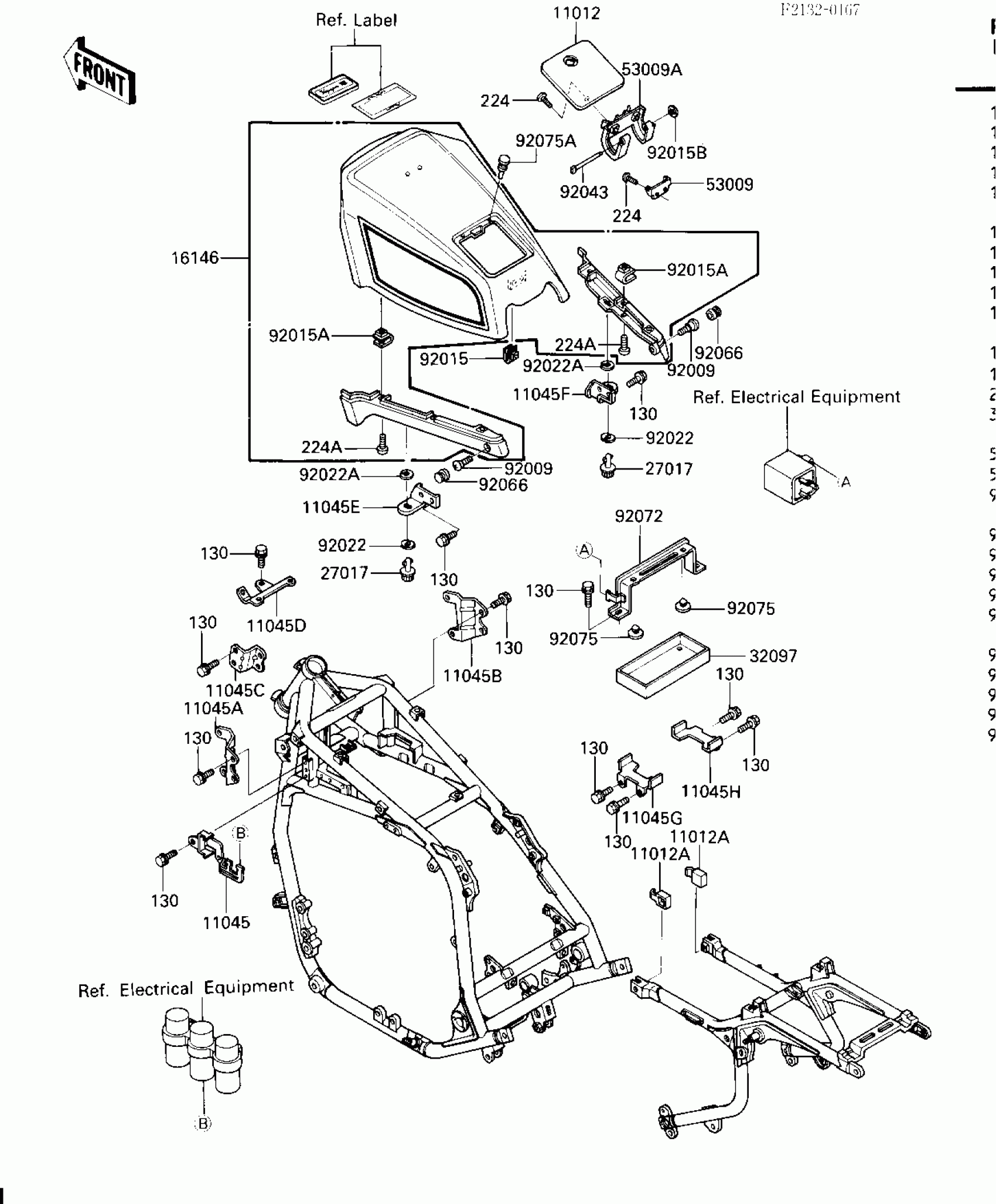

Find the part on the Battery Case diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,DUMMY TANK,L.V.RE

11012-1492-P5

1
Out of stock

11012A

CAP

11012-1542

1
Out of stock

11045

BRACKET,RELAY

11044-1683

1
Out of stock

11045A

BRACKET,IGNITION COIL,LH

11044-1684

1
Out of stock

11045B

BRACKET,IGNITION COIL,RH

11044-1685

1
Out of stock

11045C

BRACKET,THERMOSTAT

11044-1686

1
Out of stock

11045D

BRACKET,FUSE

11045-1056

1
Out of stock

11045E

BRACKET,DUMMY TANK,LH

11045-1077

1
Out of stock

11045F

BRACKET,DUMMY TANK,RH

11045-1078

1
Out of stock

11045G

BRACKET,BATTERY,LH

11045-1296

1
Out of stock

11045H

BRACKET,BATTERY,RH

11045-1297

1
Out of stock

16146

COVER-ASSY,DUMMY TANK

16146-5012-V4

1
Out of stock

27017

LOCK,DUMMY TANK

27017-1124

1
Out of stock

32097

CASE-BATTERY

32097-1126

1
Out of stock

53009

HINGE,DUMMY TANK

53009-1060

1

$5.61

In stock

53009A

1

$30.85

In stock

92009

SCREW

92009-1258

1
Out of stock

92015

NUT,5MM

92015-1569

1
Out of stock

92015A

NUT,5MM

92015-1573

1
Out of stock

92015B

NUT,PUSH,2.6MM

92015-1576

1
Out of stock

92022

WASHER,WAVE,8MM

92022-1776

1
Out of stock

92022A

WASHER,6.5MM

92022-1808

1
Out of stock

92043

PIN,2.6X88

92043-1306

1
Out of stock

92066

PLUG

92066-1243

1
Out of stock

92072

BAND,BATTERY

92072-1194

1
Out of stock

92075

DAMPER,RUBBER

92075-078

1
Out of stock

92075A

DAMPER,6X10X15

92075-1808

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0512

1
Out of stock

224A

SCREW-PAN-WP-CROS

224B0516

1
Out of stock
