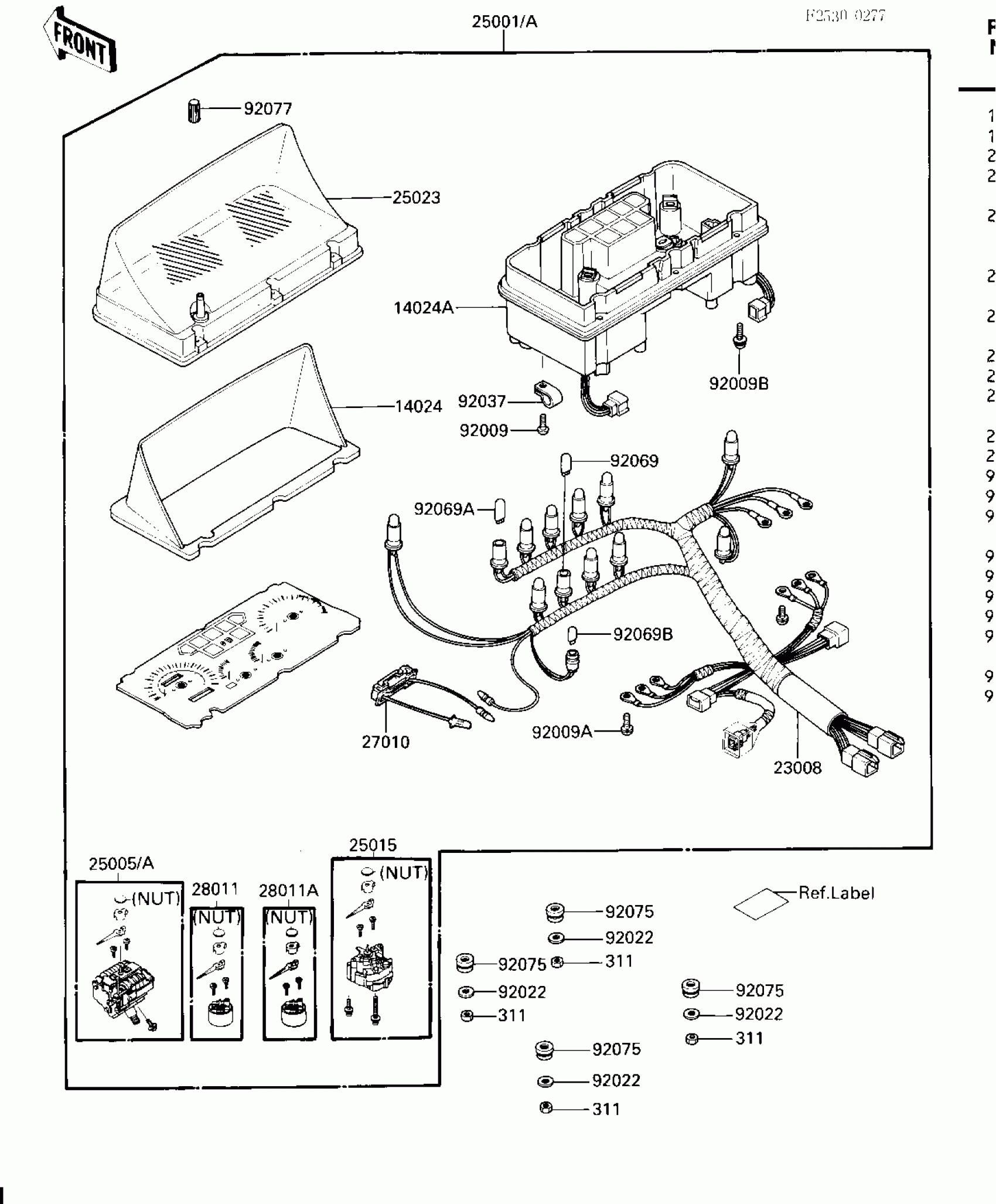

Find the part on the Meters diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER,UPP

14024-1179

1

$144.95

In stock

14024A

COVER,METER,LWR

14024-1180

1

$226.72

In stock

23008

SOCKET-ASSY,METER

23008-1289

1
Out of stock

25001

METER-ASSY,MPH

25001-1627

1
Out of stock

25001A

METER-ASSY,KPH (Canada)

25001-1659

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1323

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1337

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1255

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1133

1
Out of stock

27010

SWITCH,METER

27010-1205

1
Out of stock

28011

METER,FUEL

28011-1079

1
Out of stock

28011A

METER,TEMP

28011-1082

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,3X22

92009-1293

1
Out of stock

92009B

SCREW,3X10

92009-1382

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92037

CLAMP,CODE

92037-1769

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92069B

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92075

DAMPER

92075-1805

1
Out of stock

92077

KNOB,RESET TRIP

92077-1017

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock
