1988 Kawasaki Voyager Starter Motor Diagram

← All diagrams

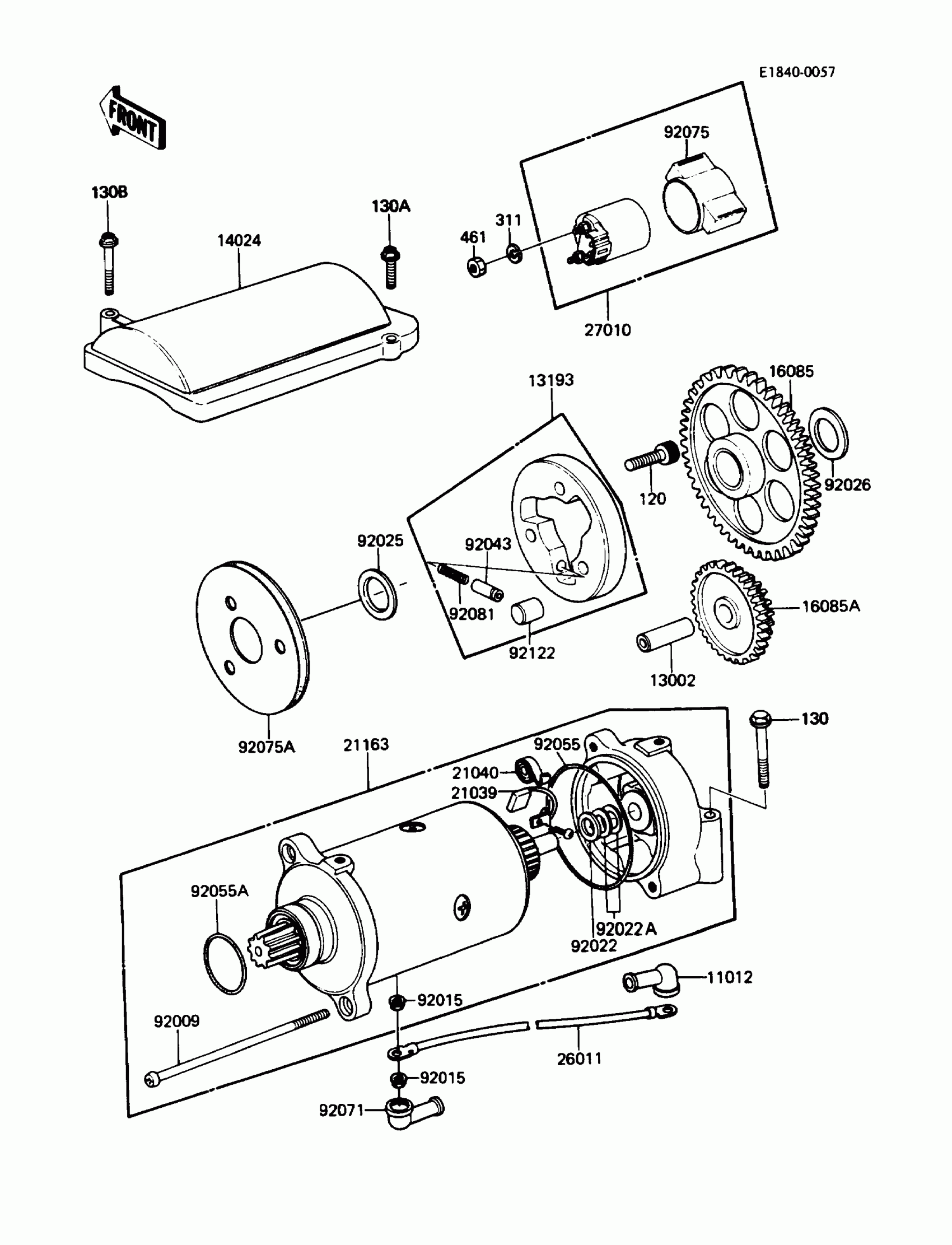

Find the part on the Starter Motor diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13002

PIN-PISTON

13002-019

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1012

1
Out of stock

14024

COVER,STARTER MOTOR

14025-1752

1
Out of stock

16085

1

$256.02

In stock

16085A

1

$54.78

In stock

21039

BRUSH,CARBON

21039-003

1

$42.66

In stock

21040

SPRING-BRUSH

21040-003

1
Out of stock

21163

STARTER-ELECTRIC

21163-1059

1

$766.98

In stock

26011

1

$32.05

In stock

27010

SWITCH,MAGNETIC

27010-1098

1
Out of stock

92009

1

$9.86

In stock

92015

NUT,FLANGED,6MM

92015-1195

1
Out of stock

92022

WASHER,THRUST,T=1.6

21025-010

1
Out of stock

92022A

WASHER,9.1X18X0.2

21025-011

—

$5.42

In stock

92025

SHIM,25.3X36X0.30

92025-1019

1
Out of stock

92026

SPACER,25.0X34X2.3

92026-1059

1
Out of stock

92043

PIN

92043-087

1

$10.11

In stock

92055

RING-O,STARTER MOTOR

21027-003

1
Out of stock

92055A

1

$7.86

In stock

92071

1

$7.48

In stock

92075

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

92075A

DAMPER

92075-1390

1

$135.01

In stock

92081

SPRING

92081-110

1

$3.78

In stock

92122

ROLLER,15X13

92122-004

1

$8.77

In stock

120

BOLT-SOCKET,8X25

120P0825

1
Out of stock

130

BOLT-FLANGED,6X55

130G0655

1
Out of stock

130A

BOLT-FLANGED

130N0625

1
Out of stock

130B

BOLT-FLANGED

130N0640

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
