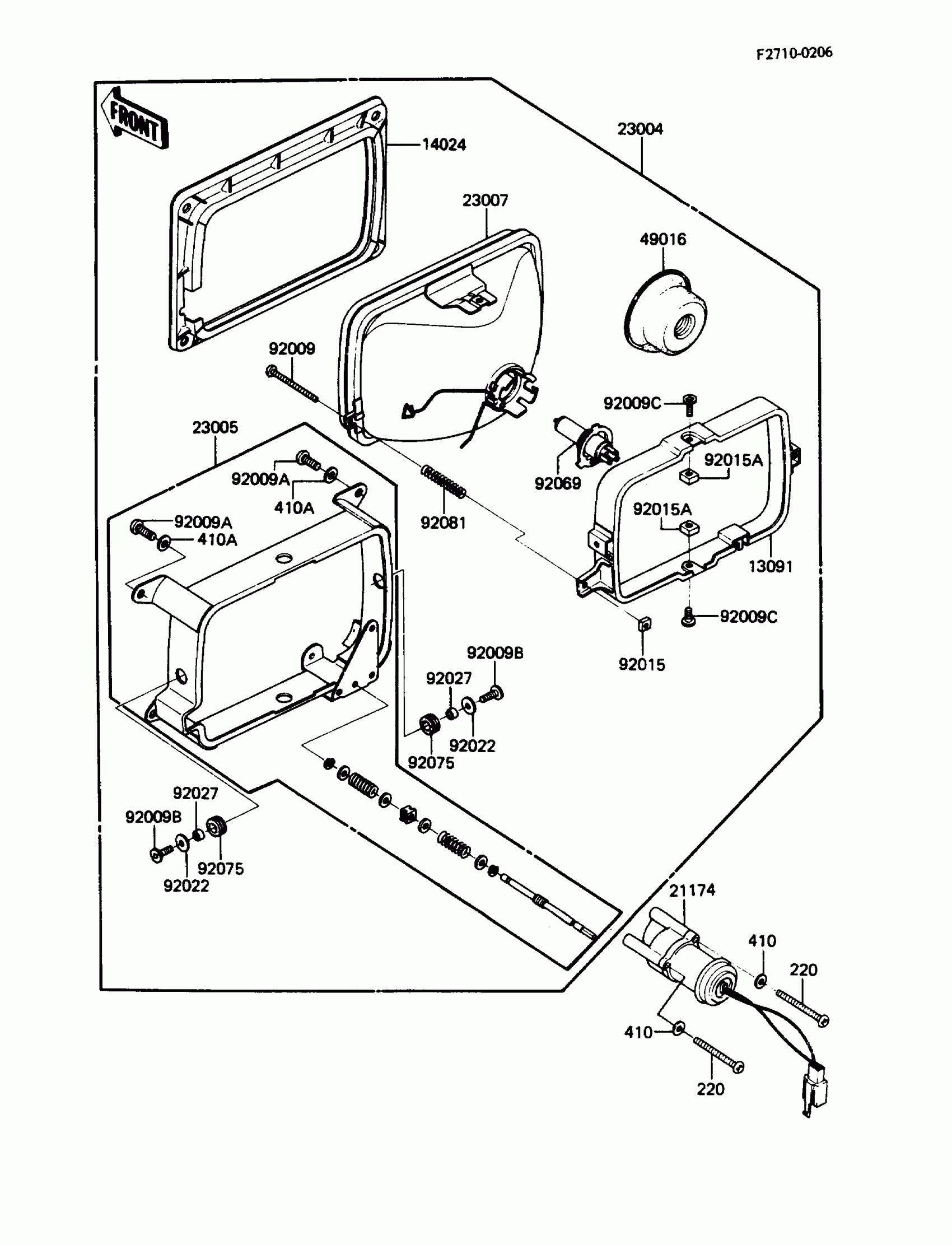

Find the part on the Headlight diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,HEAD LAMP BODY

13091-1187

1
Out of stock

14024

COVER,HEAD LAMP LENS

14025-1678

1
Out of stock

21174

1

$579.02

In stock

23004

LAMP-HEAD

23004-1115

1

$331.50

In stock

23005

BODY-COMP-HEAD LAMP

23005-1031

1

$83.23

In stock

23007

LENS-COMP,HEAD LAMP

23007-1054

1

$117.47

In stock

49016

1

$11.85

In stock

92009

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

92009A

SCREW,5X16

92009-1157

1
Out of stock

92009B

SCREW,5X12

92009-1188

1
Out of stock

92009C

SCREW,5X8

92009-1189

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,5MM

92015-1253

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

1

$4.78

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.29

In stock

92081

1

$4.10

In stock

220

SCREW-PAN-CROS

220B0445

1
Out of stock

410

WASHER PLAIN 4MM

410B0400

1
Out of stock

410A

1

$1.24

In stock
