1988 Kawasaki Voyager Generator Diagram

← All diagrams

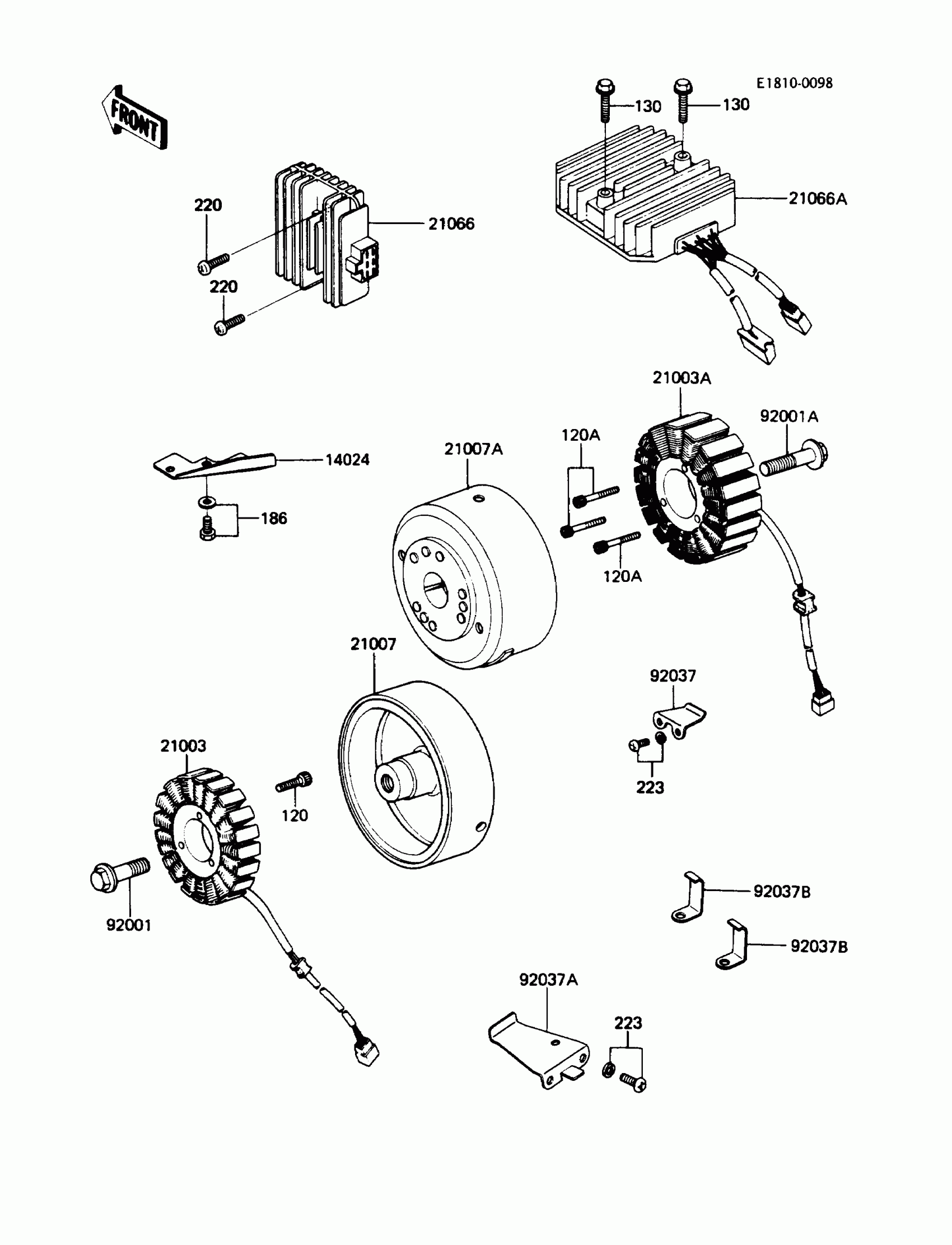

Find the part on the Generator diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,GENERATOR LEAD

14025-1391

1
Out of stock

21003

STATOR,LH

21003-1064

1
Out of stock

21003A

STATOR,RH

21003-1104

1

$795.76

In stock

21007

ROTOR,LH

21007-1051

1

$700.76

In stock

21007A

ROTOR,RH

21007-1073

1

$524.62

In stock

21066

REGULATOR-VOLTAGE

21066-1038

1

$255.77

In stock

21066A

REGULATOR-VOLTAGE

21066-1051

1

$475.24

In stock

92001

BOLT,FLANGED,12X40

92001-1012

1
Out of stock

92001A

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92037

CLAMP,GENERATOR LEAD

92037-1287

1
Out of stock

92037A

CLAMP,LEAD WIRE

92037-1343

1

$5.47

In stock

92037B

CLAMP,LEAD WIRE

92037-1345

1

$4.22

In stock

120

BOLT-SOCKET,5X30

120P0530

1
Out of stock

120A

BOLT-SOCKET,6X35

120P0635

1
Out of stock

130

BOLT-FLANGED,5X35

130B0535

1
Out of stock

186

BOLT-UPSET-WP

186D0610

1

$2.31

In stock

220

1

$4.61

In stock

223

SCREW-PAN-WS-CROS

223B0510

1
Out of stock
