1986 Kawasaki Voyager Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

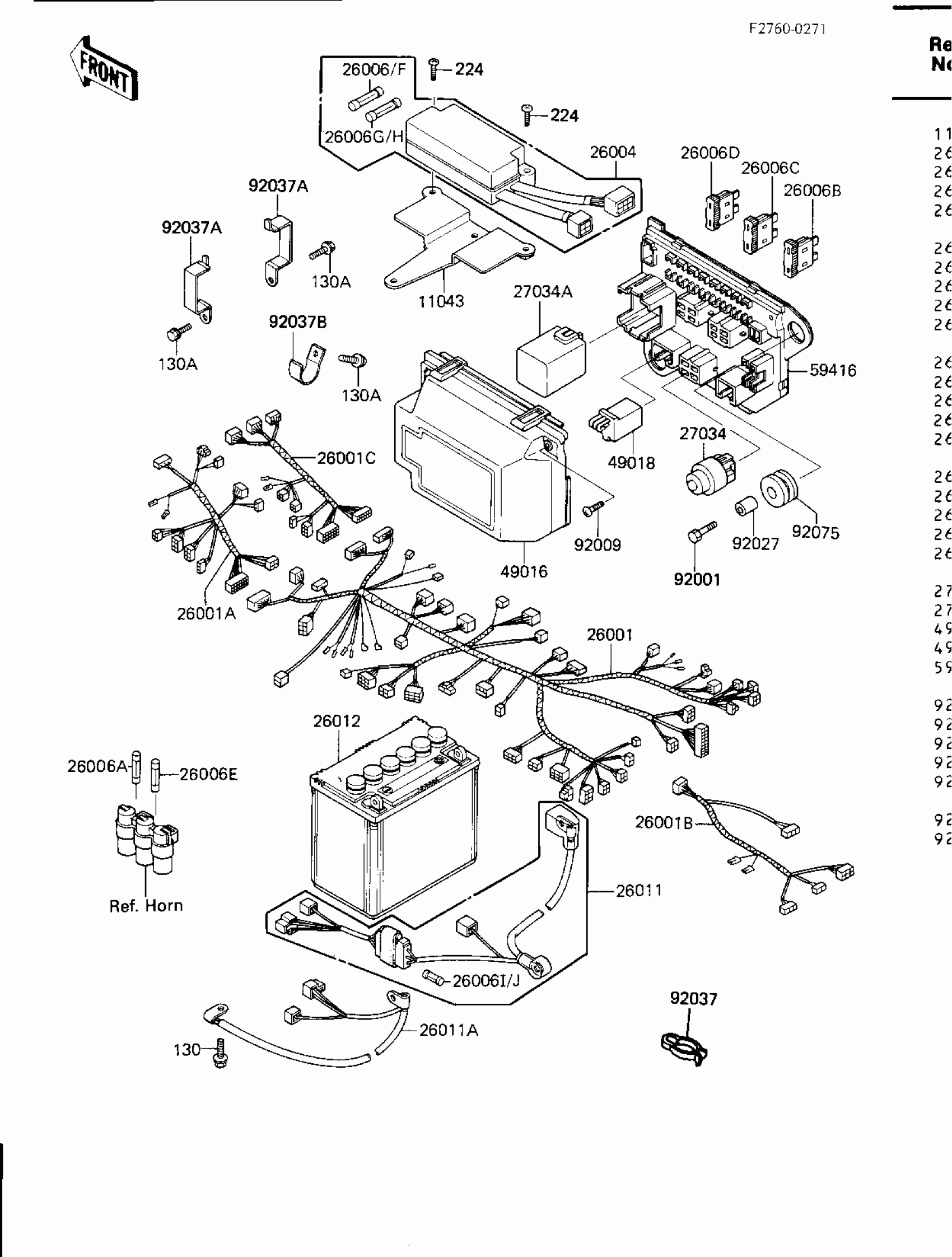

1986 Kawasaki Voyager Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET-B,SUB FUSE

11043-1317

1
Out of stock

26001

HARNESS,MAIN

26001-1505

1

$846.82

In stock

26001A

HARNESS,SUB

26001-1506

1

$106.08

In stock

26001B

HARNESS,RR

26001-1553

1

$59.24

In stock

26001C

1

$101.12

In stock

26004

FUSE-ASSY

26004-1052

1

$91.88

In stock

26006

FUSE,20A,L=25

26006-005

1

$4.02

In stock

26006A

FUSE,20A,L=26

26006-006

1

$2.71

In stock

26006B

1

$4.39

In stock

26006C

FUSE,BLADE,10A,RED

26006-1007

1

$3.94

In stock

26006D

1

$4.39

In stock

26006E

FUSE,3A,L=30

26006-1052

1

$3.53

In stock

26006F

FUSE,5A,L=25

26006-1053

1
Out of stock

26006G

FUSE,3A,L=30

26006-1054

1

$2.95

In stock

26006H

FUSE,1A,L=30

26006-1055

1
Out of stock

26006I

FUSE,20A,L=30

26006-1056

1
Out of stock

26006J

FUSE,1A,L=30

26006-1057

1

$2.95

In stock

26011

WIRE-LEAD,BATTERY

26011-1190

1

$46.56

In stock

26011A

1

$69.99

In stock

26012

1

$156.95

In stock

27034

RELAY,STARTER

27034-1006

1

$92.57

In stock

27034A

RELAY,FLASHER

27034-1007

1

$175.04

In stock

49016

COVER-SEAL

49016-1050

1
Out of stock

49018

DIODE

49018-1006

1
Out of stock

59416

CASE-ELECTRIC

59416-1056

1
Out of stock

92001

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92009

SCREW,TAPPING,4X10

92009-1021

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92037

CLAMP

92037-093

1

$10.92

In stock

92037A

CLAMP,HARNESS

92037-1469

1

$6.58

In stock

92037B

CLAMP,HARNESS

92037-1492

1

$5.36

In stock

92075

DAMPER

92075-1562

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X10

130C0610

1
Out of stock

224

1

$3.92

In stock
