1988 Kawasaki Voyager Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

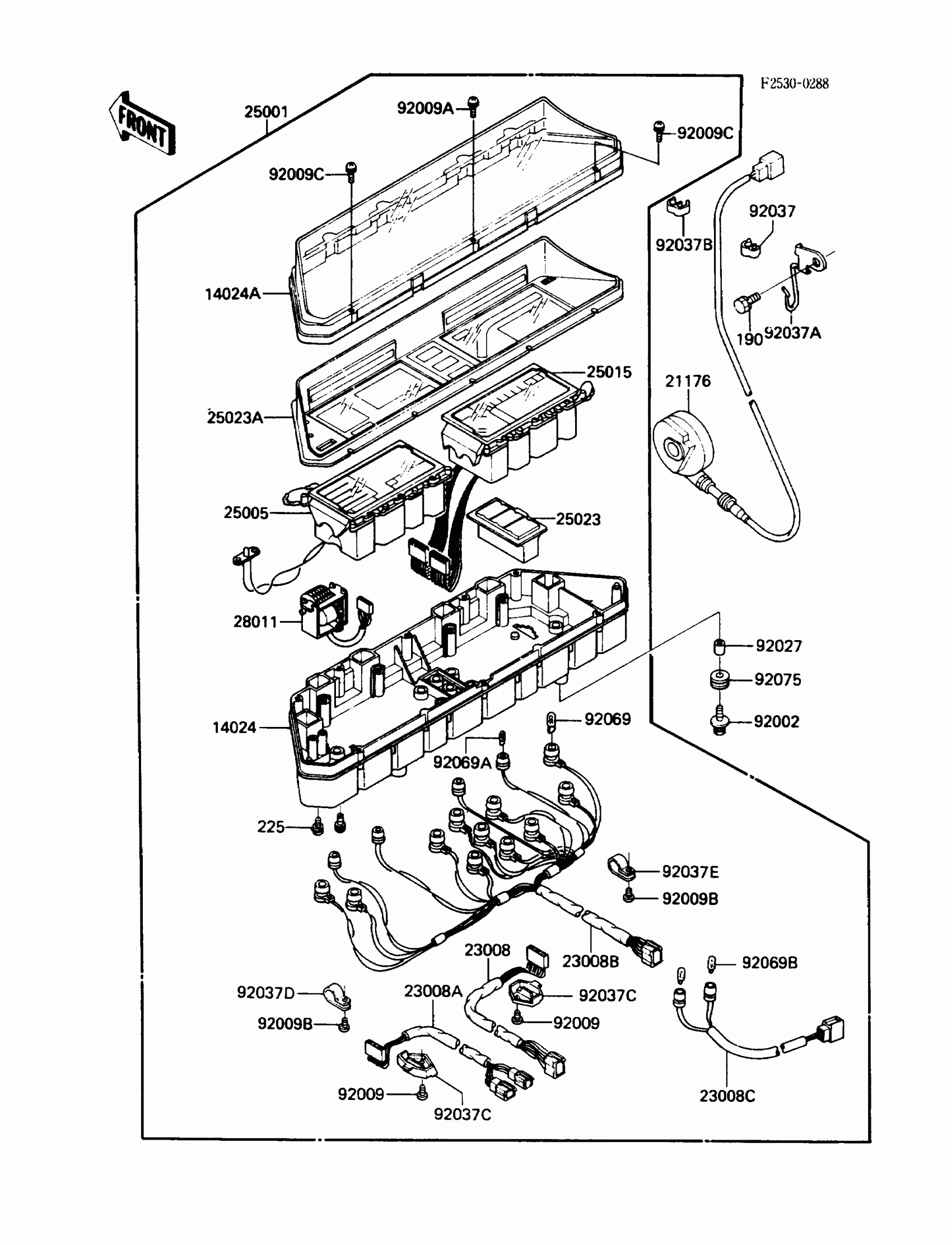

1988 Kawasaki Voyager Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER,LWR

14024-1596

1
Out of stock

14024A

COVER,METER,UPP

14025-1794

1
Out of stock

21176

SENSOR

21176-1053

1

$620.17

In stock

23008

1

$47.39

In stock

23008A

1

$49.83

In stock

23008B

1

$179.26

In stock

23008C

1

$33.78

In stock

25001

METER-ASSY,MPH

25001-1705

1

$2,937.30

In stock

25005

SPEEDOMETER,LCD,MPH

25005-1373

1

$991.62

In stock

25015

1

$1,220.60

In stock

25023

1

$40.07

In stock

25023A

COVER-METER CASE

25023-1160

1

$217.63

In stock

28011

METER,ODOMETER

28011-1055

1

$151.29

In stock

92002

BOLT,6X25

92002-1137

1

$3.49

In stock

92009

SCREW,TAPPING,3X12

92009-1028

1
Out of stock

92009A

SCREW,TAPPING,3X18

92009-1280

1
Out of stock

92009B

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92009C

SCREW,TAPPING,3X14

92009-1504

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92037

CLAMP,HOSE

92037-1249

1
Out of stock

92037A

1

$10.24

In stock

92037B

CLAMP

92037-1458

1

$5.66

In stock

92037C

1

$5.15

In stock

92037D

1

$8.86

In stock

92037E

1

$4.41

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V1.4W T-5

92069-1051

1
Out of stock

92069B

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92075

1

$3.72

In stock

190

1

$2.41

In stock

225

SCREW-PAN-WSP-CROS

225B0410

1
Out of stock
