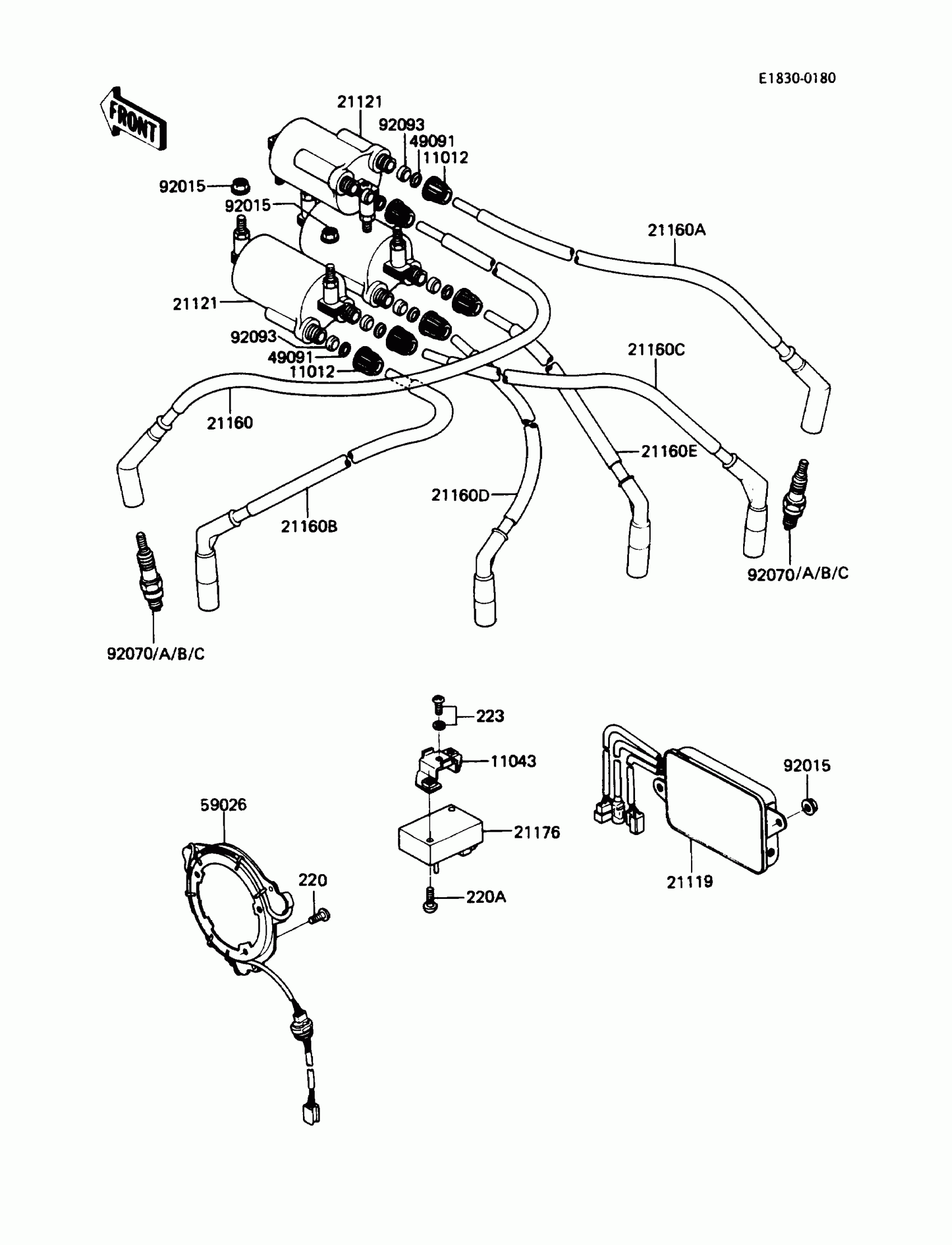

Find the part on the Ignition System diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,IGNITION COIL

11012-1376

1
Out of stock

11043

BRACKET-B,SENSOR

11043-1338

1
Out of stock

21119

IGNITER

21119-1073

1

$1,111.79

In stock

21121

COIL-IGNITION

21121-1112

1
Out of stock

21160

CAP-ASSY-PLUG,#1

21160-1055

1
Out of stock

21160A

CAP-ASSY-PLUG,#6

21160-1056

1
Out of stock

21160B

CAP-ASSY-PLUG,#2

21160-1057

1
Out of stock

21160C

CAP-ASSY-PLUG,#5

21160-1058

1
Out of stock

21160D

CAP-ASSY-PLUG,#3

21160-1059

1
Out of stock

21160E

CAP-ASSY-PLUG,#4

21160-1060

1
Out of stock

21176

SENSOR,VACUUM

21176-1006

1

$1,076.86

In stock

49091

WASHER-SEAL

49091-1051

1
Out of stock

59026

COIL-PULSING

59026-1027

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92070

1

$3.72

In stock

92070A

—

$2.92

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

—
Out of stock

92093

SEAL

92093-1156

1

$4.59

In stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

220A

1

$1.63

In stock

223

1

$0.93

In stock
