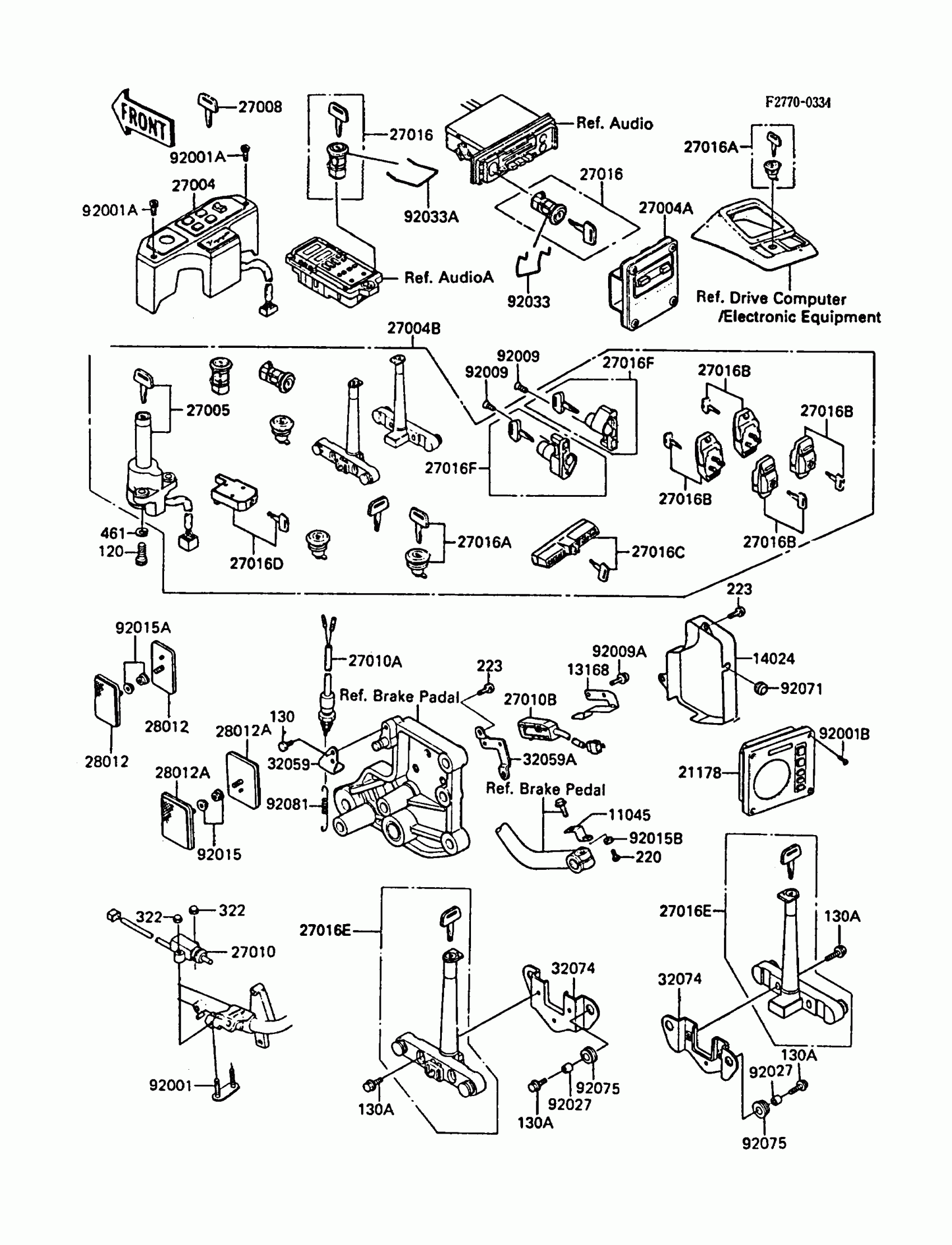

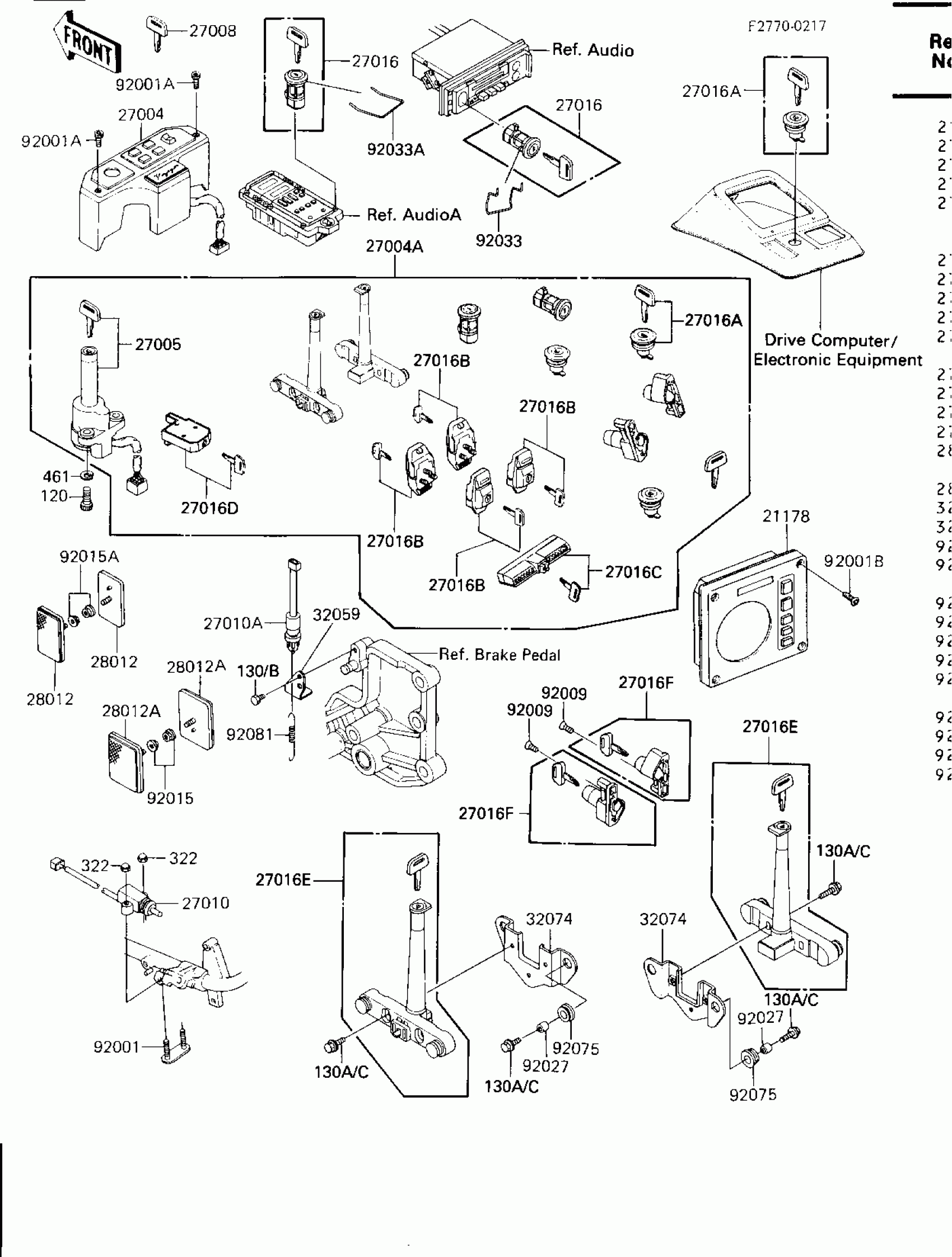

Find the part on the Ignition Switch/locks/reflectors diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21178

CONTROL-SWITCH

21178-1001

1

$359.64

In stock

27004

1

$224.43

In stock

27004A

SWITCH-ASSY

27004-5214

1

$961.04

In stock

27005

1

$188.63

In stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,SIDE STAND

27010-1189

1
Out of stock

27010A

SWITCH,BRAKE LAMP

27010-1152

1

$27.22

In stock

27016

1

$120.41

In stock

27016A

LOCK-ASSY

27016-5062

1

$106.07

In stock

27016B

LOCK-ASSY,SIDE BAG

27016-5063

1

$104.75

In stock

27016C

LOCK-ASSY,TRUNK

27016-5064

1

$525.67

In stock

27016D

LOCK-ASSY,TRUNK

27016-5065

1

$122.32

In stock

27016E

LOCK-ASSY,SIDE BAG

27016-5066

1

$147.24

In stock

27016F

LOCK-ASSY,HELMET

27016-5067

1

$97.30

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1055

1
Out of stock

32059

BRACKET-SWITCH

32059-1027

1

$10.61

In stock

32074

1

$10.80

In stock

92001

1

$10.69

In stock

92001A

BOLT,SOCKET,5X80

92001-1978

1

$2.95

In stock

92001B

BOLT,SOCKET,4X16

92001-1996

1

$3.51

In stock

92009

SCREW,5X12

92009-1401

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92027

COLLAR

92027-194

1

$4.37

In stock

92033

1

$5.53

In stock

92033A

1

$4.12

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92081

SPRING,BRAKE SWITCH

92081-1565

1

$7.47

In stock

120

BOLT-SOCKET,8X22

120T0822

1
Out of stock

130B

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130C

BOLT-FLANGED,6X20

130D0620

1
Out of stock

322

NUT-CAP

322C0500

1
Out of stock

461

WASHER-SPRING

461L0800

1
Out of stock
