1988 Kawasaki Voyager Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

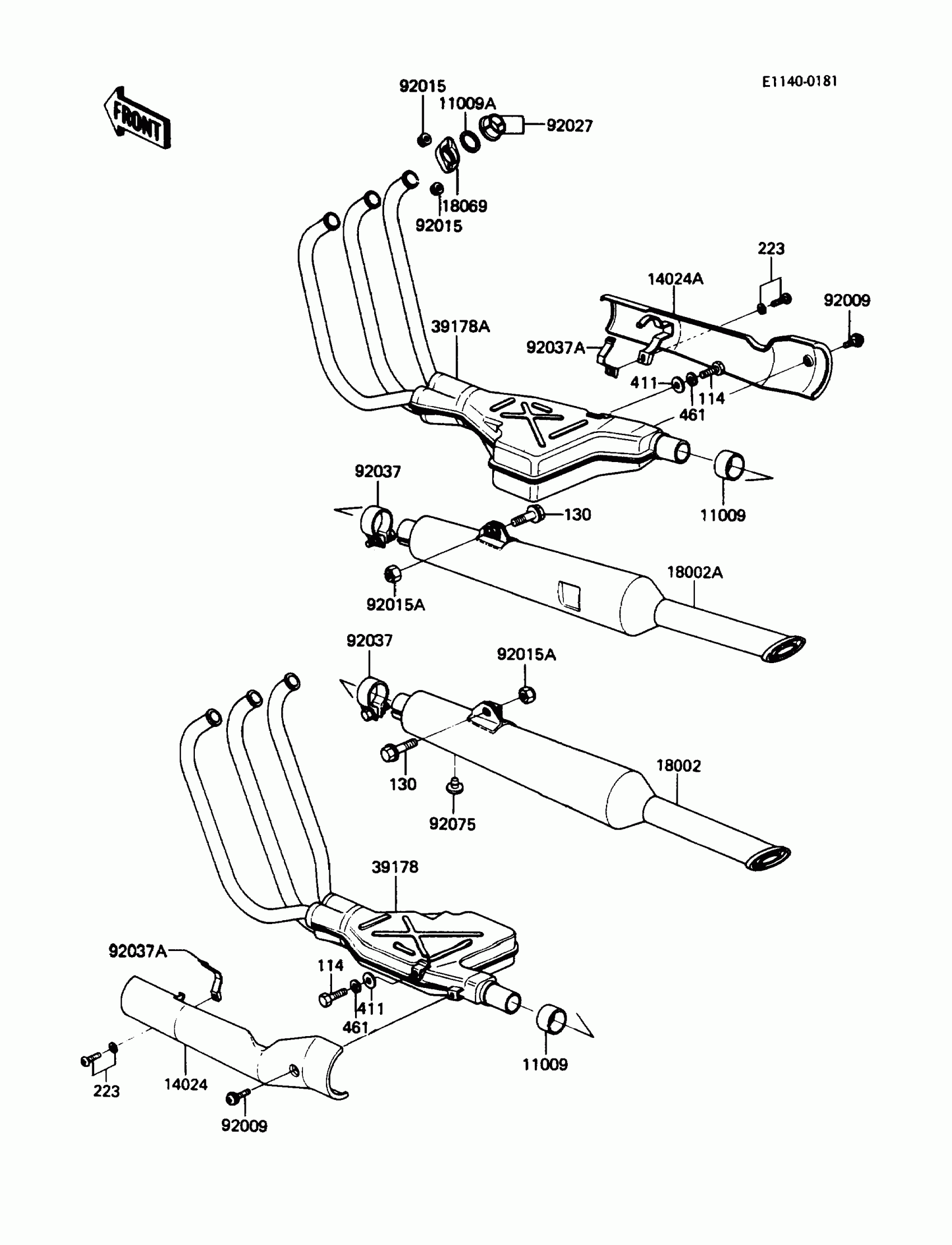

1988 Kawasaki Voyager Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1480

1
Out of stock

11009A

1

$6.55

In stock

14024

COVER,MUFFLER,LH

14025-1824

1
Out of stock

14024A

COVER,MUFFLER,RH

14025-1825

1
Out of stock

18002

1

$593.83

In stock

18002A

1

$593.83

In stock

18069

HOLDER-EXHAUST PIPE

18069-1010

1
Out of stock

39178

1

$622.88

In stock

39178A

1

$619.74

In stock

92009

SCREW,6X10,W/WASHER

92009-1098

1
Out of stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92015A

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92027

COLLAR,L=14.5

92027-1142

1

$3.97

In stock

92037

CLAMP,POWER CHAMBER

92037-1228

1

$18.63

In stock

92037A

CLAMP,MUFFLER COVER

92037-1465

1
Out of stock

92075

DAMPER

92075-015

1

$3.97

In stock

114

BOLT-SMALL,8X25

114N0825

1
Out of stock

130

BOLT-FLANGED,10X30

130J1030

1
Out of stock

223

SCREW-PAN-WS-CROS

223X0630

1
Out of stock

411

WASHER-PLAIN,8MM

411D0800

1

$2.49

In stock

461

1

$0.66

In stock
