1986 Kawasaki Voyager Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

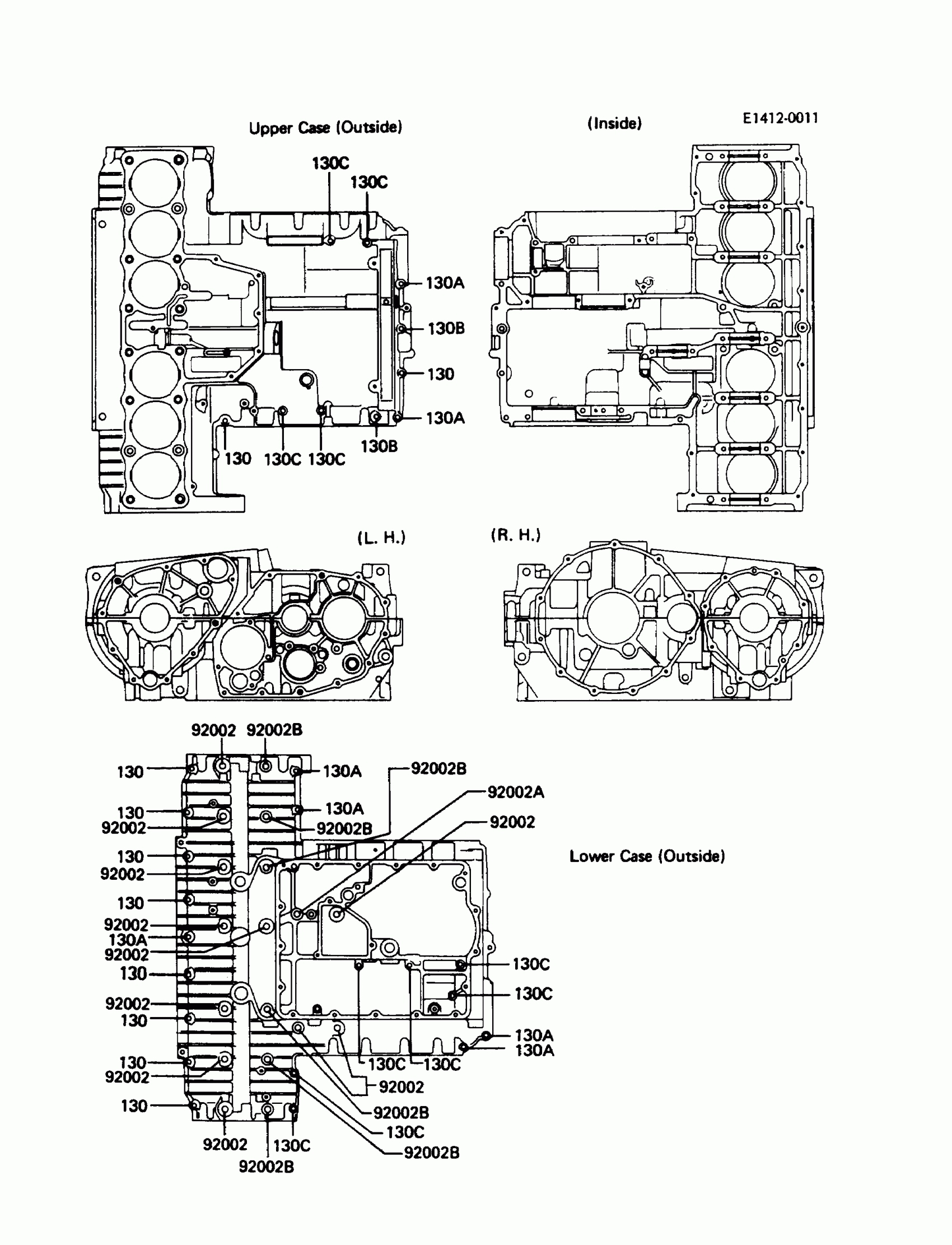

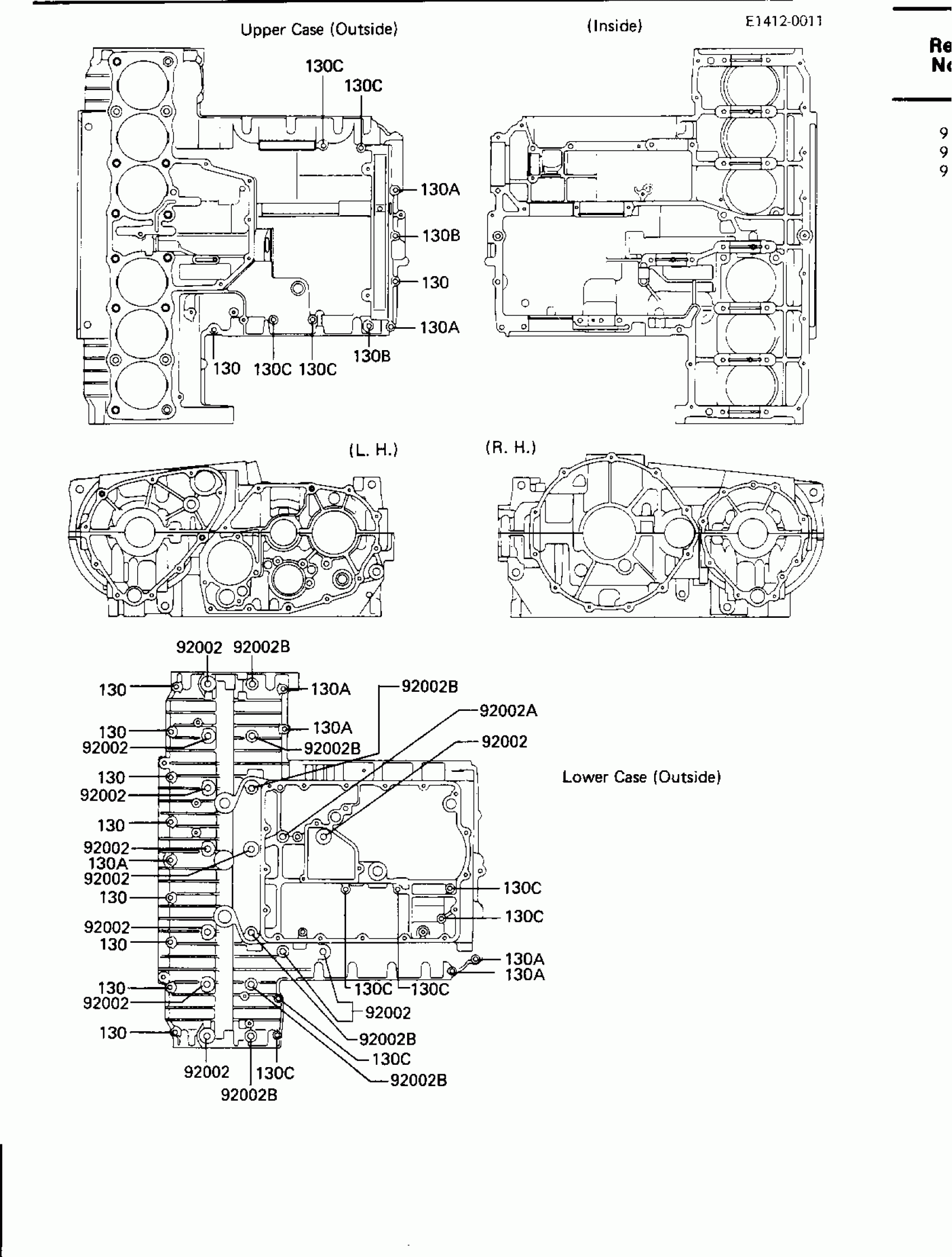

1986 Kawasaki Voyager Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,8X95

92002-1077

1

$10.63

In stock

92002A

BOLT,8X130

92002-1272

1

$10.53

In stock

92002B

BOLT,8X105

92002-1274

1

$10.02

In stock

130

BOLT-FLANGED

130Y0640

1
Out of stock

130A

BOLT-FLANGED

130Y0650

1
Out of stock

130B

BOLT-FLANGED

130Y0665

1
Out of stock

130C

BOLT-FLANGED

130Y0685

1
Out of stock
