1986 Kawasaki Voyager Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

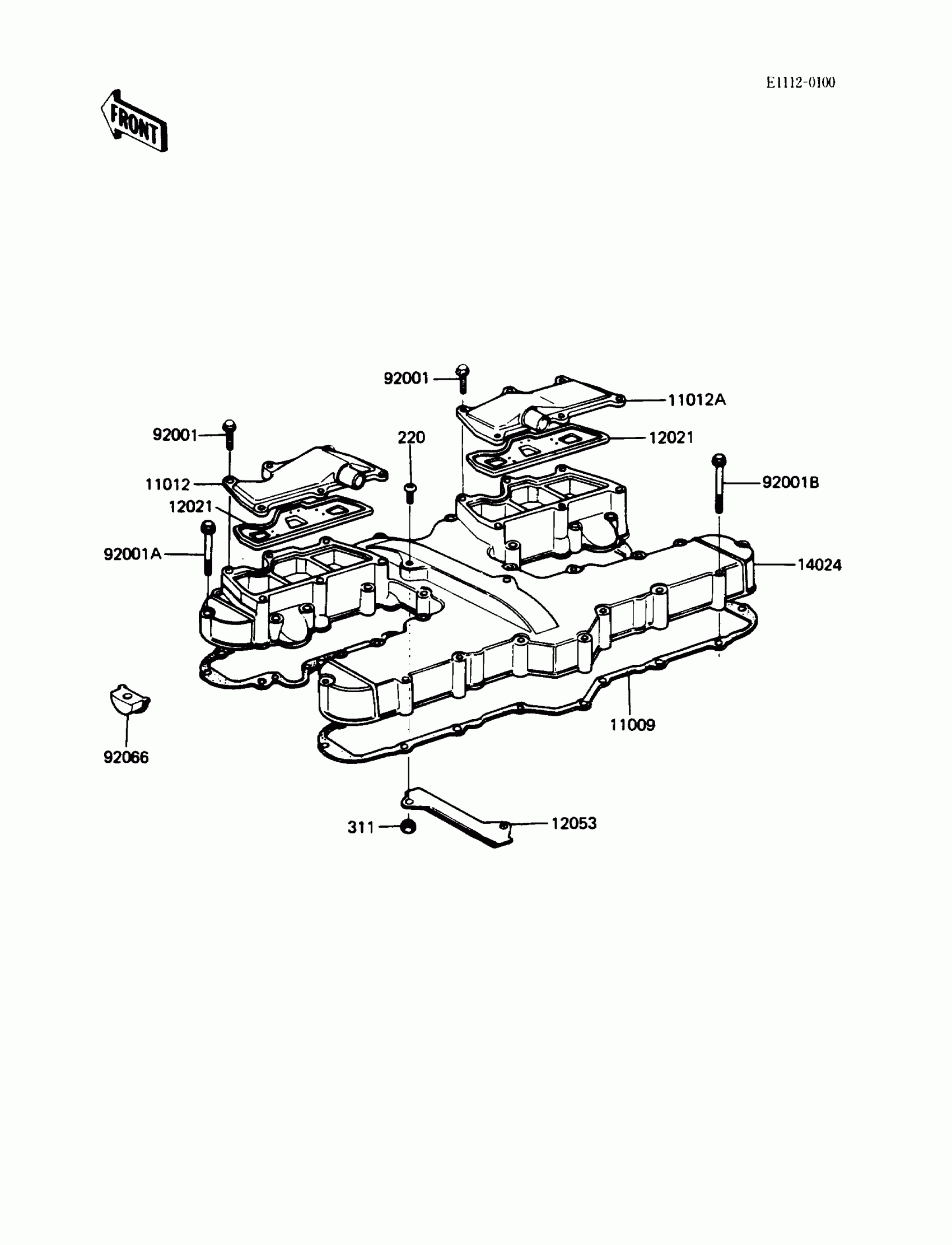

1986 Kawasaki Voyager Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CYLINDER HEAD COVER

11009-1095

1
Out of stock

11009A

GASKET (Canada)

11009-1170

1
Out of stock

11012

CAP,REED VALVE,LH

11012-1057

1
Out of stock

11012A

CAP,REED VALVE,RH

11012-1058

1
Out of stock

11012B

CAP,L.H (Canada)

11012-1107

1
Out of stock

11012C

CAP,R.H (Canada)

11012-1108

1
Out of stock

12021

VALVE-ASSY-REED

12021-1004

1
Out of stock

12053

GUIDE-CHAIN,CAM

12053-1026

1
Out of stock

13169

PLATE (Canada)

13169-1221

1
Out of stock

14024

COVER,CYLINDER HEAD

14025-1639

1
Out of stock

92001

BOLT,FLANGED,6X20

92001-1100

1
Out of stock

92001A

BOLT,FLANGED,6X52

92001-1192

1
Out of stock

92001B

BOLT,FLANGED,6X45

92003-092

1
Out of stock

92066

PLUG,CAMSHAFT,

92066-1030

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock
