1988 Kawasaki Voyager Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

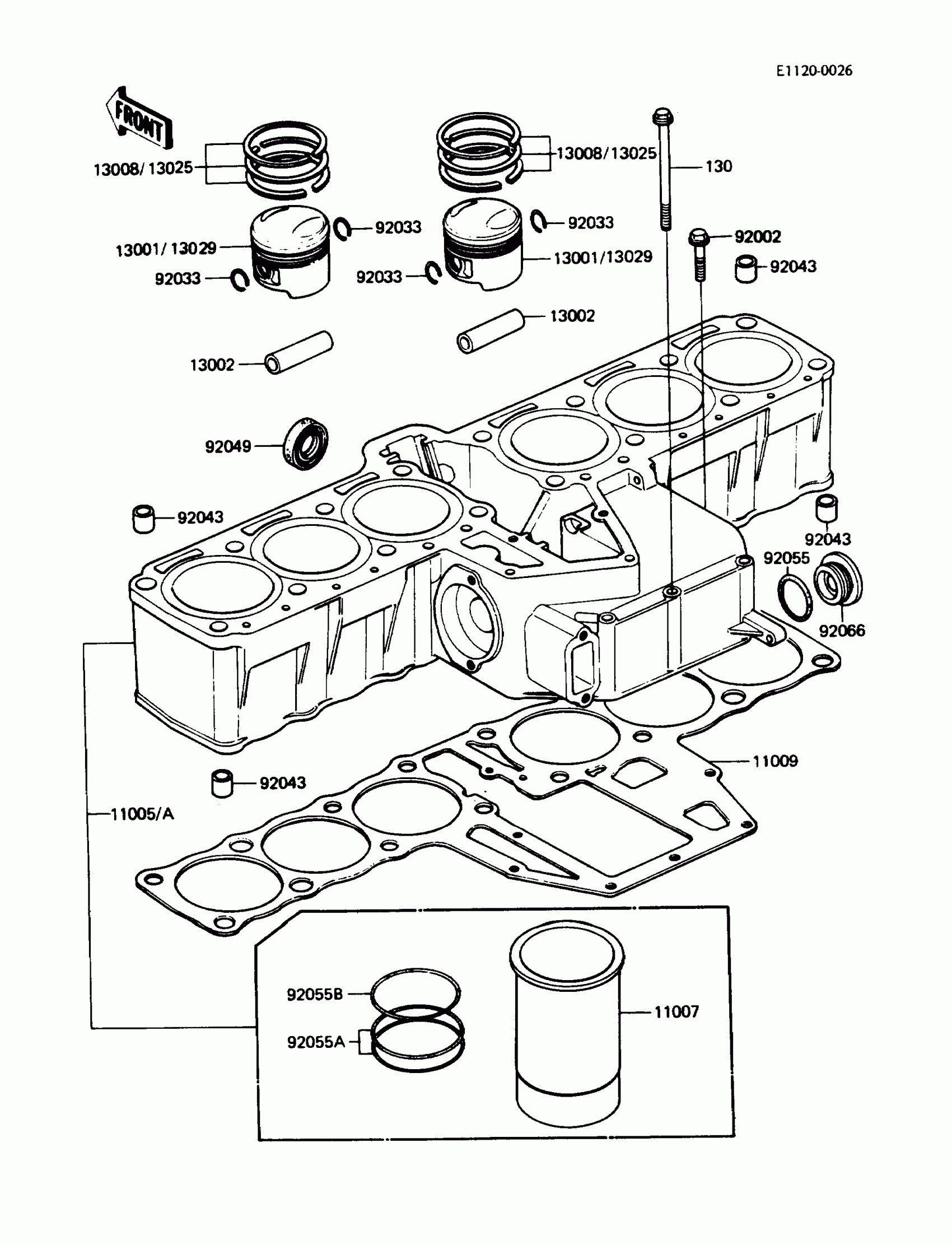

1988 Kawasaki Voyager Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1403

1
Out of stock

11005A

CYLINDER-ENGINE

11005-1405

1
Out of stock

11007

LINER-CYLINDER

11007-1006

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-1101

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1120

1
Out of stock

13002

PIN-PISTON

13002-032

1
Out of stock

13008

RING-SET-PISTON,STD

13008-5059

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-5025

1
Out of stock

13029

PISTON-ENGINE L,O/S,0.50

13029-1053

1
Out of stock

92002

BOLT,6X28

92002-1105

1
Out of stock

92033

RING-SNAP

92036-005

1
Out of stock

92043

PIN,DOWEL,11X14X12.5

92042-028

1
Out of stock

92049

SEAL-OIL,TC17317

92049-1028

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92055A

RING-O,67MM

92055-1032

1
Out of stock

92055B

RING-O,67.5MM

92055-1035

1
Out of stock

92066

PLUG,30X8

92067-024

1
Out of stock

130

BOLT-FLANGED

130Y0685

1
Out of stock
