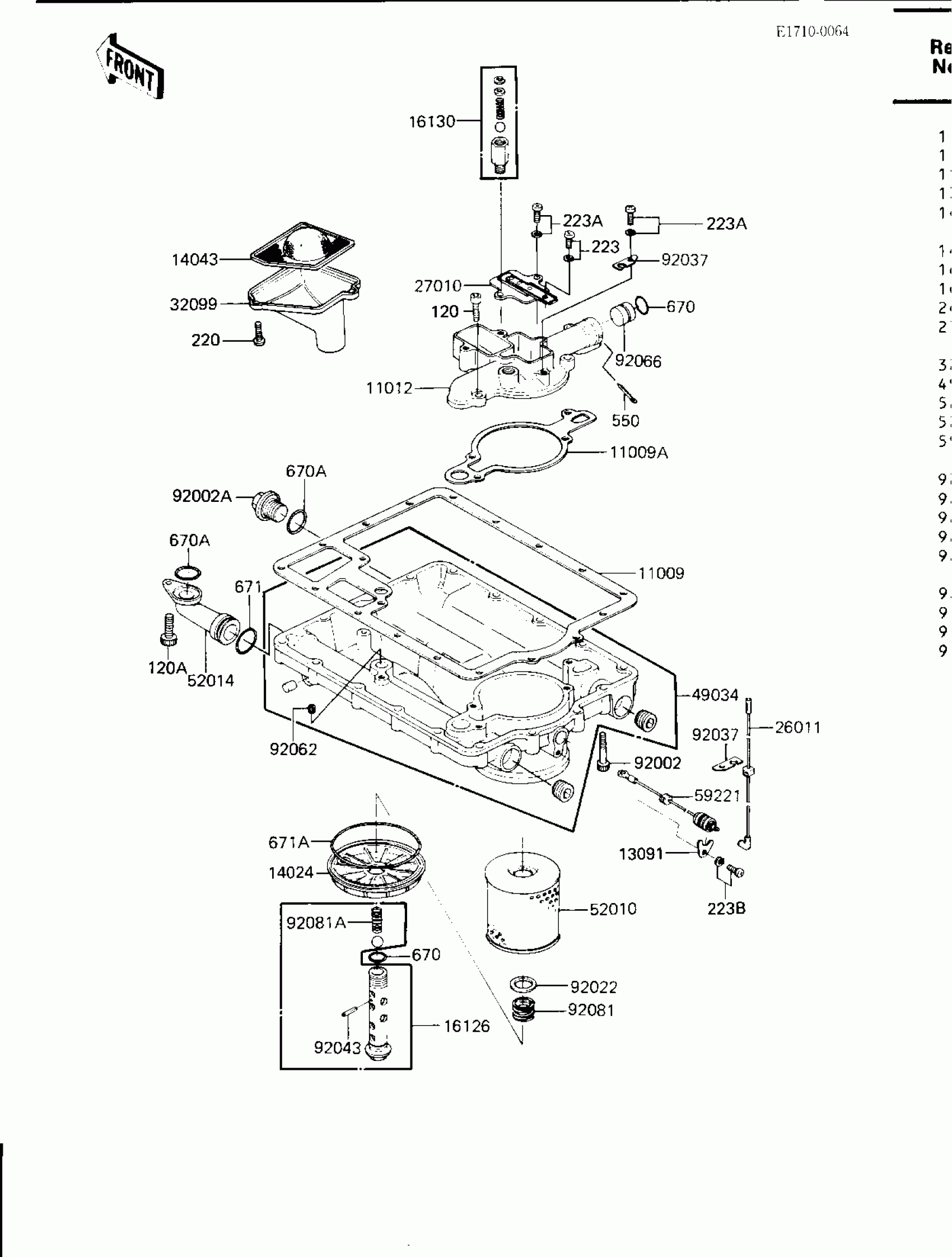

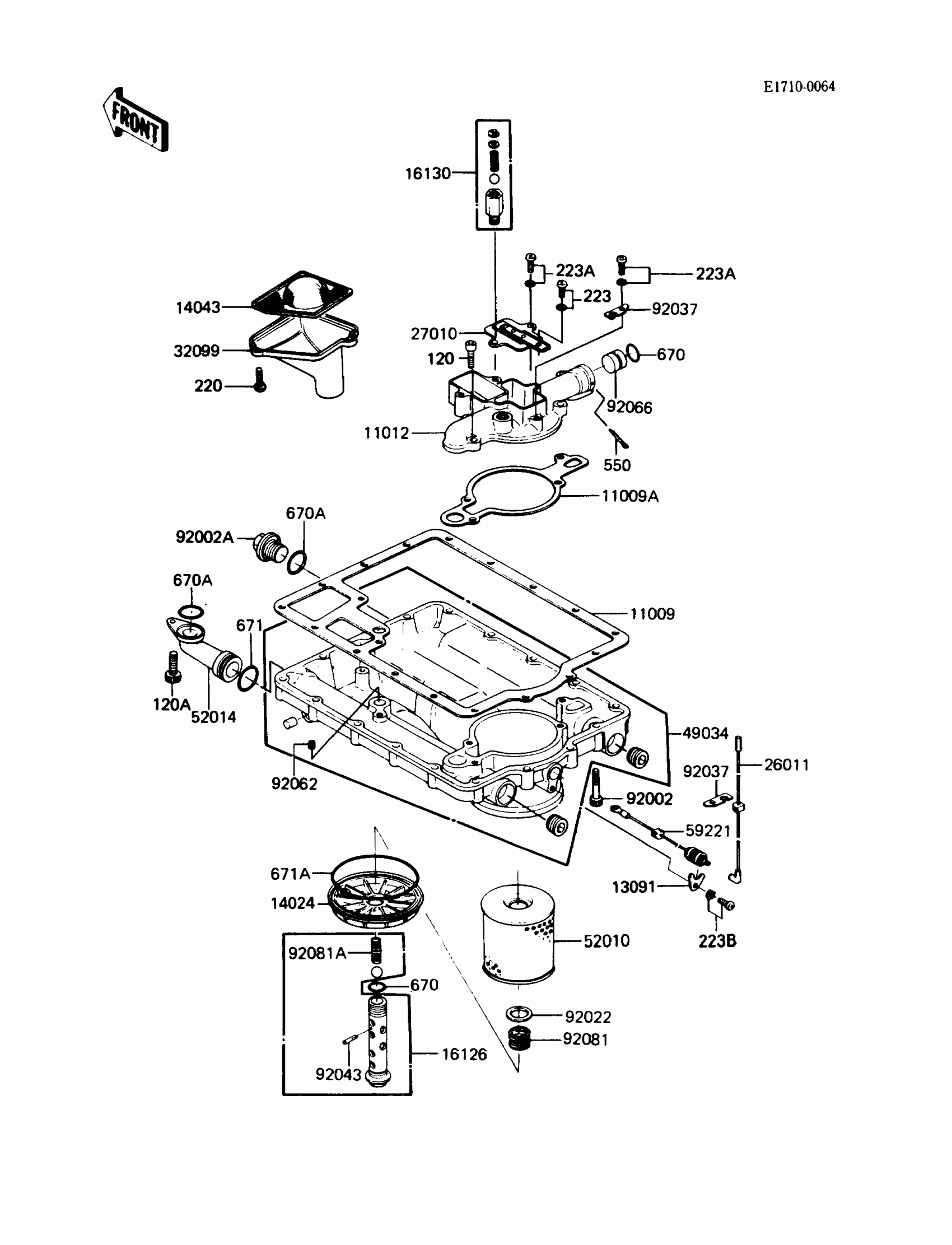

Kawasaki Voyager OIL PAN/OIL FILTER Diagram

#

Description
Price

11009

GASKET,OIL PAN

11009-1093

Unavailable

11009A

GASKET,OIL FILTER CAP

11009-1198

Unavailable

11012

CAP,OIL FILTER

11012-1148

Unavailable

13091

HOLDER,CONNECTOR

13091-1080

Unavailable

14024

COVER,OIL FILTER

14025-1170

Unavailable

14043

FILTER,OIL

14043-1008

Unavailable

16126

VALVE,OIL FILTER

16126-1006

$48.75

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

26011

WIRE-LEAD,OIL SWITCH

26011-1262

$10.03

27010

SWITCH,OIL LEVEL

27010-1038

Unavailable

32099

CASE,OIL FILTER

32099-1017

$40.39

49034

PAN-OIL

49034-5005

$334.38

52010

ELEMENT-OIL FILTER

16099-002

$12.29

52014

ELBOW,OIL PASSAGE

52014-1002

$45.81

59221

CONNECTOR-CORD,OIL SWITCH

59221-1002

$95.27

92002

BOLT,6X35

92002-1270

$4.59

92002A

BOLT,OIL DRAIN

92002-1276

$29.40

92022

WASHER,20.5X30X1

92022-1012

$3.32

92037

CLAMP,LEAD WIRE

92037-1211

$3.32

92043

PIN,SPRING,2X20

92043-111

$5.46

92062

NOZZLE,BLACK

92062-011

$8.37

92066

PLUG,OIL GALLARY,16X3.2

92066-1023

$5.54

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-133

Unavailable

120

BOLT-SOCKET,6X35

120P0635

Unavailable

120A

BOLT-SOCKET,6X20

120Z0620

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

223

SCREW-PAN-WS-CROS

223B0406

Unavailable

223A

SCREW-PAN-WS-CROS

223B0614

Unavailable

223B

SCREW-PAN-WS-CROS

223D0614

$3.95

550

PIN-COTTER,2.0X40

550D2040

$1.47

670

O RING,16MM

670B2016

$1.04

670A

O RING,22MM

670B2022

$3.57

671

O RING,25MM

671B2525

$3.81

671A

O RING,95MM

671B2595

$5.58
