1986 Kawasaki Voyager Cylinder Head Diagram

← All diagrams

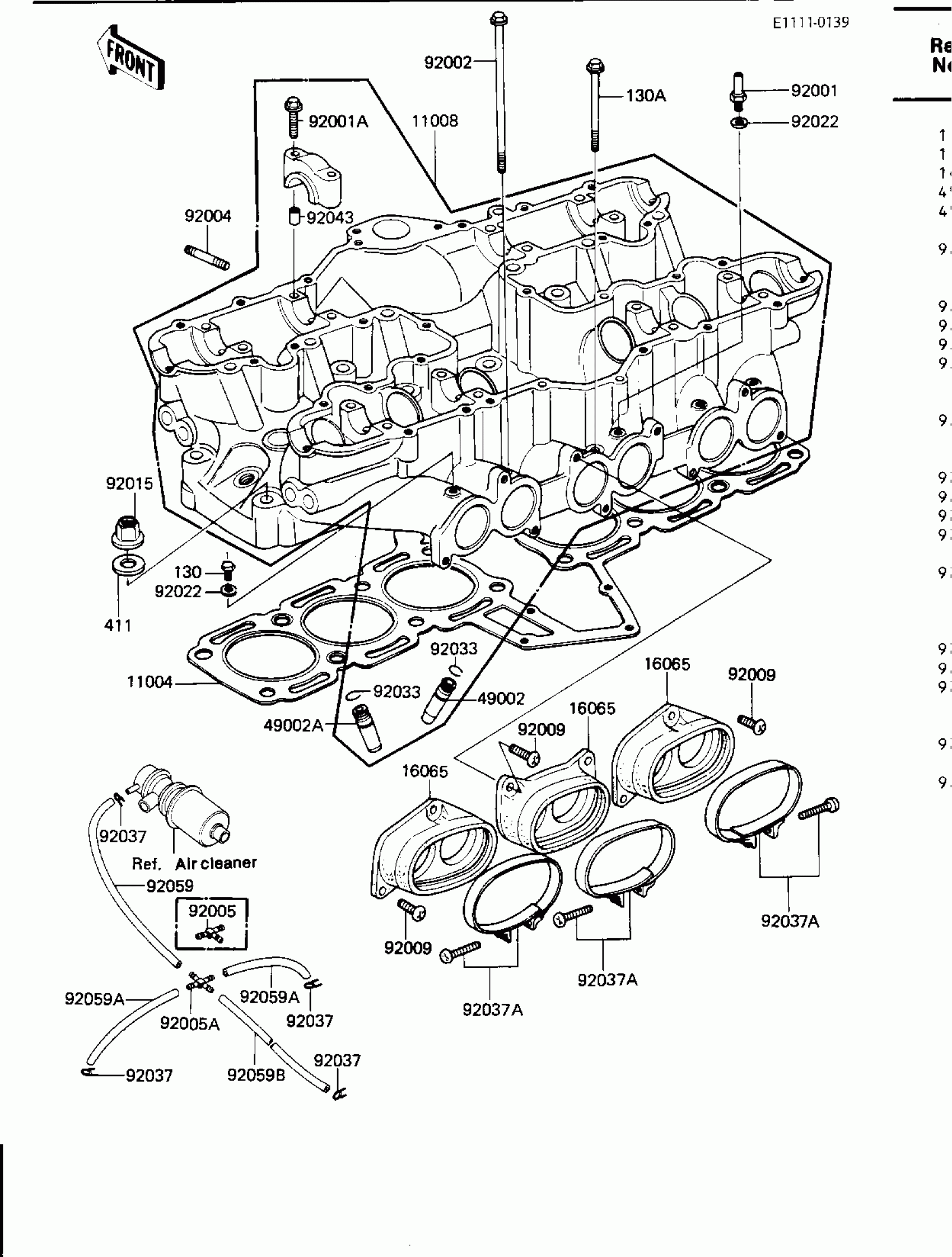

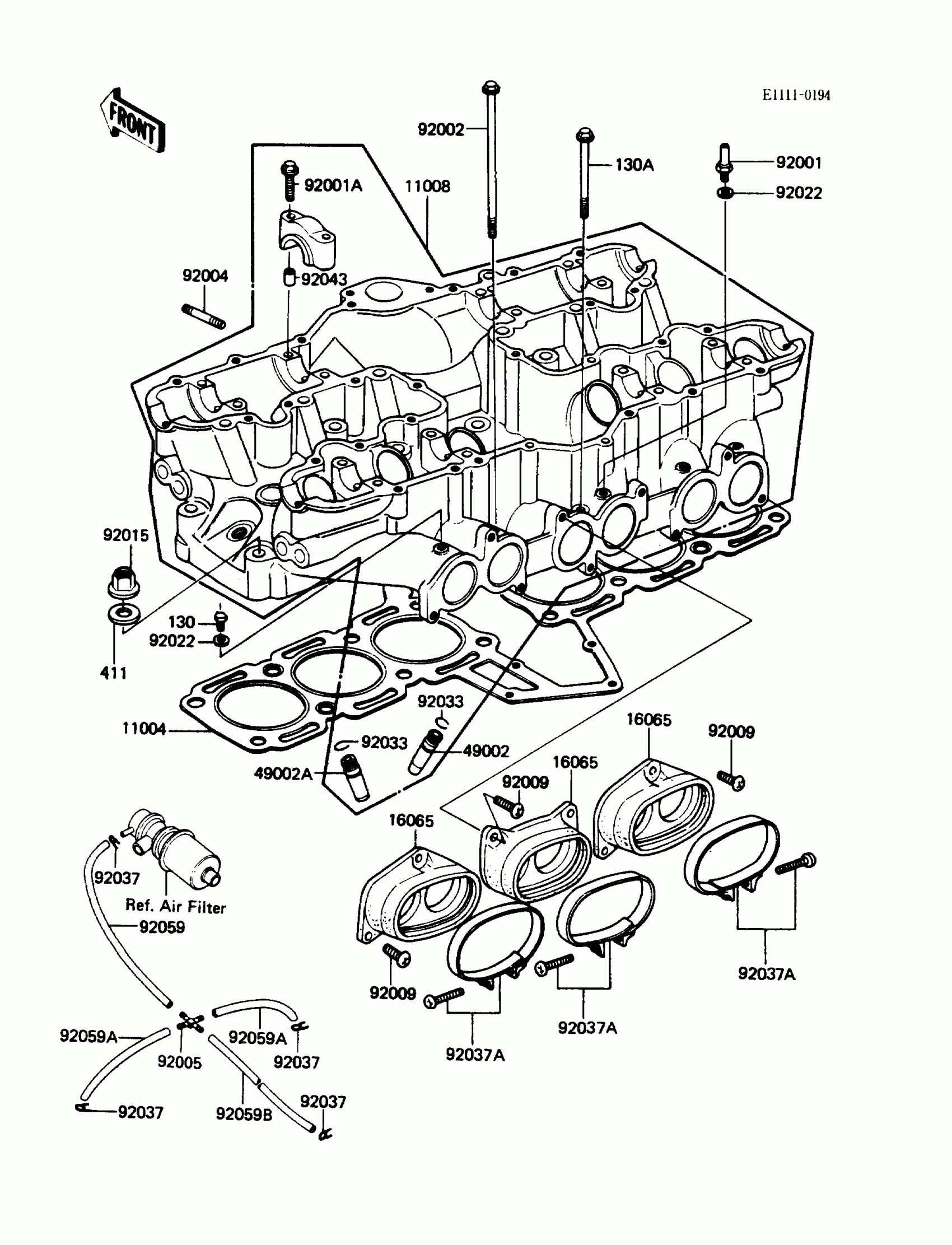

Find the part on the Cylinder Head diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD,CYLINDER

11004-1014

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1072

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1016

1
Out of stock

49002

GUIDE-VALVE,INTAKE

12013-009

—

$24.29

In stock

49002A

GUIDE-VALVE,EXHAUST

49002-1002

—
Out of stock

92001

BOLT,VACUUM

92001-1143

1
Out of stock

92001A

BOLT,FLANGED,6X45

92003-092

1
Out of stock

92002

BOLT,6X161

92002-1273

1

$9.10

In stock

92004

STUD,6X30

92004-1128

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92005A

FITTING,TUBE,X-TYPE

92005-1051

1
Out of stock

92009

SCREW,6X16

92009-1334

1
Out of stock

92015

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

92022

1

$3.13

In stock

92033

1

$0.53

In stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP,CARBURETOR HOLDER

92037-1119

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92059

TUBE,VACUUM,LONG

92059-1162

1

$15.01

In stock

92059A

TUBE,4X9X100

92059-1058

1

$15.01

In stock

92059B

TUBE,4X9X340

92059-1262

1

$9.85

In stock

130

BOLT-FLANGED,6X8

130N0608

1
Out of stock

130A

BOLT-FLANGED

130Y0665

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock
