1988 Kawasaki Voyager Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

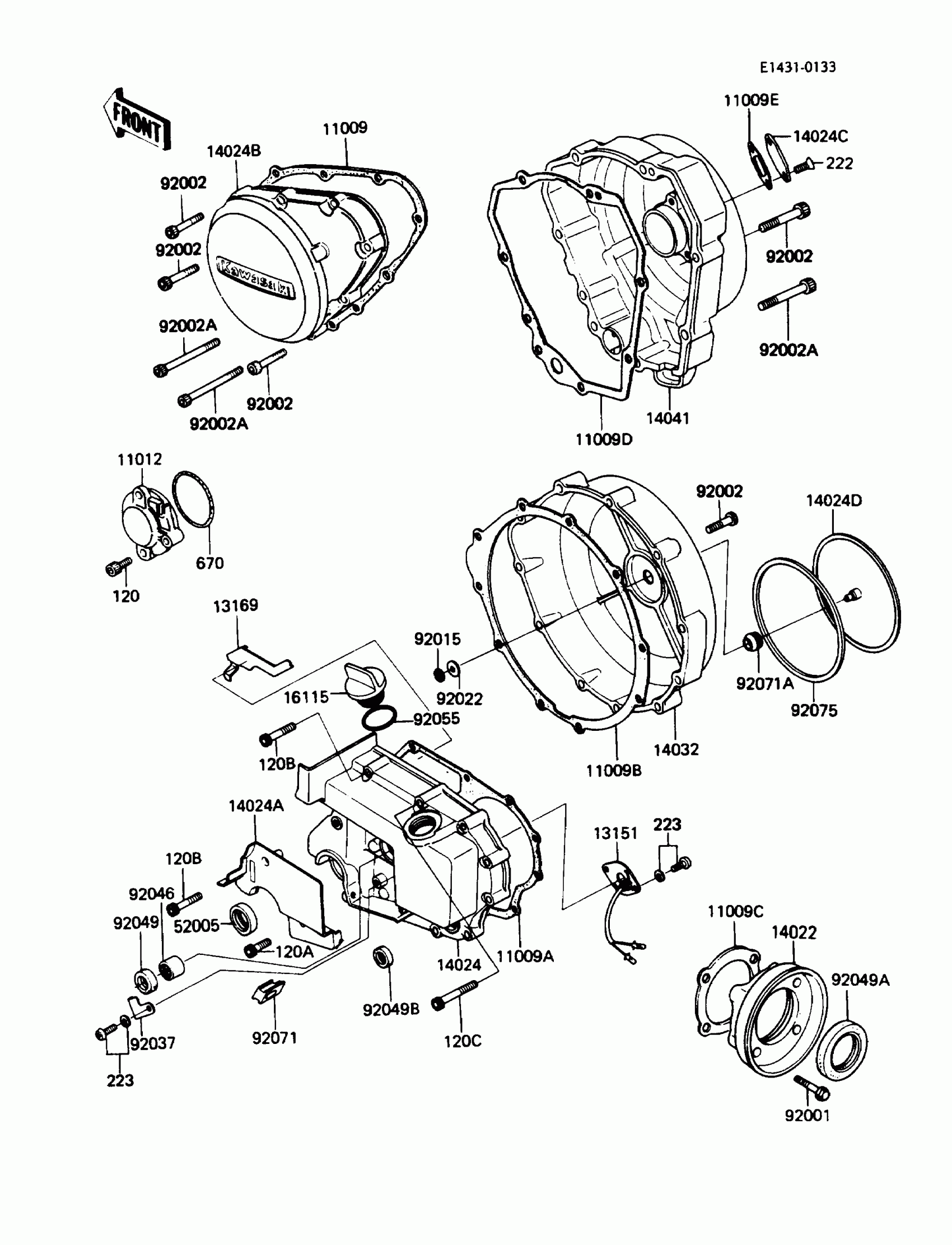

1988 Kawasaki Voyager Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,ENGINE COVER,LH

11009-1090

1
Out of stock

11009A

GASKET,MISSION COVER

11009-1091

1
Out of stock

11009B

GASKET,CLUTCH COVER

11009-1092

1
Out of stock

11009C

GASKET,BEARING CAP

11009-1159

1

$11.02

In stock

11009D

GASKET,GENERATOR COVER

11009-1269

1
Out of stock

11009E

GASKET,OIL INSPECTION COVER

11009-1270

1
Out of stock

11012

CAP,TIMING SPROCKET

11012-1060

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1013

1
Out of stock

13169

PLATE,BAFFLE,BREATHER

13169-1131

1
Out of stock

14022

CAP-BEARING,OUTLET SHAFT

14022-1005

1
Out of stock

14024

COVER,TRANSMISSION,SILVER #10

14025-1617

1
Out of stock

14024A

COVER,RELEASE

14025-1618

1
Out of stock

14024B

COVER,LH,GENERATOR

14025-1703

1
Out of stock

14024C

COVER,OIL INSPECTION

14025-1704

1
Out of stock

14024D

COVER,CLUTCH COVER

14025-1814

1
Out of stock

14032

COVER-CLUTCH

14032-1111

1
Out of stock

14041

COVER-COMP,GENERATOR

14041-1024

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1017

1
Out of stock

92001

BOLT,FLANGED,6X28

92003-202

1
Out of stock

92002

BOLT,6X35

92002-1282

1

$4.59

In stock

92002A

BOLT,6X50

92002-1283

1

$4.59

In stock

92015

NUT,SPEED,5MM

92018-004

1

$3.92

In stock

92022

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

92037

CLAMP,CABLE

92037-1152

1

$3.75

In stock

92046

1

$20.10

In stock

92049

SEAL-OIL,TC14244.8

92049-1037

1
Out of stock

92049A

SEAL-OIL,TC35527

92049-1038

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92071

GROMMET

92071-1051

1

$8.37

In stock

92071A

1

$5.32

In stock

92075

DAMPER,CLUTCH COVER

92075-1594

1

$29.19

In stock

120

BOLT-SOCKET

120Z0614

1
Out of stock

120A

BOLT-SOCKET,6X16

120Z0616

1
Out of stock

120B

BOLT-SOCKET

120Z0635

1
Out of stock

120C

BOLT-SOCKET

120Z0645

1
Out of stock

222

SCREW-CSK-RD-CROS

222E0510

1
Out of stock

223

1

$0.93

In stock

670

O RING,45MM

670B3045

1
Out of stock
