1973 Yamaha TX500 (TX500) Steering Diagram

← All diagrams

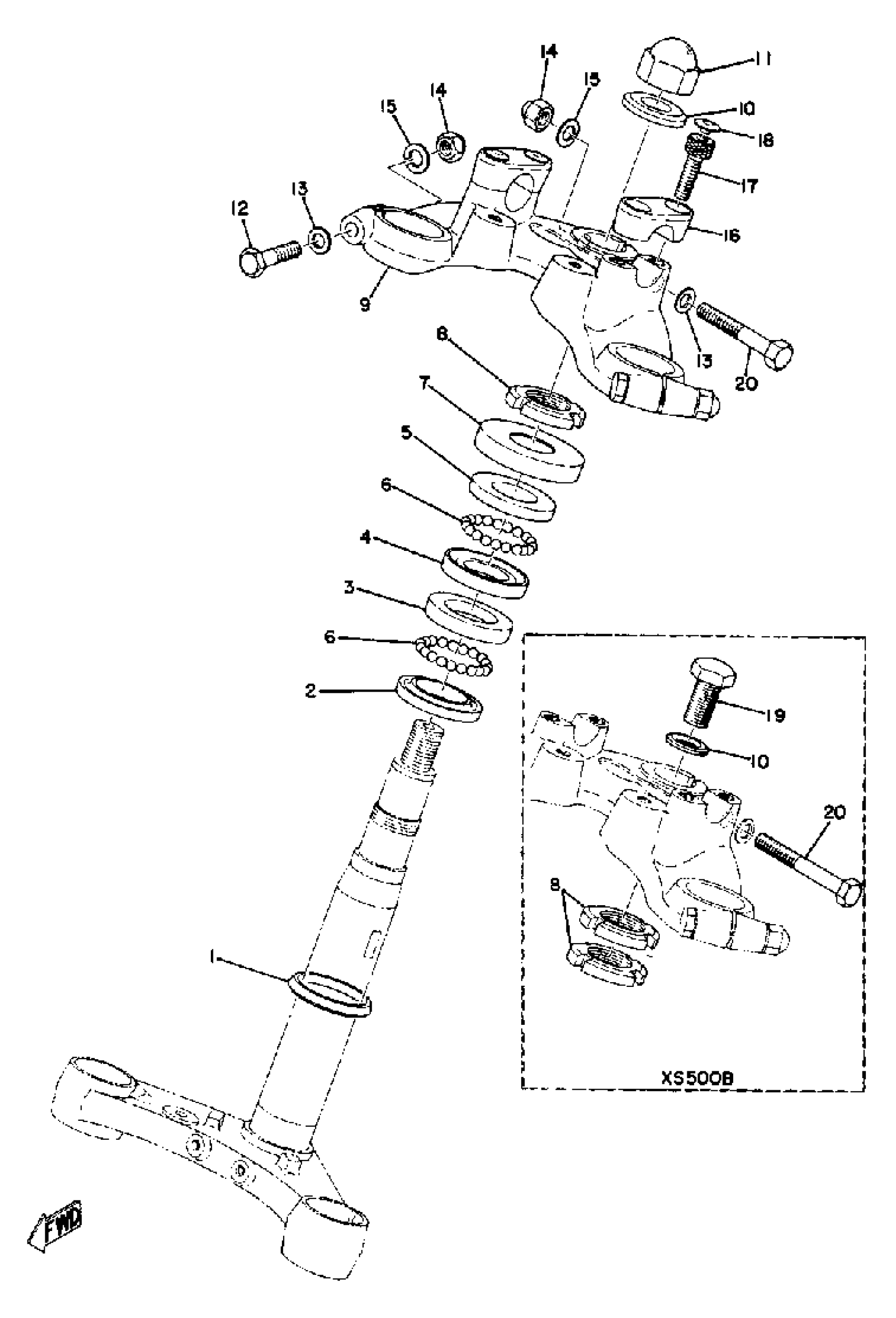

Find the part on the Steering diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

256-23411-00-00

1
Out of stock

3

RACE, BALL2

256-23412-00-00

—

$35.19

In stock

4

RACE, BALL3

256-23413-00-00

—

$35.19

In stock

5

RACE, BALL4

256-23414-00-00

—

$51.94

In stock

6

BALL

93501-04011-00

1
Out of stock

7

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(371-23435-01-98)

1
Out of stock

9

CROWN, HANDLE

(371-23435-01-98)

1
Out of stock

10

WASHER, SPEC''L SHAP (341-23443-00)

90209-14023-00

1
Out of stock

10

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

11

NUT, CROWN

(90176-16010-00)

1
Out of stock

12

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

13

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

14

. NUT

95380-08700-00

1

$3.07

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

16

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

17

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

18

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

19

BOLT (2A2)

90105-14102-00

—

$5.14

In stock

20

BOLT

97021-08065-00

1
Out of stock

20

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock
