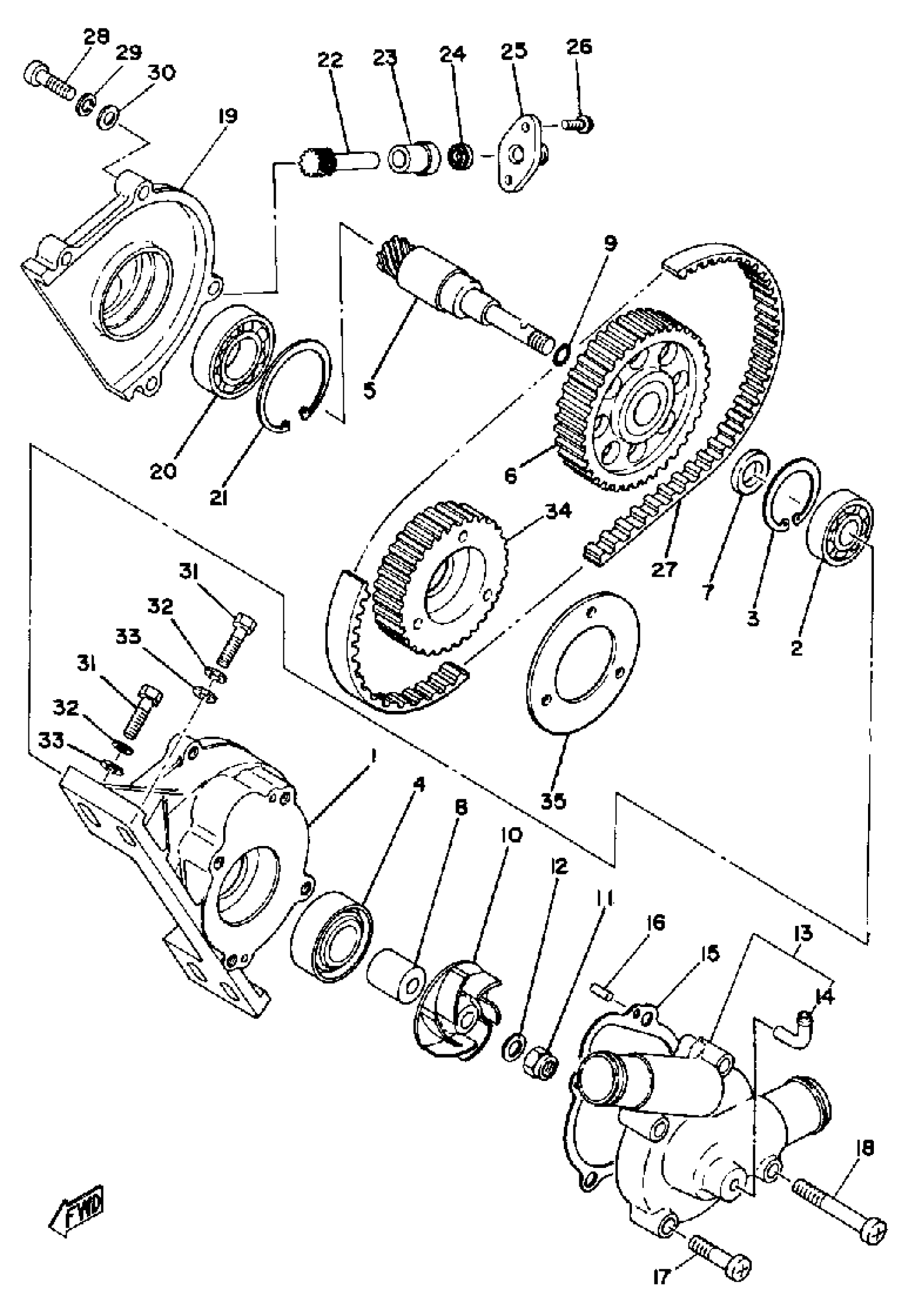

Find the part on the Water Pump diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, WATER PUMP

(8A7-12421-00-00)

1
Out of stock

2

BEARING(82M)

93306-20117-00

1
Out of stock

3

CIRCLIP(46T)

99009-32500-00

1

$6.22

In stock

4

OIL SEAL, SW-TYPE

93103-20101-00

1
Out of stock

5

SHAFT, IMPELLER

8J0-12458-00-00

1
Out of stock

6

PULLEY 2

(8H0-12442-00-00)

1
Out of stock

7

COLLAR

90387-12718-00

1
Out of stock

8

COLLAR

90387-08517-00

1
Out of stock

9

O-RING

93210-08003-00

1

$6.86

In stock

10

IMPELLER, WATER PMP

8A7-12451-00-00

1
Out of stock

11

NUT, SELF-LOCKING

90185-08018-00

1

$3.96

In stock

12

WASHER (8A7)

90201-08452-00

1

$4.06

In stock

13

COVER, HOUSING

(8A7-W1241-01-00)

1
Out of stock

14

PIPE, BREATHER

8A7-12463-00-00

1
Out of stock

15

GASKET,HSNG CVR 1

8A7-12427-09-00

1
Out of stock

16

PIN,DOWEL (603)

93604-10011-00

—

$5.10

In stock

17

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

18

SCREW PAN HEAD

98580-06550-00

—

$6.17

In stock

19

HOUSING, TACH GEAR

(8A7-17811-00-00)

1
Out of stock

20

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

21

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

22

GEAR, DRIVEN

8A7-17841-00-00

1
Out of stock

23

BUSH, DRVN GR OUTER

8A7-17843-00-00

1
Out of stock

24

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

25

CAP, HOUSING

821-17819-00-00

1
Out of stock

26

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

27

BELT 1

8H0-12444-01-00

1
Out of stock

28

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock

34

PULLEY 1

8J0-12441-00-00

1
Out of stock

35

WASHER

8J0-12456-00-00

1
Out of stock
