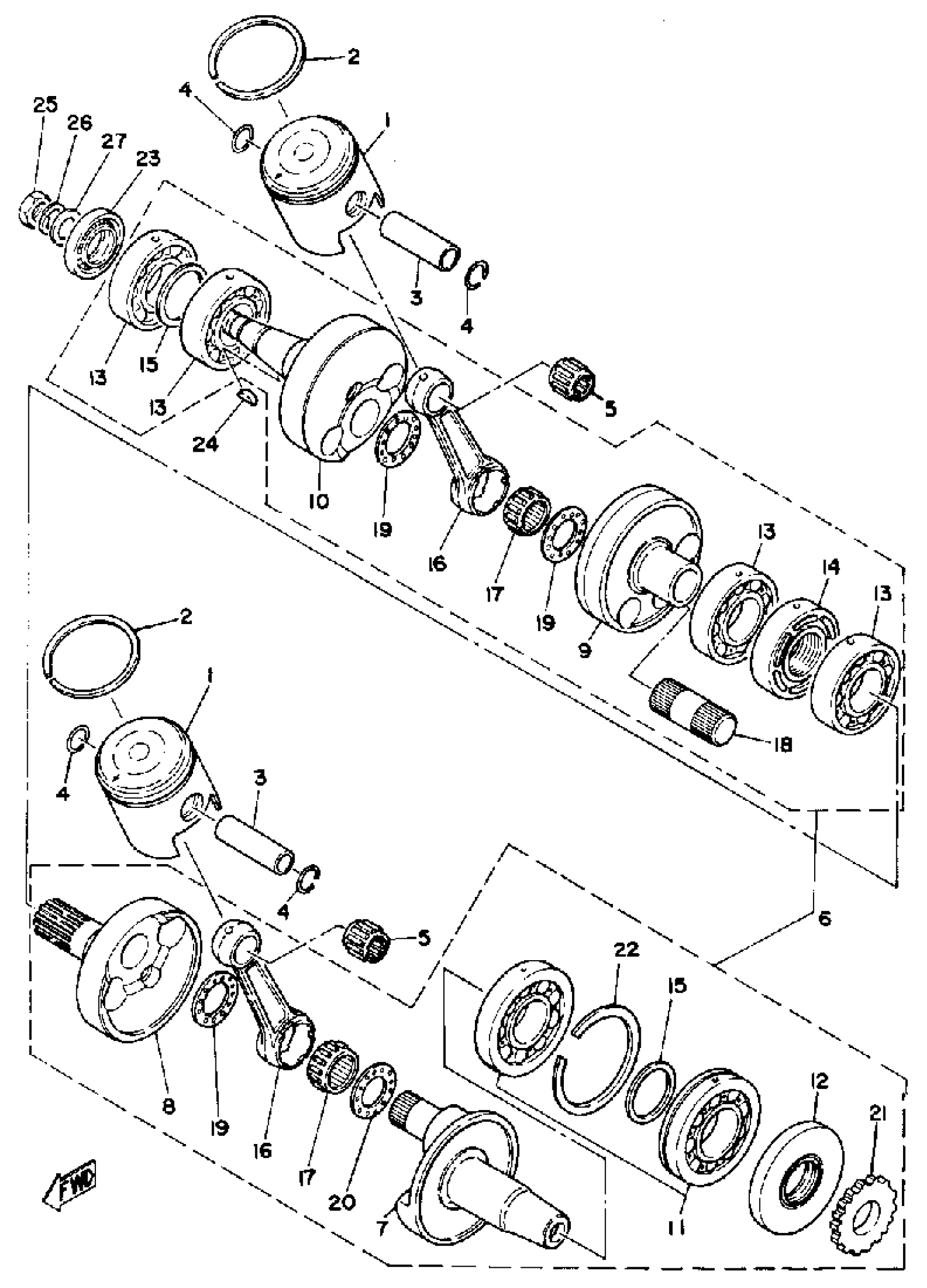

Find the part on the Crank Piston diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD

8J0-11631-00-93

1
Out of stock

2

PISTON RINGSET STD

8G9-11601-00-00

1
Out of stock

3

PIN, PISTON

8H8-11633-00-00

1

$30.72

In stock

4

CIRCLIP (8H0)

93450-21053-00

1

$3.43

In stock

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

1

$40.32

In stock

6

CRANKSHAFT ASSEMBLY

8K2-11400-00-00

1
Out of stock

7

CRANK 1

(8K2-11412-00-00)

1
Out of stock

8

. CRANK 2

8H0-11422-00-00

1
Out of stock

9

. CRANK 3

8H0-11432-00-00

1
Out of stock

10

. CRANK 4

8G9-11442-00-00

1
Out of stock

11

. BEARING ASSEMBLY 1

8H0-11415-01-00

1
Out of stock

12

OIL SEAL (878).

93103-32095-00

1

$30.09

In stock

13

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

14

SEAL, LABYRINTH 1

(8G9-11515-01-00)

1
Out of stock

15

WASHER (8H0)

90201-34683-00

1
Out of stock

16

. ROD, CONNECTING

8H0-11651-00-00

1
Out of stock

17

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

—

$110.95

In stock

18

. PIN, CRANK 1

8H8-11681-00-00

1
Out of stock

19

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

20

WASHER, CRANK PIN

8A7-11685-00-00

—

$10.68

In stock

21

GEAR, PUMP DRIVE

8K2-13178-00-00

—

$36.28

In stock

22

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

23

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

24

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

25

NUT

90170-16425-00

—
Out of stock

26

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

27

WASHER, PLATE (32N)

90201-163G6-00

—

$6.98

In stock
