1980 Yamaha SRX440D Crankcase Diagram

← All diagrams

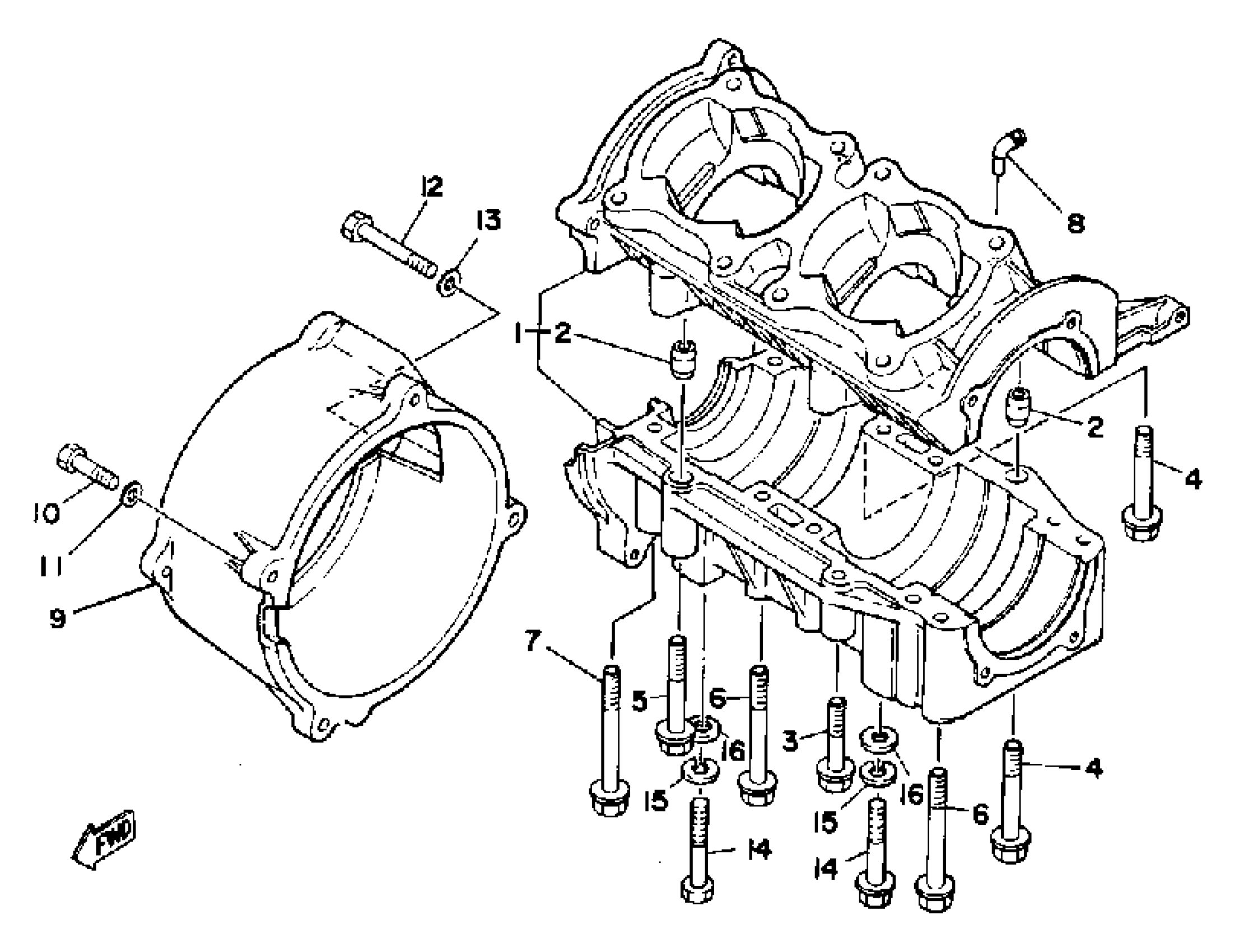

Find the part on the Crankcase diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(8K2-15100-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

4

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

5

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

6

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

7

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

8

PIPE, JOINT

8E4-24461-00-00

1
Out of stock

9

COVER, CRANKCASE R

8F2-15421-00-00

1
Out of stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

BOLT, HEXAGON

97013-06060-00

1

$5.38

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

WASHER, PLATE(8BV)

90201-100S7-00

—

$9.75

In stock
