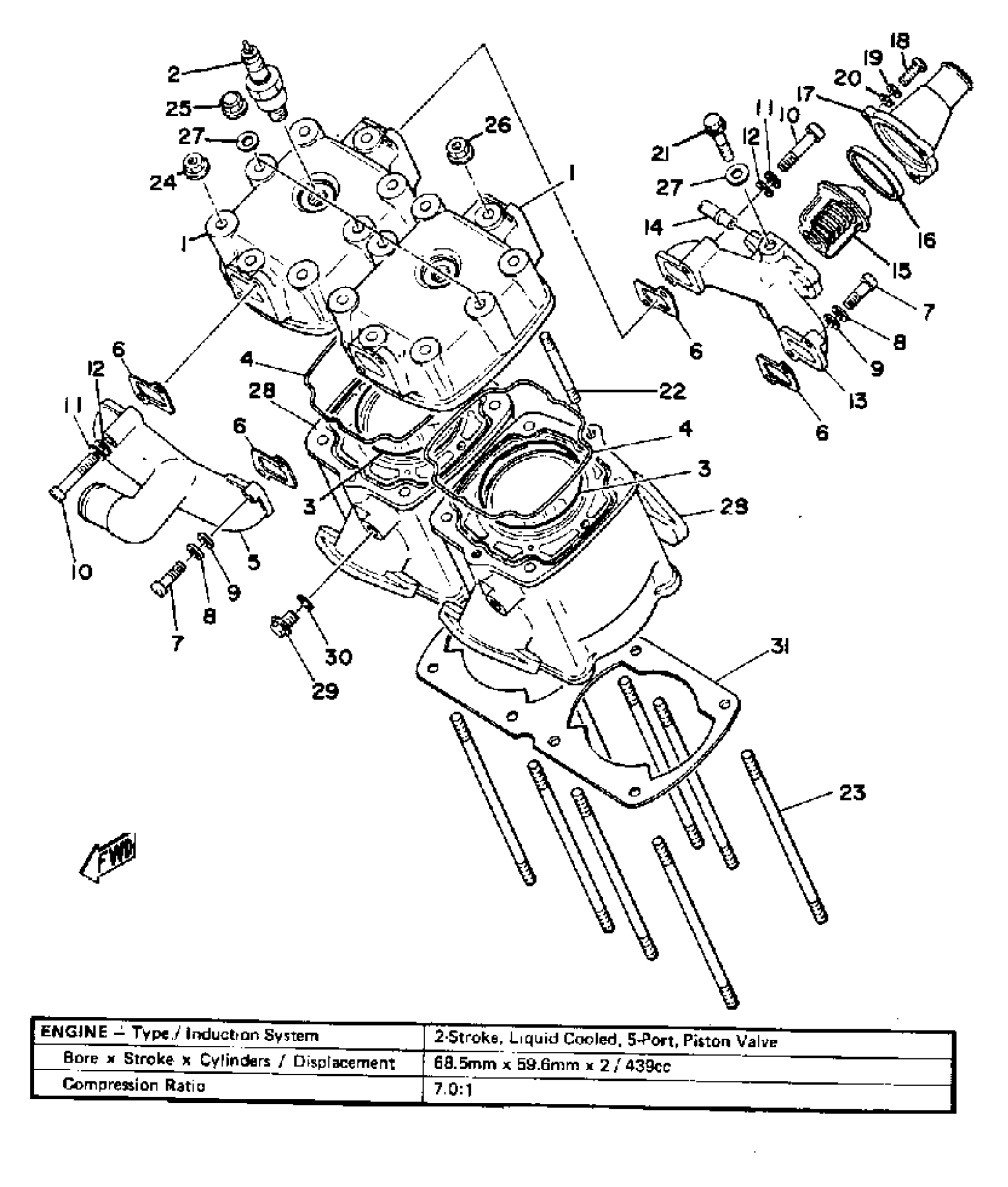

Find the part on the Cylinder diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(8J0-11111-00-00)

1
Out of stock

2

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

1
Out of stock

3

O-RING

93210-78307-00

1
Out of stock

4

GASKET, CYLINDER HEAD 1

8A7-11181-00-00

1
Out of stock

5

JOINT

(8A7-12498-00-00)

1
Out of stock

6

GASKET, MANIFOLD

8A7-13556-09-00

1
Out of stock

7

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

CASE, THERMOSTAT

(8A7-11346-00-00)

1
Out of stock

14

JOINT

8A7-12499-00-00

1
Out of stock

15

THERMOSTAT

8G9-12411-03-00

1
Out of stock

16

SEAL, THERMOSTAT

8A7-12412-01-00

—

$14.25

In stock

17

COVER, THERMOSTAT

8A7-12413-00-00

1
Out of stock

18

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

21

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock

22

BOLT, STUD (8H8)

90116-08302-00

—
Out of stock

23

BOLT, CYLINDER HOLDING 1

8H0-11361-00-00

1
Out of stock

24

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

25

NUT, SPEC''L SHAPE

90179-08287-00

1
Out of stock

26

NUT, FLANGE

95704-08500-00

—
Out of stock

27

WASHER, PLATE

90201-080L7-00

—

$3.42

In stock

28

CYLINDER 1

8G9-11311-01-00

1
Out of stock

29

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

30

WASHER PLATE 341839090000

90201-10128-00

—

$3.42

In stock

31

GASKET, CYLINDER

8H0-11351-09-00

1
Out of stock
