1980 Yamaha SRX440D Shroud Diagram

← All diagrams

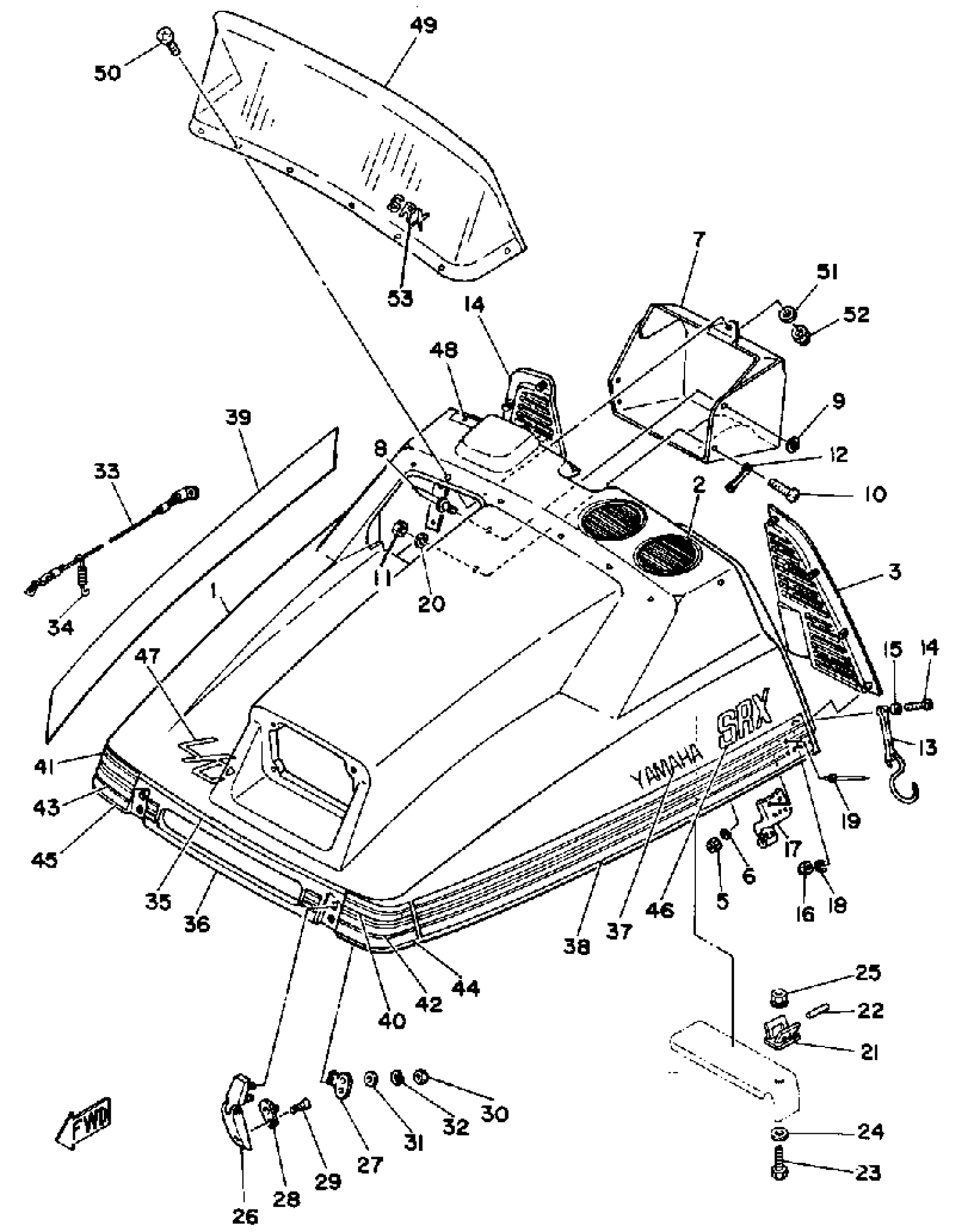

Find the part on the Shroud diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8J0-W7711-00-00)

1
Out of stock

2

LOUVER 3

8A7-77133-30-00

1
Out of stock

3

LOUVER 1

8A5-77131-01-00

1
Out of stock

4

LOUVER 2

8A5-77132-01-00

1
Out of stock

5

NUT, NYLON

95707-05300-00

1

$2.74

In stock

6

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

7

DUCT

(8K2-77194-00-00)

1
Out of stock

8

RIVET, BLIND

90267-489UJ-00

1
Out of stock

9

WASHER, PLATE

90201-04027-00

1
Out of stock

10

SCREW, BINDING

98907-05016-00

1

$6.18

In stock

11

NUT, NYLON

95707-05300-00

1

$2.74

In stock

12

WASHER, SPECIAL

(8A7-77116-00-00)

1
Out of stock

13

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

14

SCREW, BIND(J39)

98980-06030-00

1

$5.62

In stock

15

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

CLAMP 2

8A5-77136-01-00

1
Out of stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

20

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

21

CLAMP 3

878-77137-01-00

1
Out of stock

22

STOPPER

878-77188-00-00

1
Out of stock

23

BOLT,HEXAGON

97017-06008-00

—
Out of stock

24

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

25

NUT, NYLON

95707-06300-00

—

$3.20

In stock

26

HINGE ASSEMBLY

8J0-77140-00-00

1
Out of stock

27

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

28

PLATE, BACK UP 2

8J0-77154-00-00

1
Out of stock

29

SCREW, FLAT

98704-06016-00

1
Out of stock

30

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

ORNAMENT 4

(8K2-77113-00-00)

1
Out of stock

36

ORNAMENT 3

8K2-77169-00-00

1
Out of stock

37

EMBLEM 7

(8K2-77357-00-00)

1
Out of stock

38

ORNAMENT 1

8K2-77163-00-00

1
Out of stock

39

ORNAMENT 2

8K2-77164-00-00

1
Out of stock

40

STRIPE 3

(8K2-77283-00-00)

1
Out of stock

41

STRIPE 4

(8K2-77284-00-00)

1
Out of stock

42

STRIPE 5

(8K2-77285-00-00)

1
Out of stock

43

STRIPE 6

8K2-77286-00-00

1
Out of stock

44

STRIPE 7

(8K2-77287-00-00)

1
Out of stock

45

STRIPE 8

(8K2-77288-00-00)

1
Out of stock

46

EMBLEM 6

8J0-77356-00-00

1
Out of stock

47

EMBLEM 8

(8K2-77358-00-00)

1
Out of stock

48

LABEL, SAFETY

288-21659-00-00

1
Out of stock

49

WINDSHIELD

8J0-77210-00-00

1
Out of stock

50

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

51

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

52

NUT, NYLON

95707-05300-00

1

$2.74

In stock

53

EMBLEM 7

(8J0-77357-00-00)

1
Out of stock

53

ORNAMENT SET

(8K2-70000-00-00)

1
Out of stock
