1980 Yamaha SRX440D Radiator Hose Diagram

← All diagrams

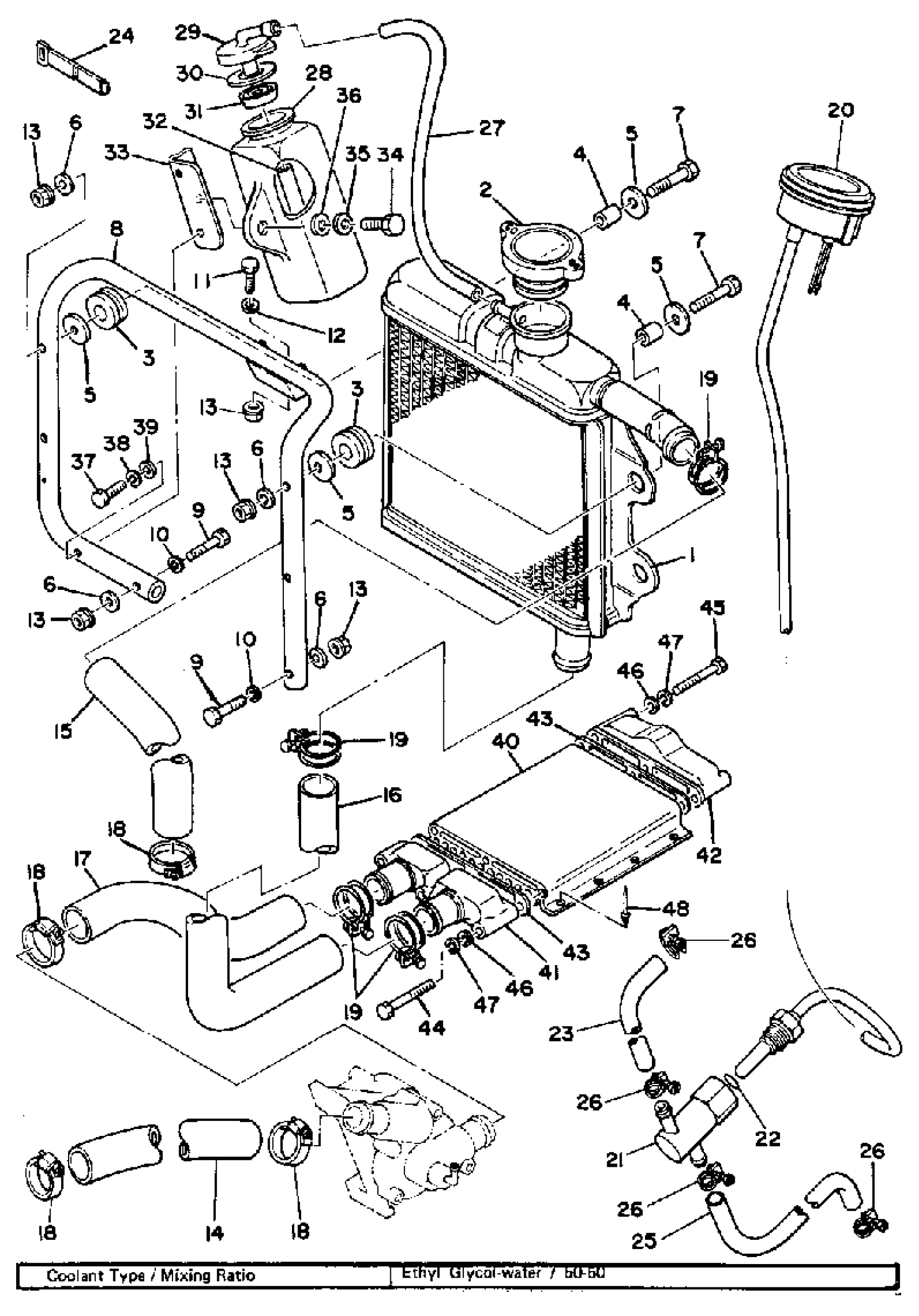

Find the part on the Radiator Hose diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSEMBLY

8A7-12460-00-00

1
Out of stock

2

CAP, RADIATOR

11H-12462-00-00

1
Out of stock

3

GROMMET(87A)

90480-20527-00

1

$10.06

In stock

4

COLLAR (8A7)

90387-06518-00

1
Out of stock

5

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

6

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

7

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

8

STAY, RADIATOR

(8A7-12464-00-00)

1
Out of stock

9

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

PIPE 1

8A7-12481-00-00

1
Out of stock

15

PIPE 2

8A7-12482-00-00

1
Out of stock

16

PIPE 3

(8K2-12483-00-00)

1
Out of stock

17

PIPE 5

(8G9-12485-00-00)

1
Out of stock

18

CLAMP, HOSE

90460-38292-00

1
Out of stock

19

HOSE CLAMP ASSY

90450-35001-00

—
Out of stock

20

WATER TEMP METER

8X6-83590-00-00

1
Out of stock

21

JOINT

8A7-12446-01-00

1
Out of stock

22

O-RING (260)

93210-10118-00

—

$5.86

In stock

23

HOSE, 4

(8K2-12579-00-00)

1
Out of stock

24

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

25

HOSE 6

(8K2-12589-00-00)

1
Out of stock

26

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

27

HOSE

90445-11306-00

1
Out of stock

28

TANK, RECOVERY

8A7-21871-00-00

1
Out of stock

29

CAP

8A2-21875-00-00

1
Out of stock

30

GASKET, CAP

8A2-16716-00-00

1
Out of stock
