1976 Yamaha RD400 (RD400C) Tail Lamp Diagram

← All diagrams

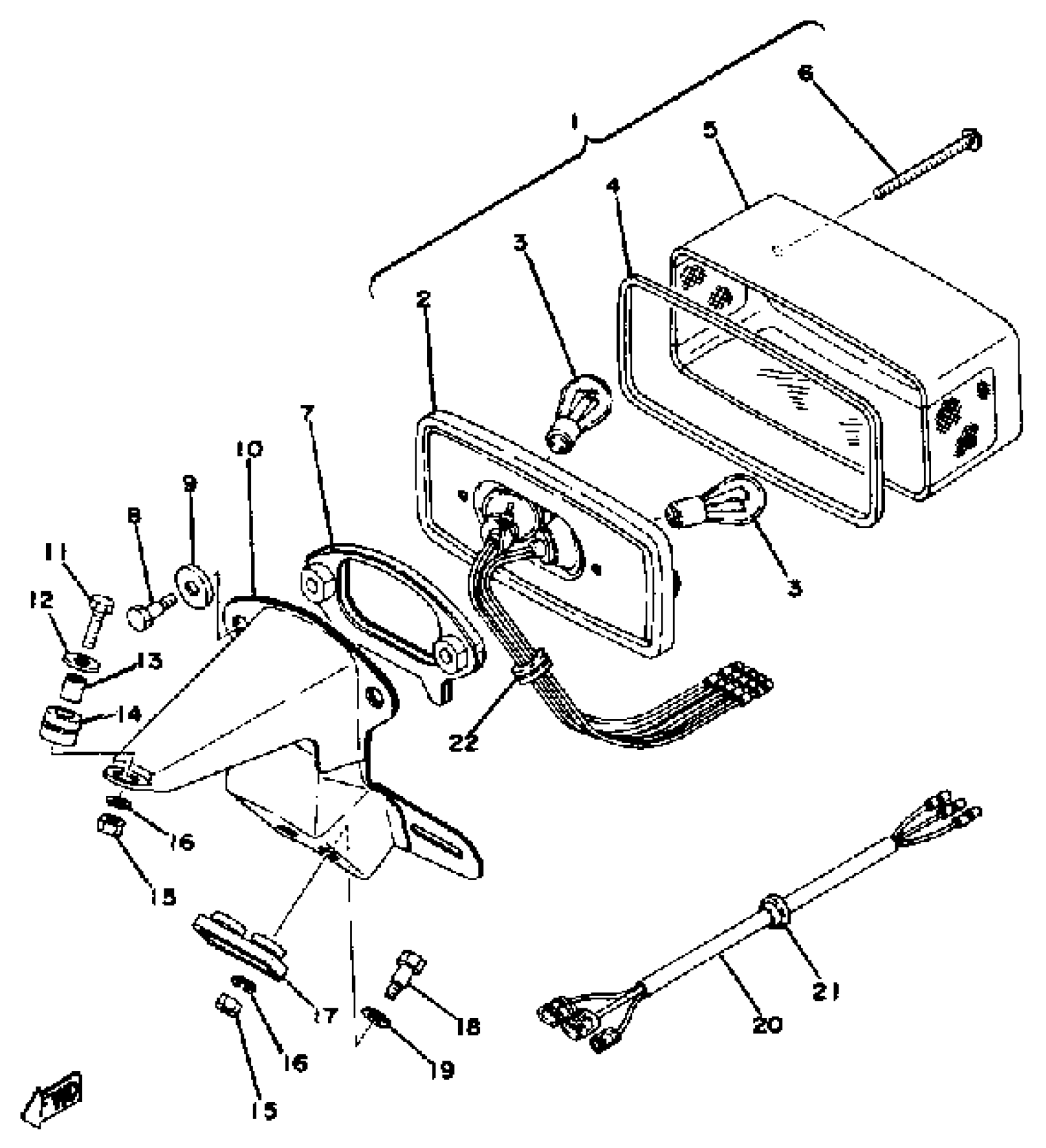

Find the part on the Tail Lamp diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD400 (RD400C) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

2A2-84710-60-00

1
Out of stock

2

. BASE, TAILLIGHT

(1A0-84711-60-00)

1
Out of stock

3

1

$10.02

In stock

4

. GASKET, TAIL LENS

1A0-84723-60-00

1
Out of stock

5

. LENS, TAILLIGHT

1A0-84721-60-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

7

SHEET, BASE

1A0-84712-60-00

1
Out of stock

8

BOLT, TAILLAMP

1A0-84726-60-00

1
Out of stock

9

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

10

BRACKET, LICENSE

1A0-84751-60-33

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER

90209-06012-00

1

$4.71

In stock

13

COLLAR

90387-07020-00

1

$6.17

In stock

14

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

DAMPER

214-84553-01-00

—

$6.72

In stock

18

BOLT 168217380000

90109-06017-00

—
Out of stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

CORD, TAILLIGHT

8L1-84727-00-00

1
Out of stock

21

GROMMET 152845180000

90480-12013-00

—
Out of stock

22

GROMMET (461)

90480-12067-00

—
Out of stock
