- RD400C (RD400) 1976
A - C - GENERATOR

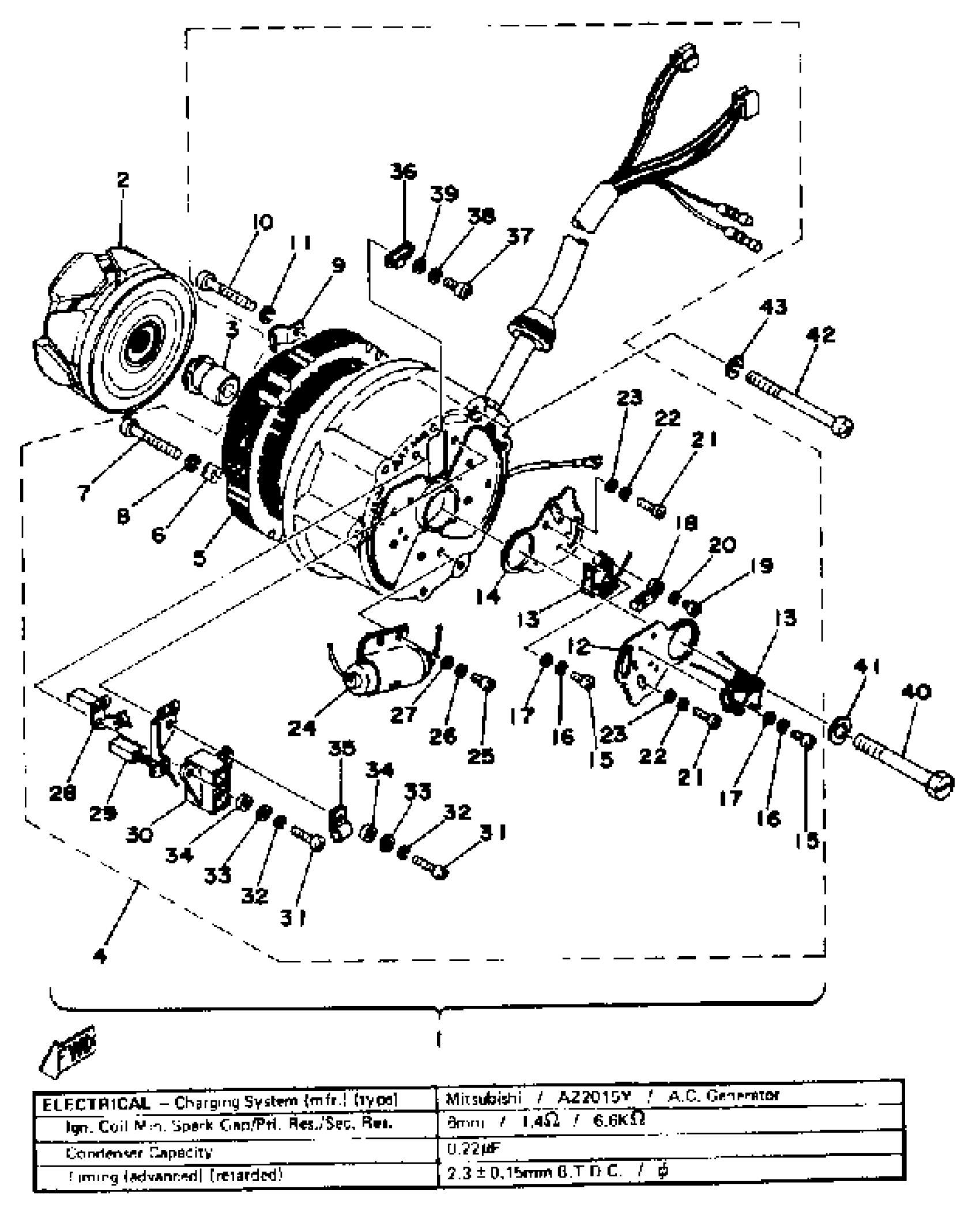

1976 Yamaha RD400 (RD400C) A - C - Generator Diagram
Find the part on the A - C - Generator diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
AC GENERATOR ASSEMBLY
(1A0-81600-20-00)
1
AC GENERATOR ASSEMBLY
(1A0-81600-61-00)
2
. ROTOR ASSEMBLY
1A0-81650-20-00
3
. CAM
1A0-81651-20-00
4
STATOR ASSEMBLY
(1A0-81610-20-00)
4
STATOR ASSEMBLY
(1A0-81610-61-00)
5
POINT GAUGE
(169-28121-00-00)
5
. CONTACT BRKR ASSEMBLY
1A0-81621-20-00
5
ARMATURE ASSEMBLY
(1A0-81640-20-00)
5
.. ARMATURE ASSEMBLY
1A0-81640-60-00
5
.. CONDENSER 1
360-81625-90-00
5
TUNE KIT RD400C
(ACC-01100-55-00)
5
BR8ES NGK SCREW TOP 4PK
BR8-ES000-00-00
6
PLATE, ARMTR FTNG
(1A0-81639-20-00)
8
YBS67-5 WASHER, SPRING
92990-05100-00
9
BRACKET, CONDENSER
(1A0-81627-20-00)
11
YBS67-5 WASHER, SPRING
92990-05100-00
12
PLATE, CONTACT BRKR
(1A0-81624-20-00)
13
. CONTACT BRKR ASSEMBLY
1A0-81621-20-00
14
.. PLATE, CONTACT BRKR
1A0-81623-20-00
18
LUBRICATOR
(131-81231-20-00)
21
POINT GAUGE
(169-28121-00-00)
21
. CONTACT BRKR ASSEMBLY
1A0-81621-20-00
21
.. CONDENSER 1
360-81625-90-00
21
SCREW, PAN HEAD
98511-04012-00
21
TUNE KIT RD400C
(ACC-01100-55-00)
21
BR8ES NGK SCREW TOP 4PK
BR8-ES000-00-00
24
.. CONDENSER 1
360-81625-90-00
28
. BRUSH 1
1A0-81611-20-00
29
.. BRUSH 2
1A0-81612-20-00
30
.. HOLDER, BRUSH
1A0-81613-20-00
31
SCREW, PAN HEAD
98507-04018-00
34
SPACER
(1A0-81661-20-00)
35
CLAMP
(1A0-81628-20-00)
36
POINT GAUGE
(169-28121-00-00)
36
. CONTACT BRKR ASSEMBLY
1A0-81621-20-00
36
PLATE, TIMING
(1A0-81632-20-00)
36
.. CONDENSER 1
360-81625-90-00
36
TUNE KIT RD400C
(ACC-01100-55-00)
36
BR8ES NGK SCREW TOP 4PK
BR8-ES000-00-00
40
. SCREW, HEXAGON
90143-07022-00
