1976 Yamaha RD400 (RD400C) Flasher Lamp Diagram

← All diagrams

Find the part on the Flasher Lamp diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

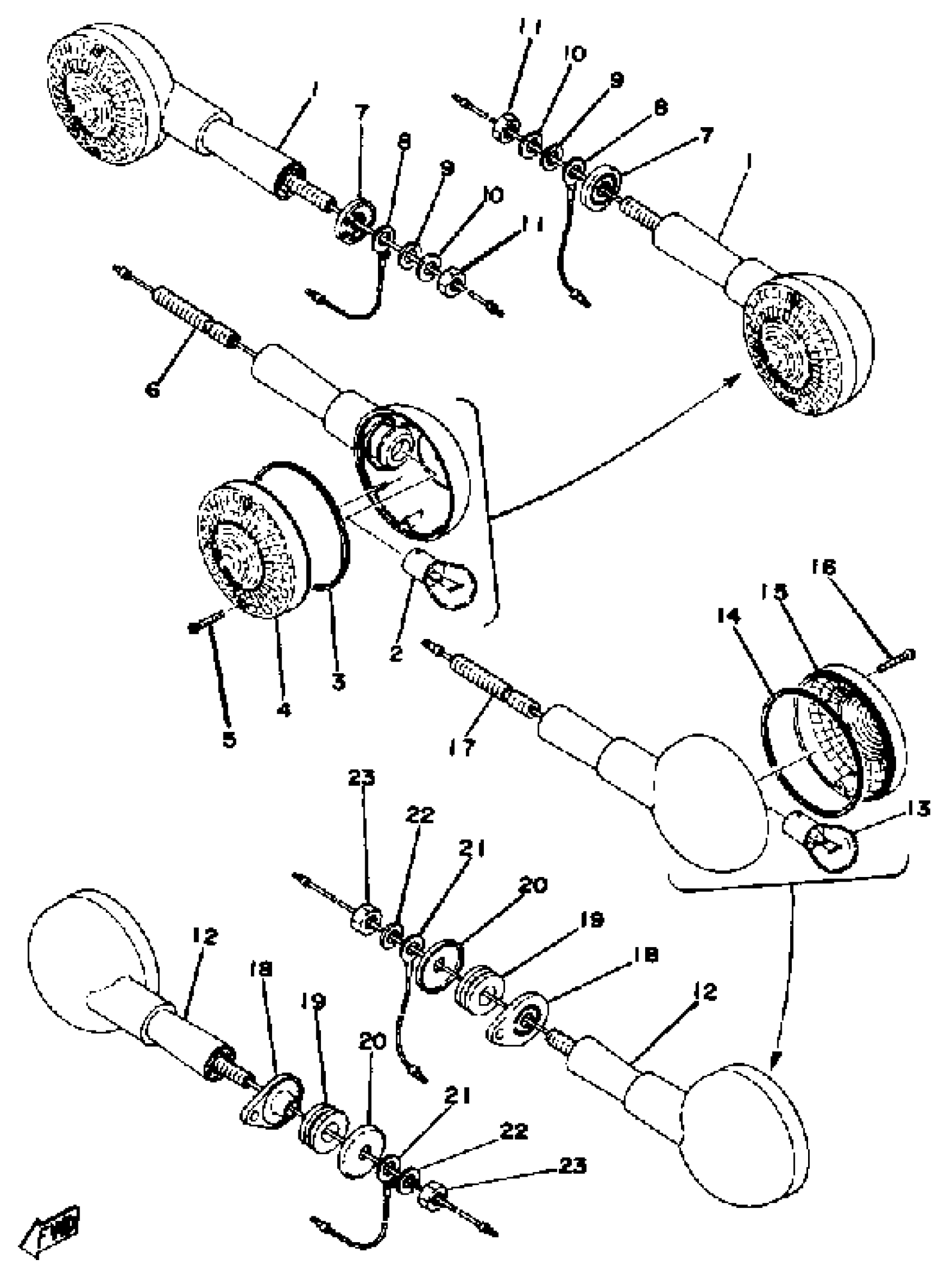

1976 Yamaha RD400 (RD400C) Flasher Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER ASSEMBLY

4G5-83310-90-00

1
Out of stock

2

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

3

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

4

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

5

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

6

. BOLT, STUD

360-83367-09-00

1
Out of stock

7

COLLAR, FLASHER 1

360-83316-00-00

1
Out of stock

8

WIRE, EARTH (GROUND)

256-84313-01-00

1
Out of stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

NUT(6L2)

95333-08600-00

1

$3.20

In stock

12

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

1
Out of stock

12

R FLSHR LITE ASSEMBLY

360-83330-71-93

1
Out of stock

13

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

14

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

15

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

15

. LENS, FLASHER

341-83332-70-00

1
Out of stock

16

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

17

. BOLT, STUD

360-83367-09-00

1
Out of stock

18

COLLAR, FLASHER 2

360-83326-00-00

1
Out of stock

19

GROMMET(3BC)

90480-18488-00

—

$5.62

In stock

20

WASHER, PLATE (1A0)

90201-08612-00

—

$6.68

In stock

21

CORD

256-83336-01-00

1
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

23

NUT(6L2)

95333-08600-00

1

$3.20

In stock
