1976 Yamaha RD400 (RD400C) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

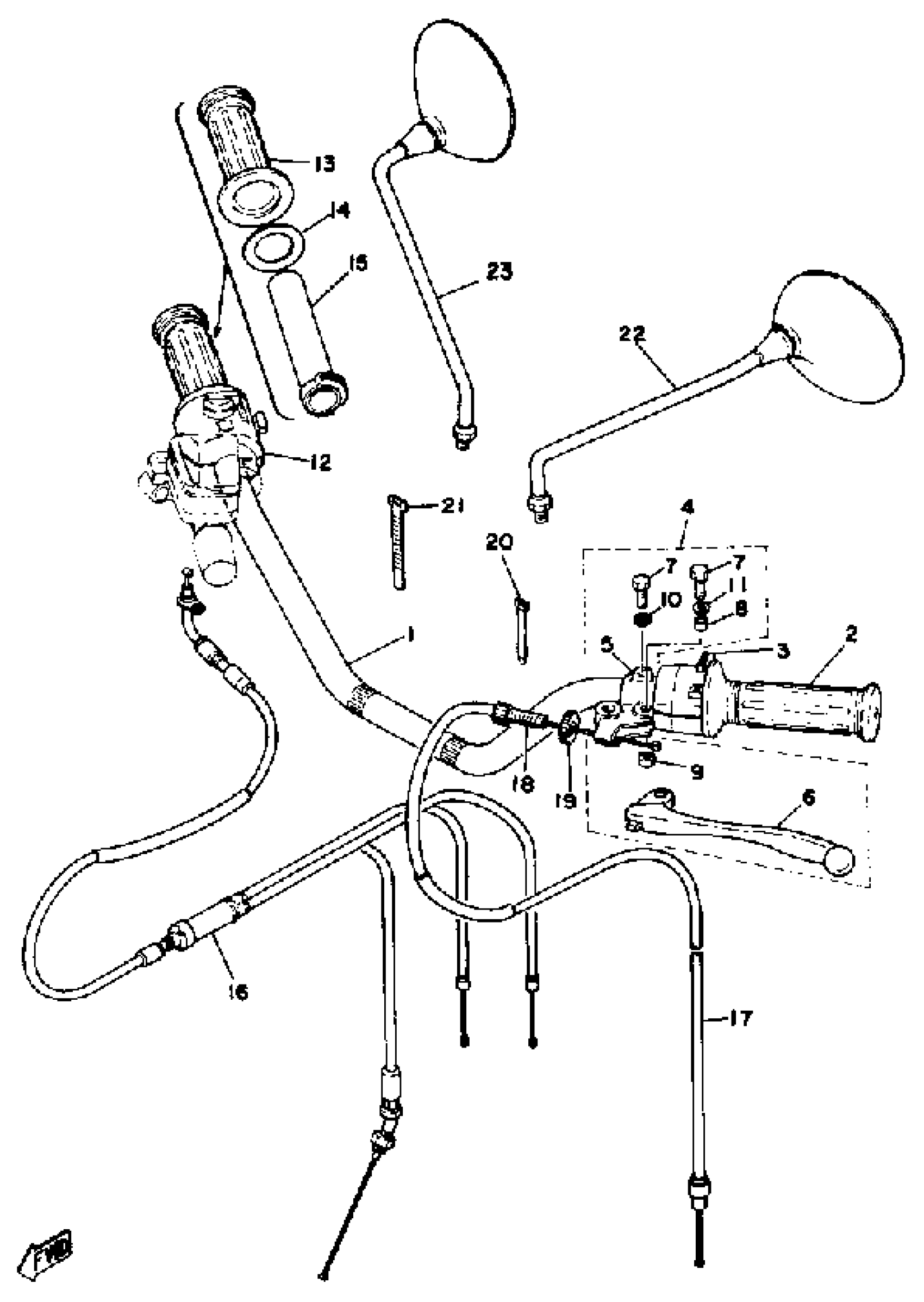

1976 Yamaha RD400 (RD400C) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

2L0-26111-00-00

1
Out of stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

1A0-83973-02-98

1
Out of stock

4

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

5

—

$24.57

In stock

6

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

7

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

8

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

9

NUT(650)

95380-06700-00

1

$6.17

In stock

9

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

12

SWITCH, HANDLE 2

1A0-83975-00-98

1
Out of stock

13

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

14

WASHER, PLATE(1UU)

90201-261L1-00

—
Out of stock

15

TUBE, THROTTLE GUIDE

1GU-26243-00-00

—
Out of stock

16

CABLE ASSY, THROTTLE & PUMP

1A0-26260-01-00

—
Out of stock

17

CABLE, CLUTCH (1A0-26335-00)

1A0-26335-10-00

1
Out of stock

18

BOLT

90123-08002-00

—

$8.93

In stock

19

NUT

90179-08030-00

—

$3.78

In stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

22

MIRROR ASSEMBLY LH

1J7-26290-12-00

1
Out of stock

22

MIRROR ASSEMBLY LH

1J7-26290-12-00

1
Out of stock

22

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

23

MIRROR ASSEMBLY RH

1J7-26290-02-00

1
Out of stock

23

MIRROR ASSEMBLY RH

1J7-26290-02-00

1
Out of stock

23

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock
