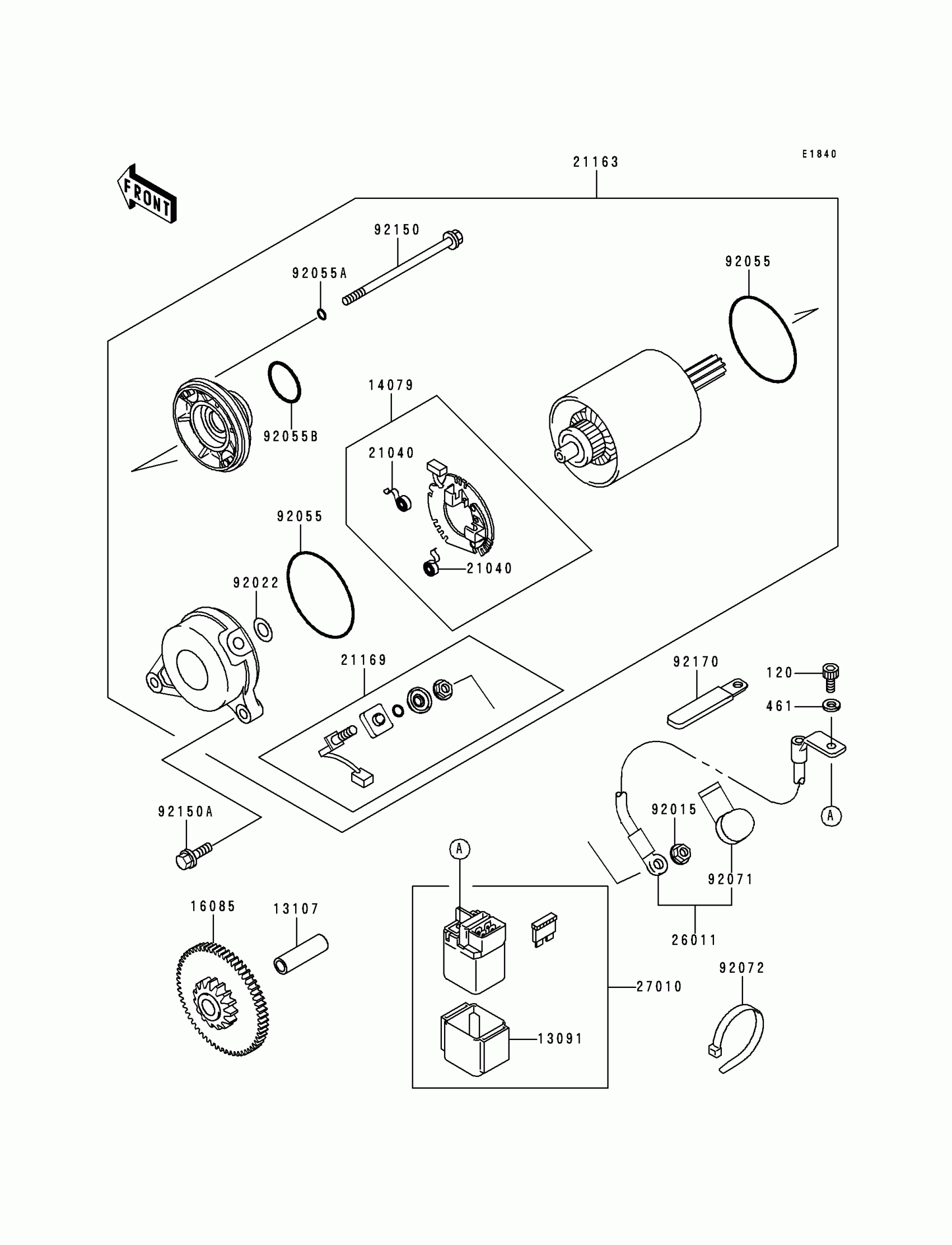

Kawasaki Ninja® ZX™-7RR Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,5X10

120S0510

Unavailable

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$11.90

13107

SHAFT

13107-1112

$29.16

14079

HOLDER-ASSY,CARBON BRUSH

14079-2055

$44.97

16085

GEAR,IDLE

16085-1104

$138.23

21040

SPRING-BRUSH

21040-1051

$7.56

21163

STARTER-ELECTRIC

21163-1193

$651.53

21169

TERMINAL,STARTER

21169-1058

$60.22

26011

WIRE-LEAD,STARTER

26011-1603

$51.74

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

92015

NUT

92015-1623

$4.59

92022

WASHER

92022-2200

$1.27

92055

RING-O,62MM

92055-1260

$9.80

92055A

RING-O,4.5MM

92055-1261

$2.29

92055B

RING-O,24.4X3.1

92055-1262

$11.90

92071

GROMMET,STARTER TERMINAL

92071-1120

$12.80

92072

BAND,L=202

92072-1195

$1.16

92150

BOLT

92150-1237

$7.46

92150A

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92170

CLAMP

92170-1514

$3.29
