1997 Kawasaki Ninja® ZX™-7RR Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

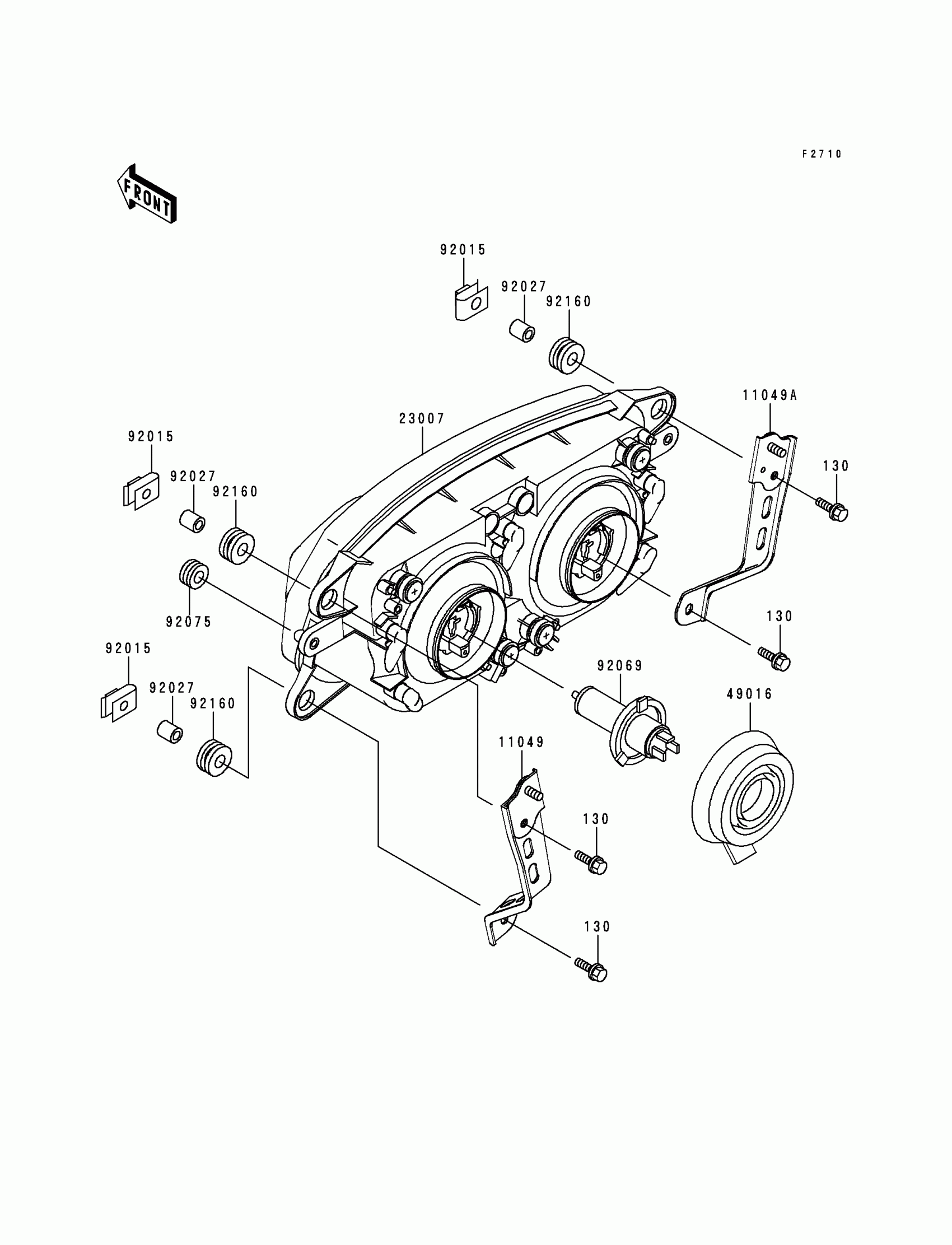

1997 Kawasaki Ninja® ZX™-7RR Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

11049

BRACKET,HEAD LAMP,LH

11049-1340

1
Out of stock

11049A

BRACKET,HEAD LAMP,RH

11049-1341

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1336

1
Out of stock

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1137

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 45/45W,H4

92069-1104

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock
