1997 Kawasaki Ninja® ZX™-7RR Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

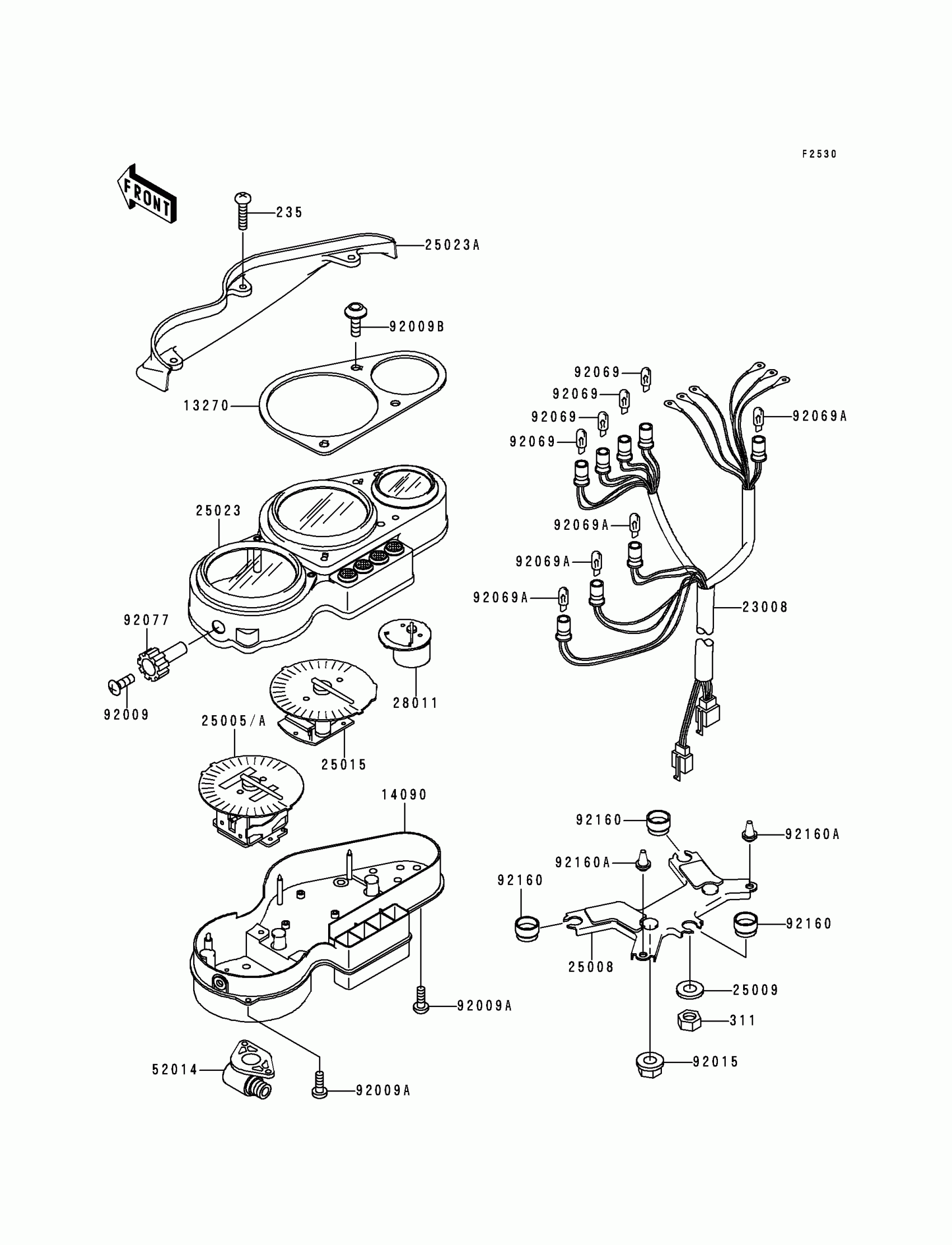

1997 Kawasaki Ninja® ZX™-7RR Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

235

SCREW-PAN-WP-CROS

235C0412

1
Out of stock

311

NUT-HEX

311C0500

1
Out of stock

13270

PLATE,METER

13270-1524

1

$65.47

In stock

14090

COVER,METER HOUSING

14090-1648

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1560

1
Out of stock

25005

SPEEDOMETER,KPH

25005-1596

1
Out of stock

25008

BRACKET-METER

25008-1214

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1339

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1223

1
Out of stock

25023A

COVER-METER CASE

25023-1225

1
Out of stock

28011

METER,TEMP

28011-1155

1
Out of stock

52014

ELBOW

52014-1081

1
Out of stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1593

1
Out of stock

92009B

SCREW,TAPPING,5X16

92009-1720

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92077

KNOB,METER

92077-1073

1
Out of stock

92160

DAMPER

92160-1668

1
Out of stock

92160A

DAMPER

92160-1669

1
Out of stock
