1997 Kawasaki Ninja® ZX™-7RR Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

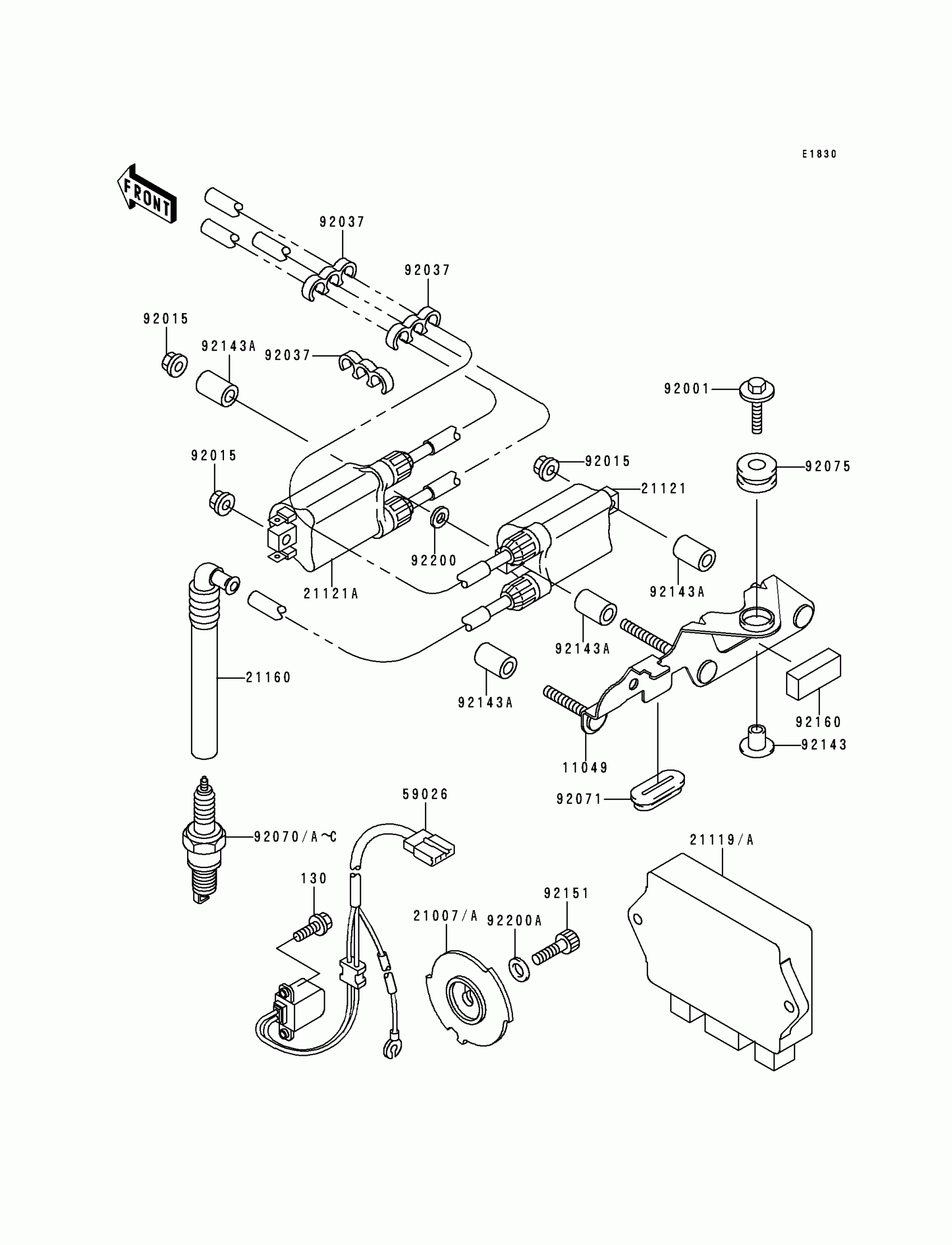

1997 Kawasaki Ninja® ZX™-7RR Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

11049

BRACKET,IGNITION

11049-1707

1
Out of stock

21007

ROTOR,PULSING

21007-1294

1
Out of stock

21119

IGNITER

21119-1461

1
Out of stock

21121

COIL-IGNITION,#1

21121-1253

1
Out of stock

21121A

COIL-IGNITION,#2

21121-1255

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1088

1
Out of stock

59026

COIL-PULSING

59026-1104

1
Out of stock

92001

BOLT,6X30

92001-1776

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92037

CLAMP,TUBE

92037-1941

1
Out of stock

92070

PLUG-SPARK,CR9E(NGK)

92070-1143

1
Out of stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92070B

PLUG-SPARK,CR8E(NGK)

92070-1169

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92071

GROMMET

92071-1187

1
Out of stock

92075

DAMPER,MUFFLER FITTING

92075-1857

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92143A

COLLAR,6.4X10X20

92143-1858

1
Out of stock

92151

BOLT,SOCKET,8X22

92151-1073

1
Out of stock

92160

DAMPER,BRACKET

92160-1736

1
Out of stock

92200

WASHER,6.5X13

92200-1271

1
Out of stock

92200A

WASHER,8.5X14.7X2

92200-1300

1
Out of stock
