1997 Kawasaki Ninja® ZX™-7RR Generator Shaft Diagram

← All diagrams

Find the part on the Generator Shaft diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

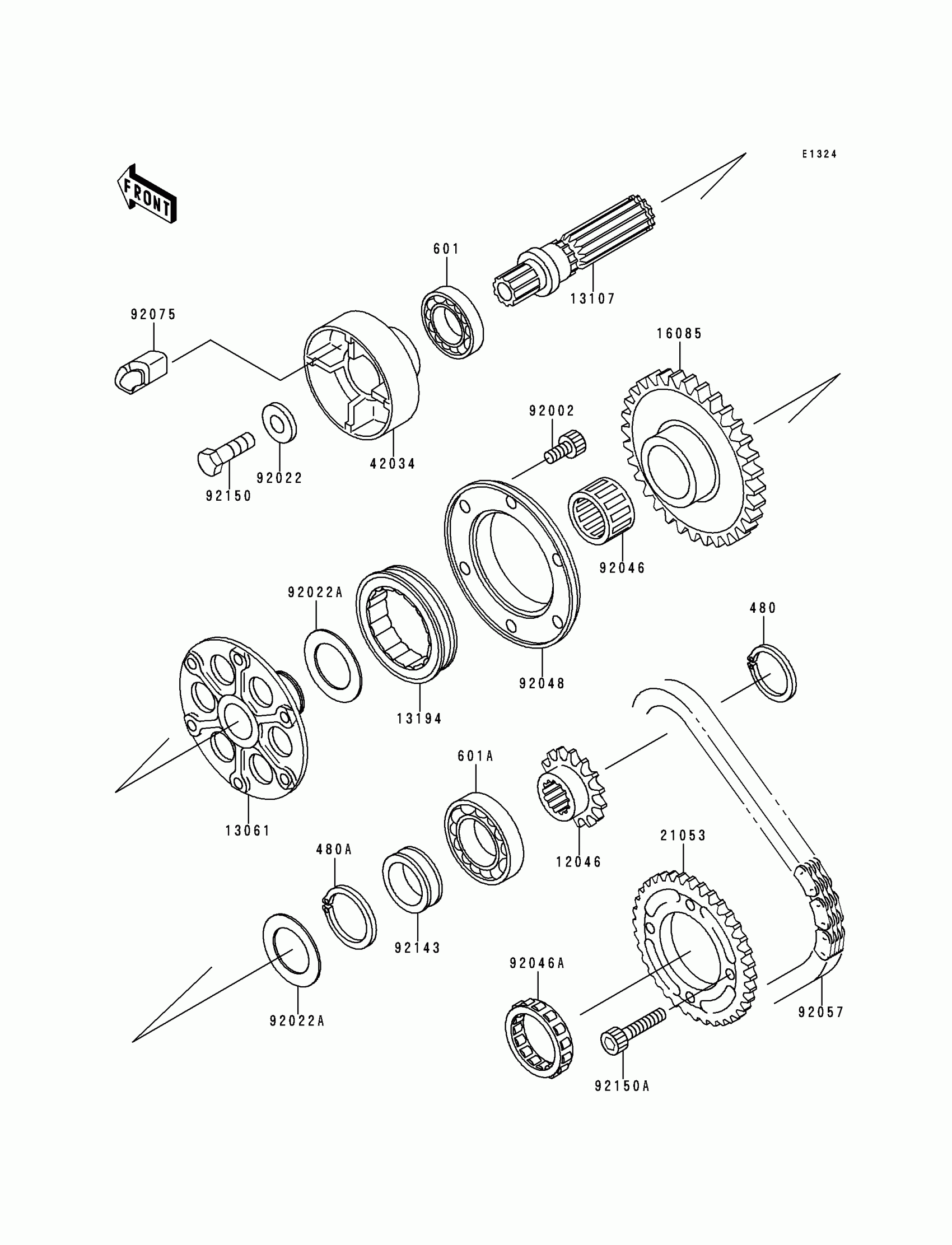

1997 Kawasaki Ninja® ZX™-7RR Generator Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,20MM

480J2000

1
Out of stock

480A

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

601

BEARING-BALL,#6203

601A6203

1
Out of stock

601A

BEARING-BALL,#6204C3

601B6204

1
Out of stock

12046

SPROCKET,DRIVEN,GENERATOR

12046-1127

1
Out of stock

13061

BOSS,ONEWAY CLUTCH

13061-1197

1
Out of stock

13107

SHAFT,ONEWAY CLUTCH

13107-1277

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1095

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1173

1
Out of stock

21053

SPROCKET-ASSY,DRIVE

21053-1064

1
Out of stock

42034

COUPLING

42034-1055

1
Out of stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92022

WASHER,8X22X3

92022-1518

1
Out of stock

92022A

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92046A

BEARING-NEEDLE

92046-1251

1
Out of stock

92048

RACE,ONEWAY CLUTCH

92048-1068

1
Out of stock

92057

CHAIN,GENERATOR,81RH2515M

92057-1322

1
Out of stock

92075

DAMPER,COUPLING

92075-1790

1
Out of stock

92143

COLLAR

92143-1466

1
Out of stock

92150

BOLT,8X20

92150-1488

1
Out of stock

92150A

BOLT,SOCKET,5X25

92150-1684

1
Out of stock
