1997 Kawasaki Ninja® ZX™-7RR Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

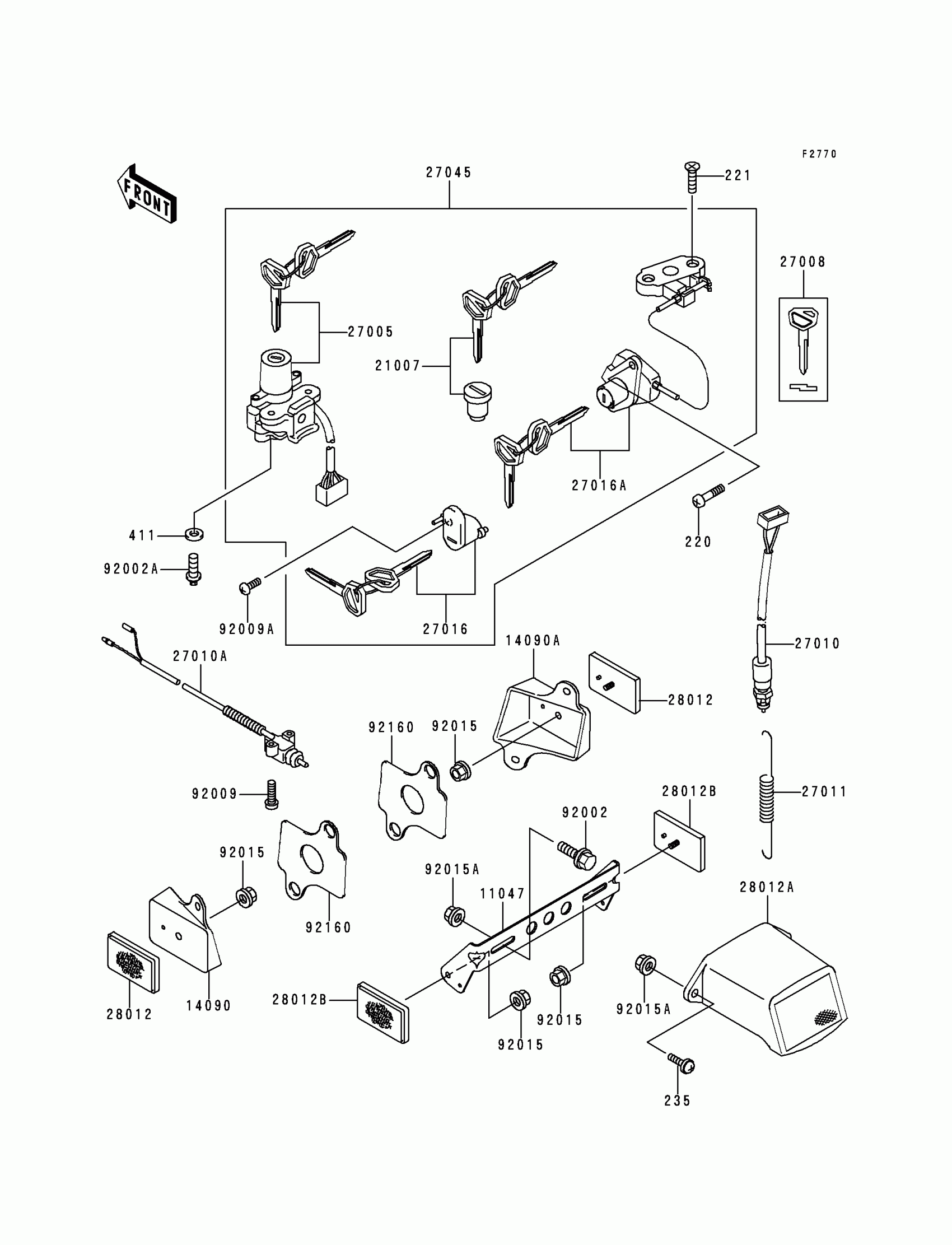

1997 Kawasaki Ninja® ZX™-7RR Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,6X12

220C0612

1
Out of stock

221

SCREW-CSK-CROS,6X28

221B0628

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235C0620

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock

11047

BRACKET,REFLECTOR

11047-1470

1

$29.64

In stock

14090

COVER,REFLECTOR,FR,LH

14090-1377

1
Out of stock

14090A

COVER,REFLECTOR,FR,RH

14090-1378

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1

$60.27

In stock

27005

1

$236.97

In stock

27008

KEY-LOCK,BLANK

27008-1170

1

$14.13

In stock

27010

SWITCH,BRAKE LAMP

27010-1152

1

$27.22

In stock

27010A

SWITCH,SIDE STAND

27010-1222

1

$115.22

In stock

27011

1

$6.75

In stock

27016

LOCK-ASSY,HELMET

27016-5197

1

$69.64

In stock

27016A

LOCK-ASSY,SEAT

27016-5231

1
Out of stock

27045

SWITCH-ASSY

27045-5018

1

$304.31

In stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1066

1

$36.58

In stock

28012B

REFLECTOR-REFLEX,RR

28012-1078

1

$20.82

In stock

92002

BOLT,6X12

92002-1132

1

$1.32

In stock

92002A

BOLT,TORX,6X16

92002-1333

1

$2.15

In stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92009A

SCREW,5X12

92009-1540

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92160

DAMPER,REFLECTOR

92160-1486

1
Out of stock
