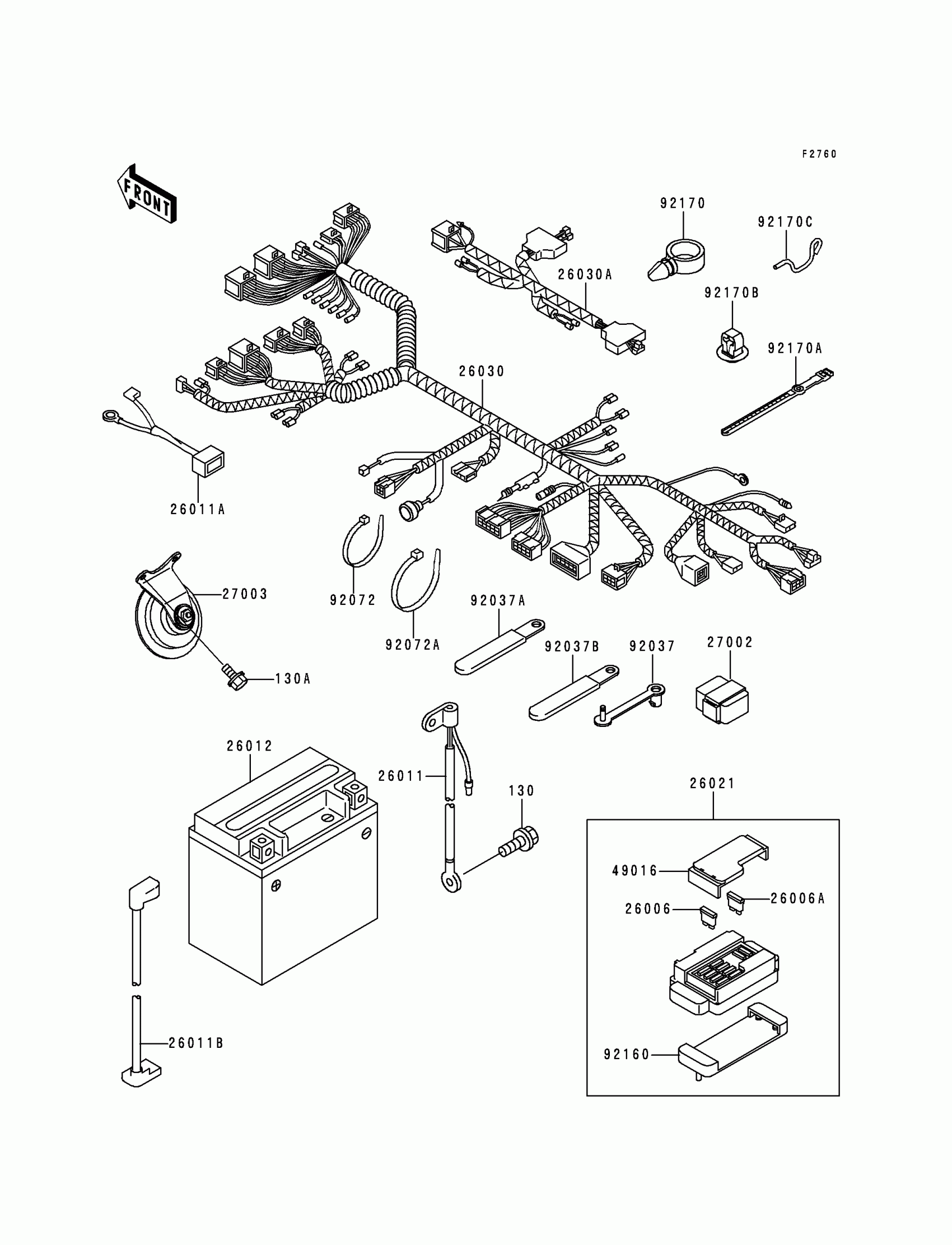

Kawasaki Ninja® ZX™-7RR Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130G0610

Unavailable

130A

BOLT-FLANGED,6X16

130G0616

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-1429

$31.43

26011A

WIRE-LEAD,THERMO SENSOR

26011-1507

$29.74

26011B

WIRE-LEAD,BATTERY(+)

26011-1584

$39.81

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

$145.53

26021

JUNCTION BOX

26021-1096

$150.49

26030

HARNESS,MAIN

26030-1428

Unavailable

26030A

HARNESS,FR,SUB

26030-1461

Unavailable

27002

RELAY-ASSY,SIGNAL LAMP

27002-1092

$73.74

27003

HORN

27003-1395

$91.17

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92037A

CLAMP

92037-1679

$4.18

92037B

CLAMP

92037-1877

$5.71

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=365

92072-1197

$7.71

92160

DAMPER,JUNCTION BOX

92160-1650

$12.78

92170

CLAMP

92170-1067

$5.69

92170A

CLAMP,L=141.2

92170-1681

Unavailable

92170B

CLAMP

92170-1682

$3.92

92170C

CLAMP,HARNESS

92170-1714

$4.31
