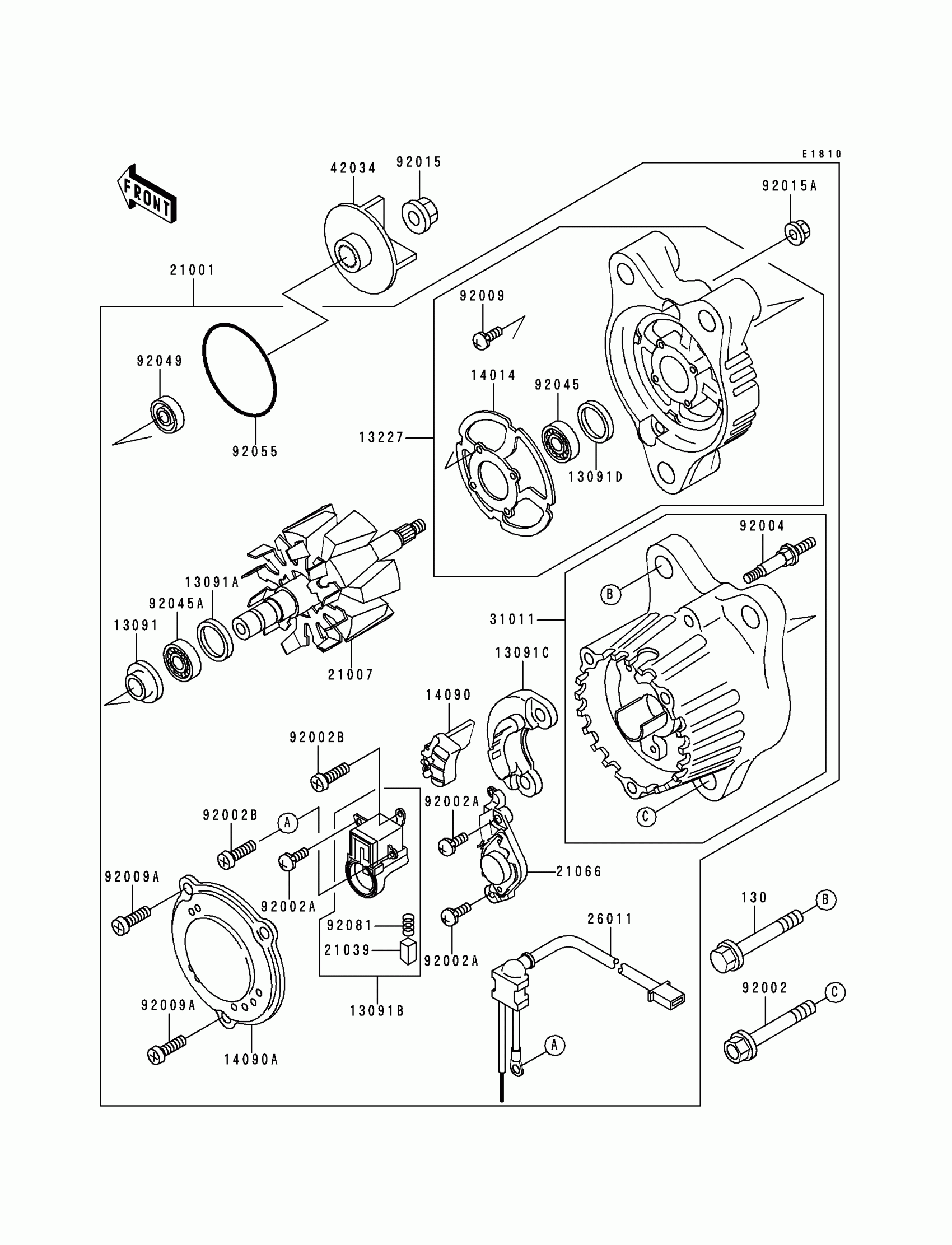

Kawasaki Ninja® ZX™-7RR Generator Diagram

#

Description
Price

130

BOLT-FLANGED

130Z0870

Unavailable

13091

HOLDER,COVER

13091-1327

$18.17

13091A

HOLDER,BEARING

13091-1328

$12.90

13091B

HOLDER,BRUSH

13091-1465

$113.58

13091C

RECTIFIER

13091-1466

$522.25

13091D

HOLDER,BEARING

13091-1748

$14.14

13227

HOUSING,GENERATOR

13227-1106

$747.38

14014

PLATE-POSITION

14014-1105

$73.79

14090

COVER,RECTIFIER

14090-1113

$15.44

14090A

COVER,GENERATOR

14090-1114

$129.76

21001

GENERATOR

21001-1115

$1,471.29

21007

ROTOR,GENERATOR

21007-1229

$624.38

21039

BRUSH,CARBON

21039-1052

$29.01

21066

REGULATOR-VOLTAGE

21066-1076

$424.45

26011

WIRE-LEAD,GENERATOR

26011-1497

$94.75

31011

FRAME,GENERATOR

31011-1067

$675.32

42034

COUPLING

42034-1056

$77.21

92002

BOLT,8X63

92002-1215

$8.54

92002A

SCREW,5X17.5

92002-1380

$4.46

92002B

BOLT,6X10.5

92002-1585

$3.88

92004

STUD

92004-1196

$23.20

92009

SCREW

92009-1645

$8.95

92009A

SCREW

92009-1646

$9.49

92015

NUT,10MM

92015-1850

$7.95

92015A

NUT

92015-1851

Unavailable

92045

BEARING-BALL,#6003

92045-1248

$54.35

92045A

BEARING-BALL,#6002NC

92045-1249

$54.40

92049

SEAL-OIL

92049-1390

$38.42

92055

RING-O

92055-1496

$29.85

92081

SPRING,BRUSH

92081-1759

$7.88
