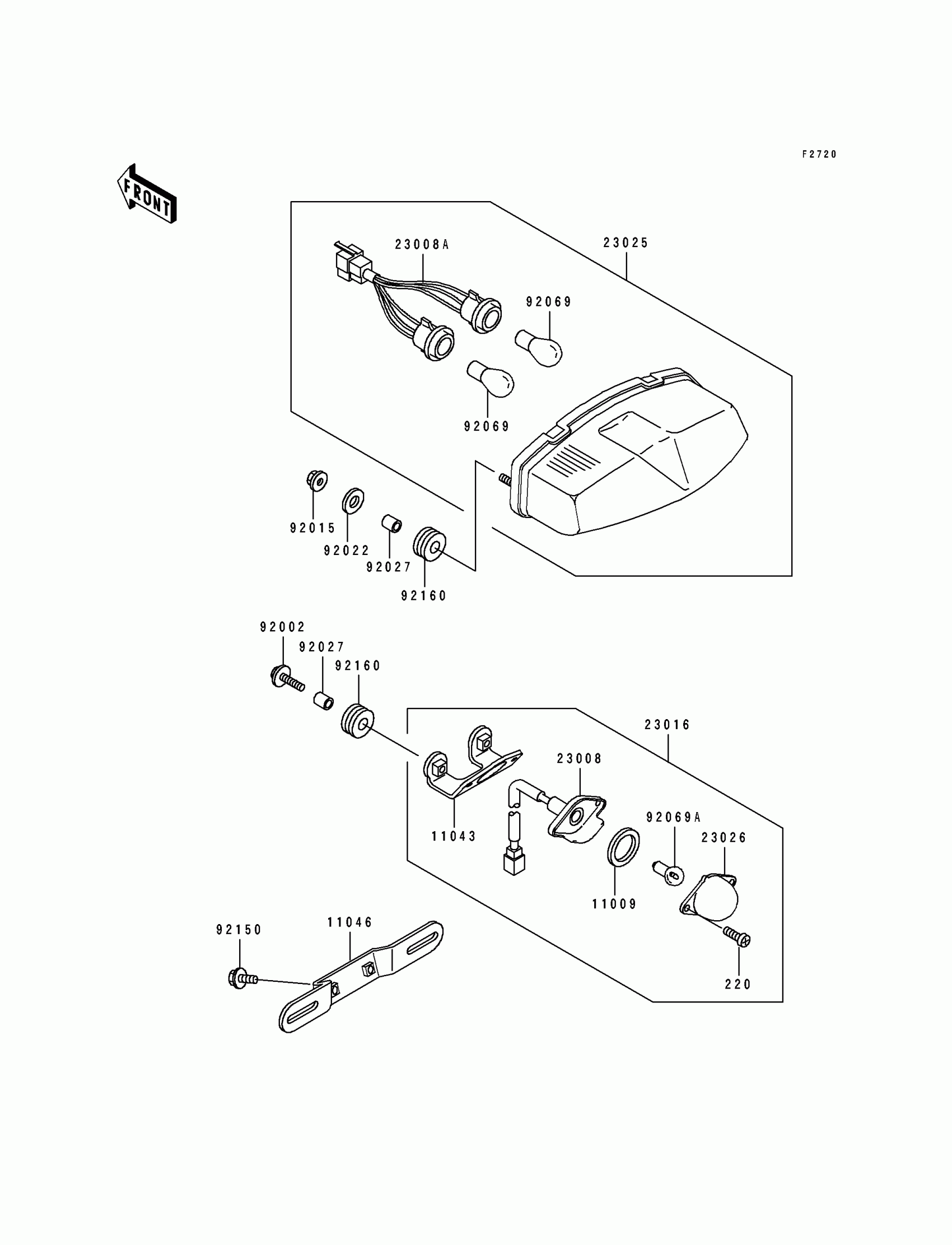

Kawasaki Ninja® ZX™-7R Taillight(s) Diagram

Description

Price

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.14

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

Unavailable

11046

BRACKET,LICENSE

11046-1504

$10.92

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

Unavailable

23008A

SOCKET-ASSY,TAIL LAMP

23008-1413

$36.21

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

$77.63

23025

LAMP-TAIL

23025-1219

$200.43

23026

LENS,LAMP

23026-1054

$9.02

92002

BOLT,6X25

92002-1135

$3.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 8W

92069-1012

Unavailable

92150

BOLT,6X14

92150-1133

$3.43

92160

DAMPER

92160-1162

$3.81

220

SCREW PAN HEAD 4X10

220B0410

Unavailable
