1992 Kawasaki Ninja® ZX™-7R Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1992 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

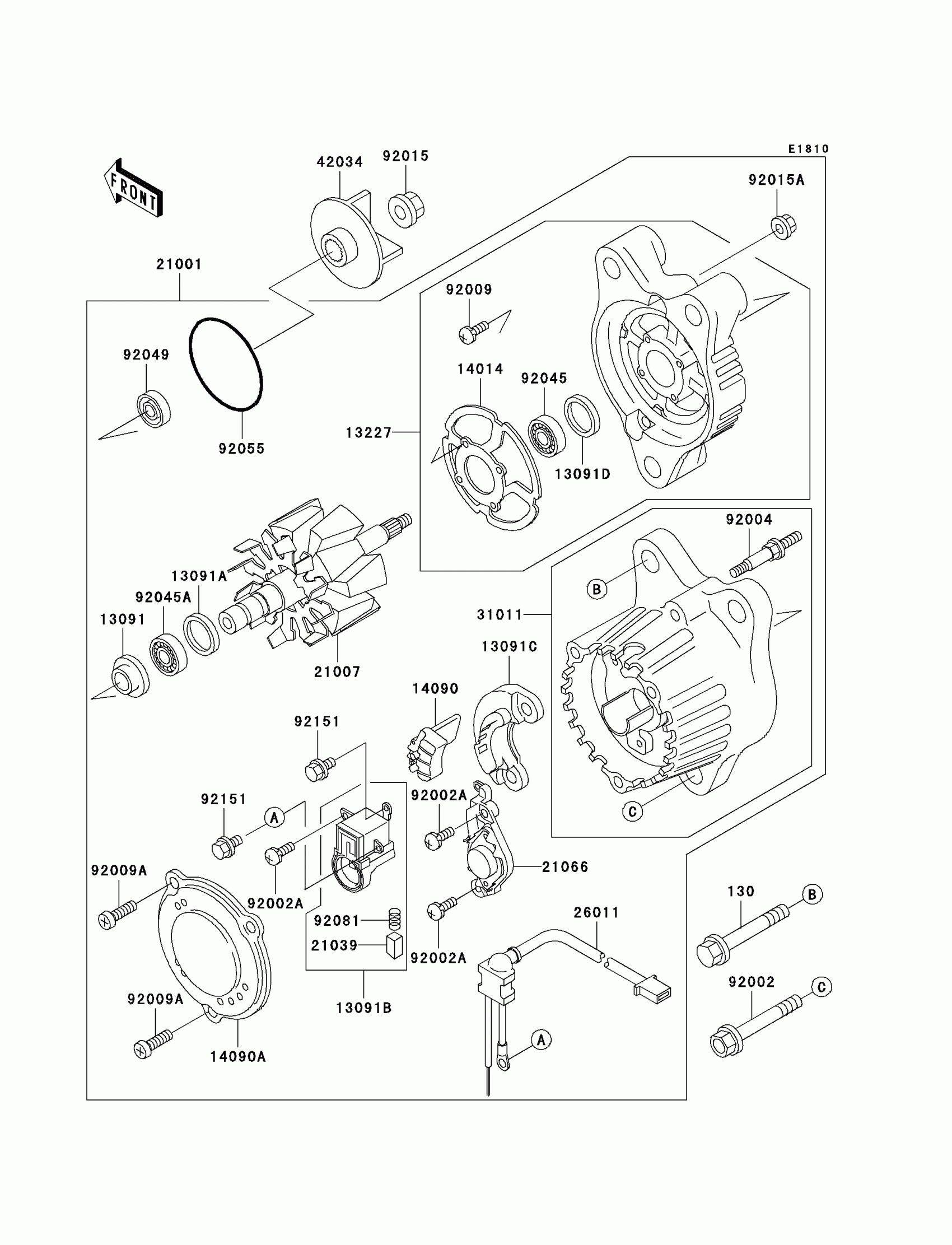

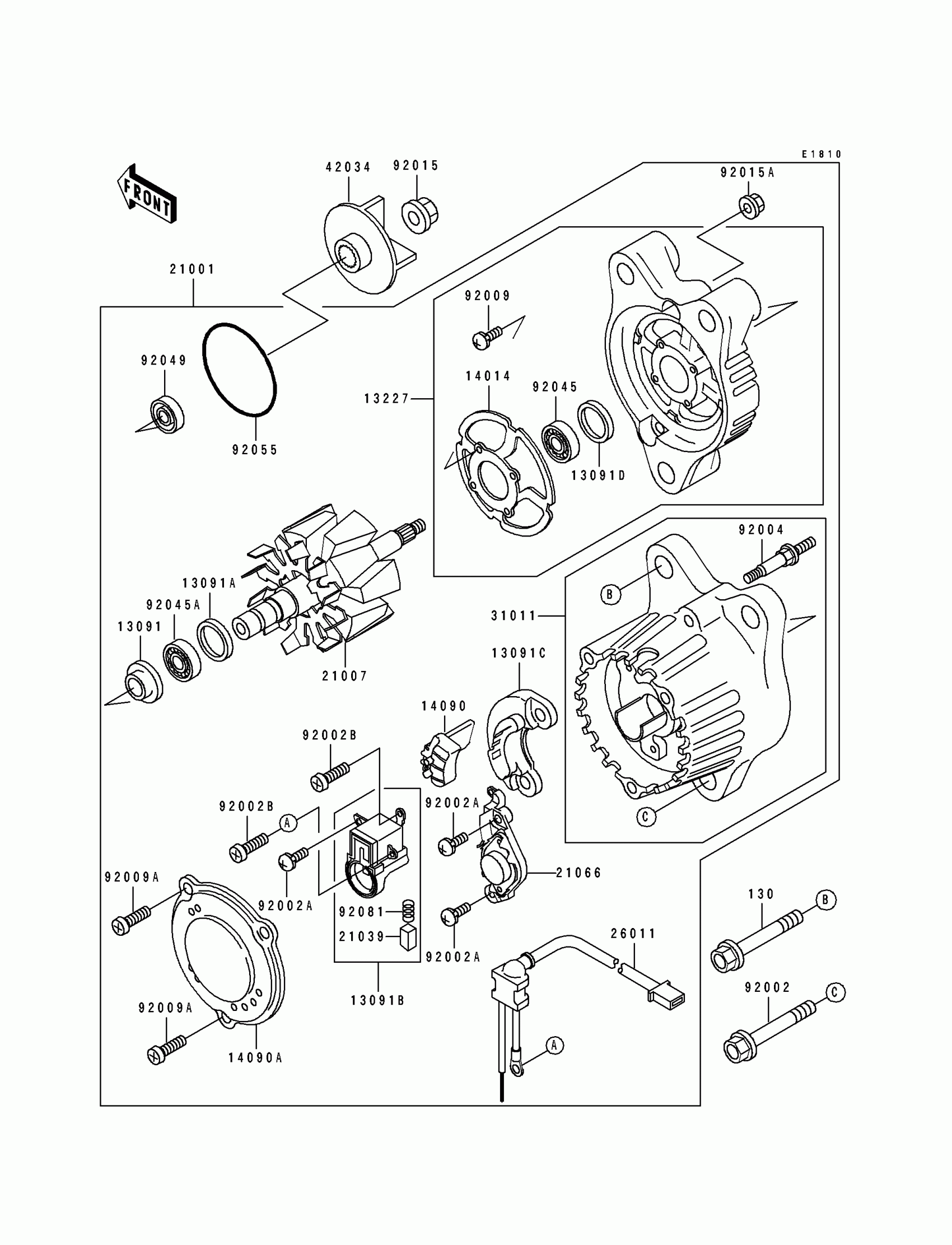

1992 Kawasaki Ninja® ZX™-7R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,COVER

13091-1327

1

$18.17

In stock

13091A

HOLDER,BEARING

13091-1328

1

$12.90

In stock

13091B

HOLDER,BRUSH

13091-1465

1

$113.58

In stock

13091C

RECTIFIER

13091-1466

1

$522.25

In stock

13091D

HOLDER,BEARING

13091-1748

1

$14.14

In stock

13227

HOUSING,GENERATOR

13227-1106

1

$747.38

In stock

14014

PLATE-POSITION

14014-1105

1
Out of stock

14090

COVER,RECTIFIER

14090-1113

1

$15.44

In stock

14090A

COVER,GENERATOR

14090-1114

1

$129.76

In stock

21001

GENERATOR

21001-1115

1

$1,471.29

In stock

21007

ROTOR,GENERATOR

21007-1229

1

$624.38

In stock

21039

BRUSH,CARBON

21039-1052

1

$29.01

In stock

21066

REGULATOR-VOLTAGE

21066-1076

1

$424.45

In stock

26011

WIRE-LEAD,GENERATOR

26011-1497

1

$94.75

In stock

31011

FRAME,GENERATOR

31011-1067

1

$675.32

In stock

42034

COUPLING

42034-1056

1

$77.21

In stock

92002

BOLT,8X63

92002-1215

1

$8.54

In stock

92002A

SCREW,5X17.5

92002-1380

1

$4.46

In stock

92002B

BOLT,6X10.5

92002-1585

1
Out of stock

92004

STUD

92004-1196

1
Out of stock

92009

SCREW

92009-1645

1
Out of stock

92009A

SCREW

92009-1646

1
Out of stock

92015

NUT,10MM

92015-1850

1

$7.95

In stock

92015A

NUT

92015-1851

1
Out of stock

92045

BEARING-BALL,#6003

92045-1248

1

$54.35

In stock

92045A

1

$54.40

In stock

92049

SEAL-OIL

92049-1390

1
Out of stock

92055

RING-O

92055-1496

1

$29.85

In stock

92081

SPRING,BRUSH

92081-1759

1

$7.88

In stock

130

BOLT-FLANGED

130Z0870

1
Out of stock
