1994 Kawasaki Ninja® ZX™-7R Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1994 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

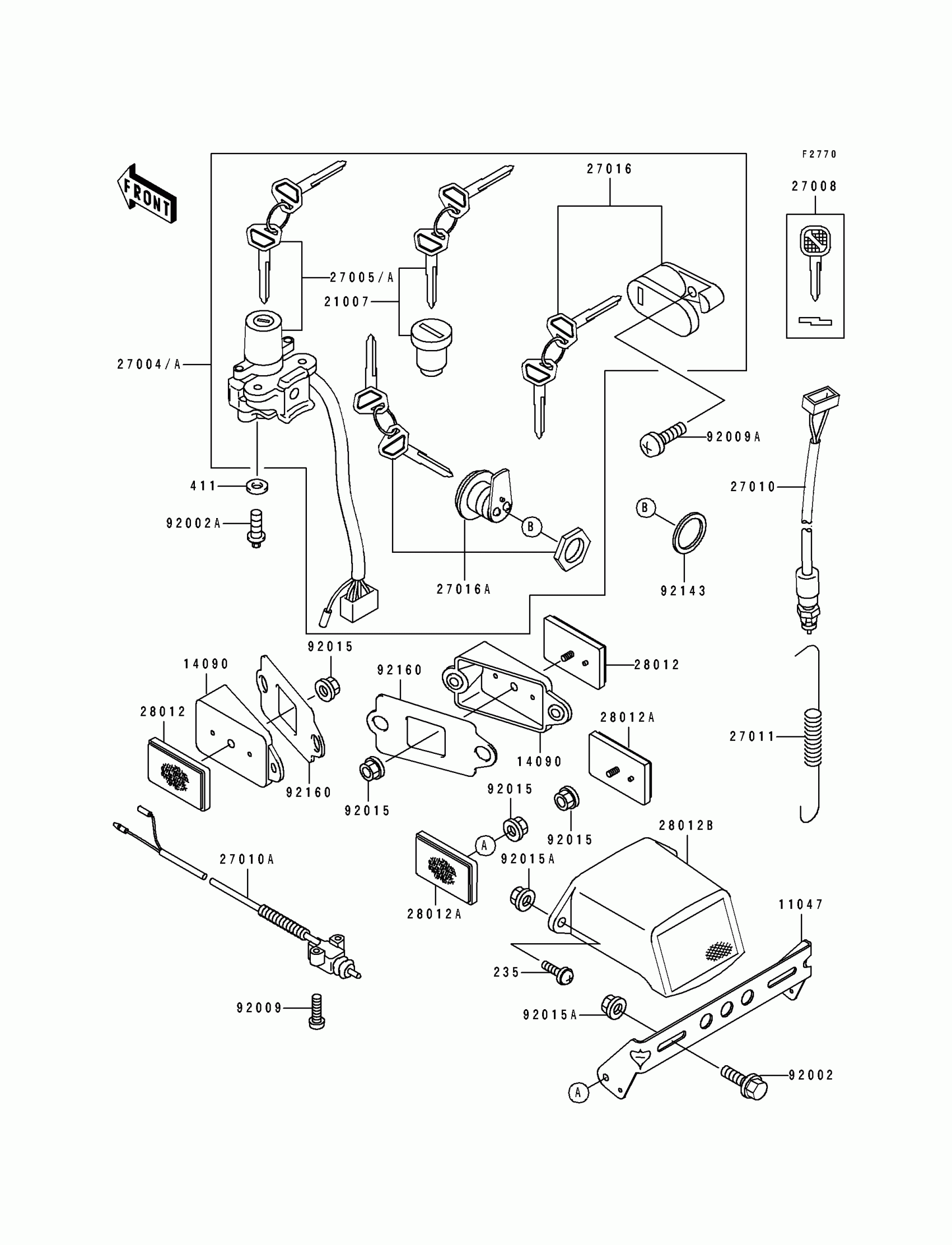

1994 Kawasaki Ninja® ZX™-7R Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,REFLECTOR

11047-1470

1
Out of stock

14090

COVER,REFLECTOR

14090-1264

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1
Out of stock

27004A

SWITCH-ASSY

27004-5477

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-1179

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1170

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1223

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-011

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5197

1
Out of stock

27016A

LOCK-ASSY,PAD

27016-5198

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-1066

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92002A

BOLT,TORX,6X16

92002-1333

1
Out of stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92009A

SCREW,5X12

92009-1540

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92143

COLLAR,22.2X28X2

92143-1489

1
Out of stock

92160

DAMPER,REFLECTOR

92160-1395

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235C0620

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock
