1994 Kawasaki Ninja® ZX™-7R Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1994 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

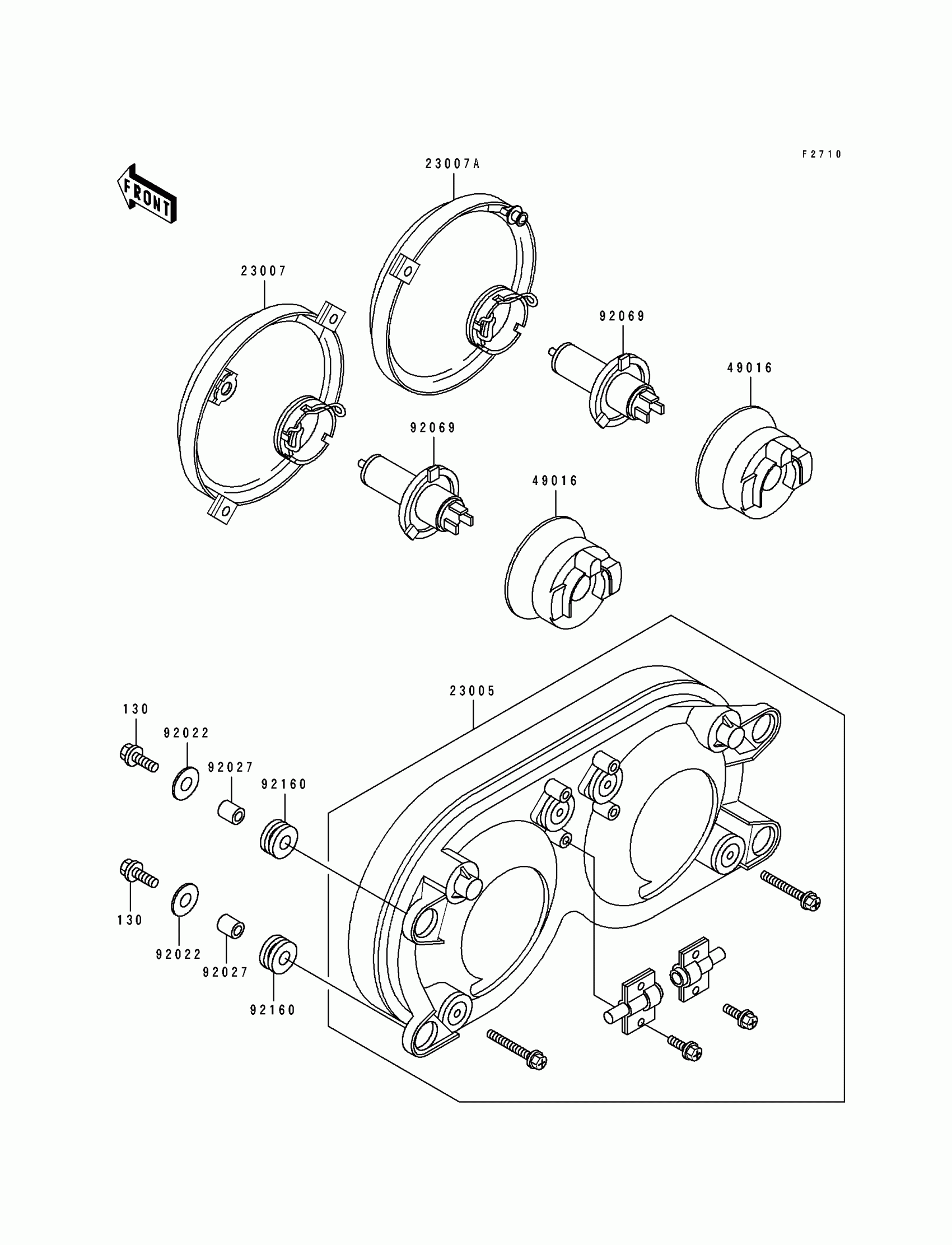

1994 Kawasaki Ninja® ZX™-7R Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23005

BODY-COMP-HEAD LAMP

23005-1120

1
Out of stock

23007

LENS-COMP,HEAD LAMP,LH

23007-1203

1
Out of stock

23007A

LENS-COMP,HEAD LAMP,RH

23007-1204

1
Out of stock

49016

COVER-SEAL,HEAD LAMP

49016-1143

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock
