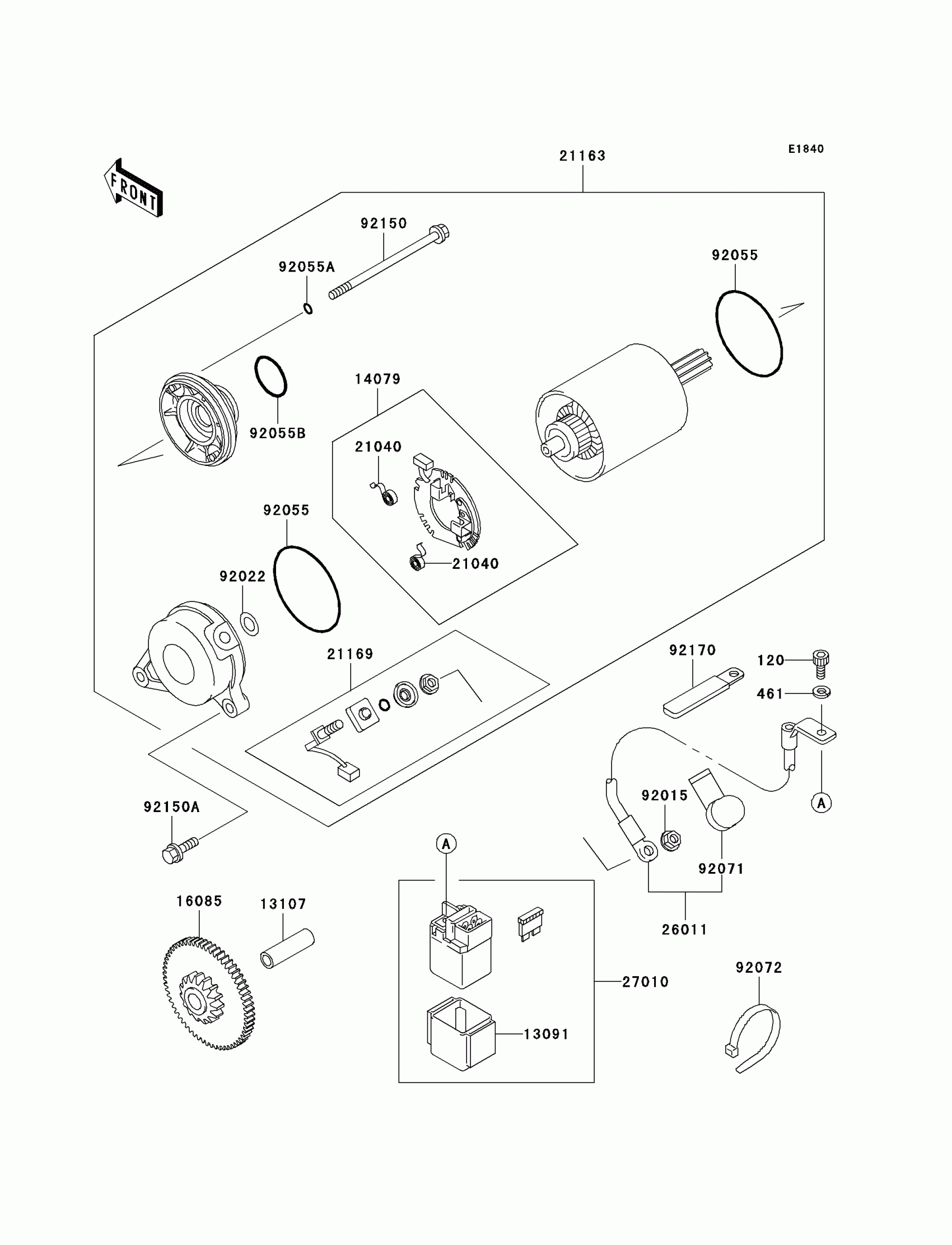

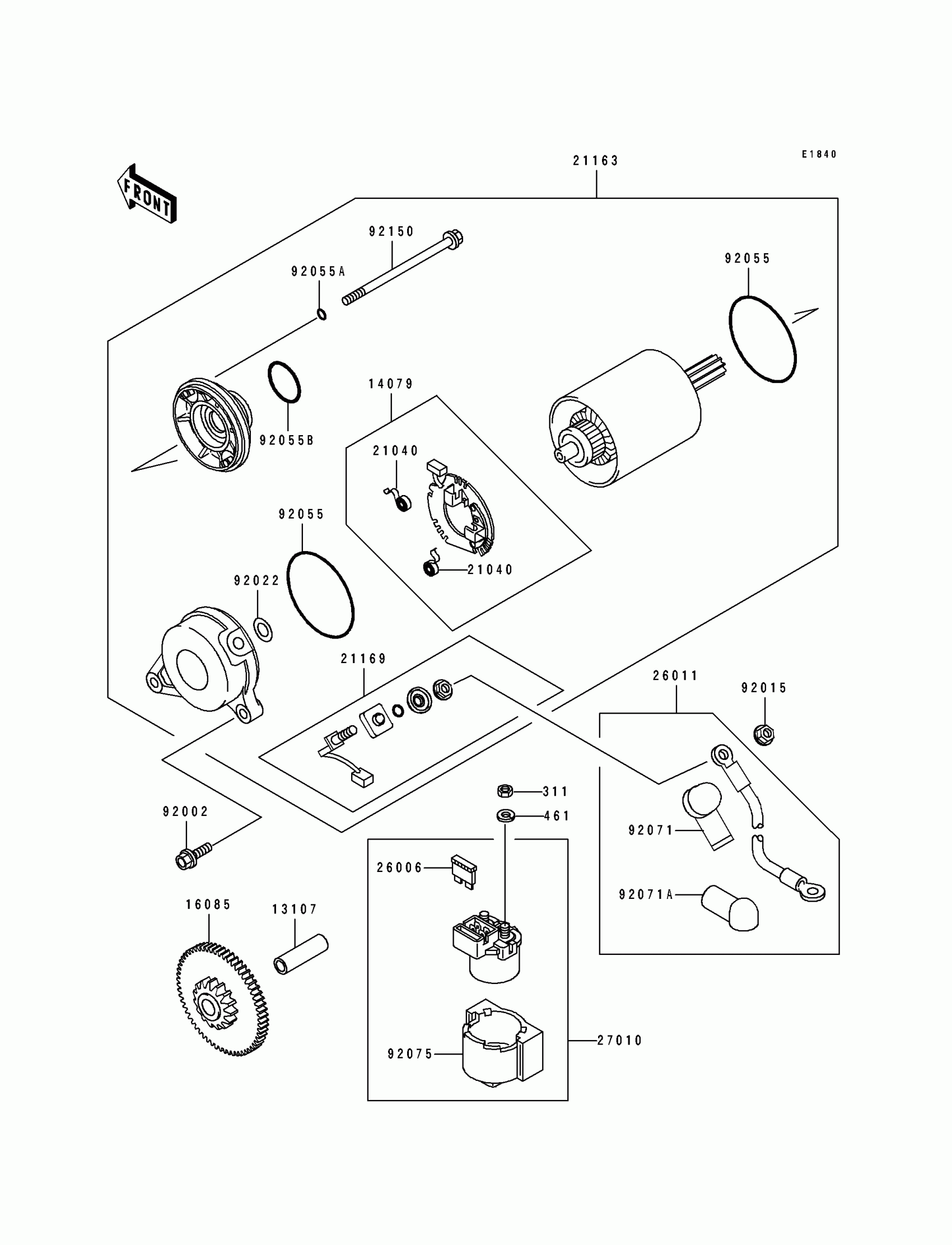

Kawasaki Ninja® ZX™-7R Starter Motor Diagram

Description

Price

13107

SHAFT

13107-1112

$29.16

14079

HOLDER-ASSY,CARBON BRUSH

14079-1082

$44.97

16085

GEAR,IDLE

16085-1104

$138.23

21040

SPRING-BRUSH

21040-1051

$7.56

21163

STARTER-ELECTRIC

21163-1193

$651.53

21169

TERMINAL,STARTER

21169-1058

$60.22

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD,STARTER MOTOR

26011-1473

Unavailable

27010

SWITCH,MAGNETIC

27010-1213

Unavailable

92002

BOLT,6X20

92001-1947

$3.88

92015

NUT

92015-1623

$4.59

92022

WASHER

92022-2200

$1.27

92055

RING-O,62MM

92055-1260

$9.80

92055A

RING-O,4.5MM

92055-1261

$2.29

92055B

RING-O,24.4X3.1

92055-1262

$11.90

92071

GROMMET,STARTER TERMINAL

92071-1120

$12.80

92071A

GROMMET,TERMINAL

92071-1121

Unavailable

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92150

BOLT

92150-1237

$7.46

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
