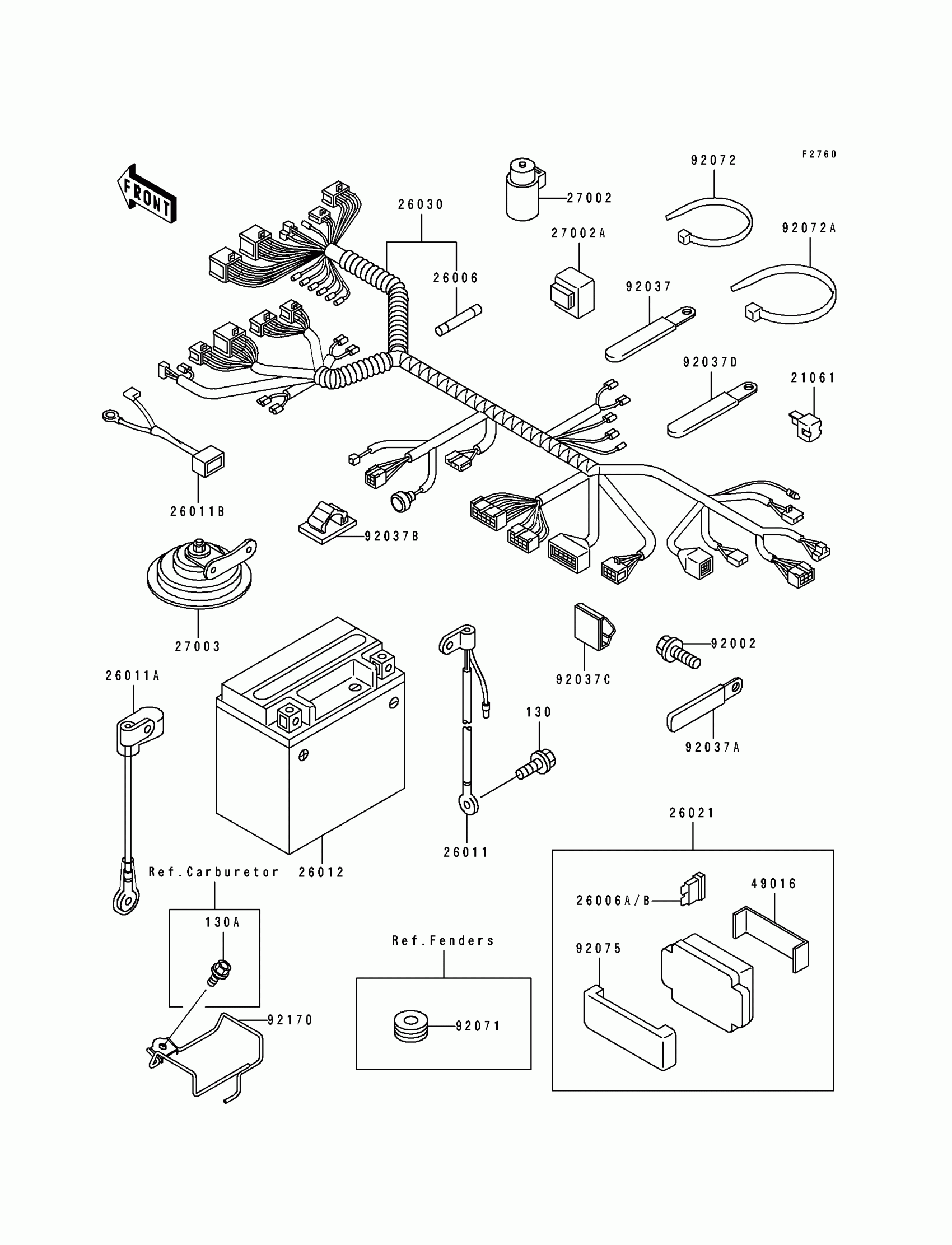

Kawasaki Ninja® ZX™-7R Chassis Electrical Equipment Diagram

Description

Price

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,20A,L=30

26006-1056

$4.47

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-1429

$31.43

26011A

WIRE-LEAD,BATTERY(+)

26011-1475

Unavailable

26011B

WIRE-LEAD,THERMO SENSOR

26011-1507

$29.74

26012

BATTERY,YTX9-BS,12V 8AH

26012-1284

$145.53

26021

JUNCTION BOX

26021-1077

$221.06

26030

HARNESS,MAIN

26030-1164

Unavailable

27002

RELAY-ASSY

27002-1051

$48.39

27002A

RELAY-ASSY,TURN SIGNAL

27002-1059

$90.83

27003

HORN

27003-1316

$85.46

49016

COVER-SEAL,FUSE

49016-1125

Unavailable

92002

BOLT,TAPPING,5X16

92002-1472

$1.32

92037

CLAMP,L=45

92037-1539

$4.42

92037A

CLAMP

92037-1679

$4.18

92037B

CLAMP,HARNESS

92037-1816

$5.74

92037C

CLAMP,WIRING HARNESS

92037-1954

Unavailable

92037D

CLAMP

92037-1993

$4.18

92071

GROMMET,SENSOR LEAD

92071-1058

$5.02

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=365

92072-1197

$7.71

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92170

CLAMP,HARNESS

92170-1375

$35.68

130

BOLT-FLANGED,6X10

130G0610

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable
