1994 Kawasaki Ninja® ZX™-7R Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1994 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

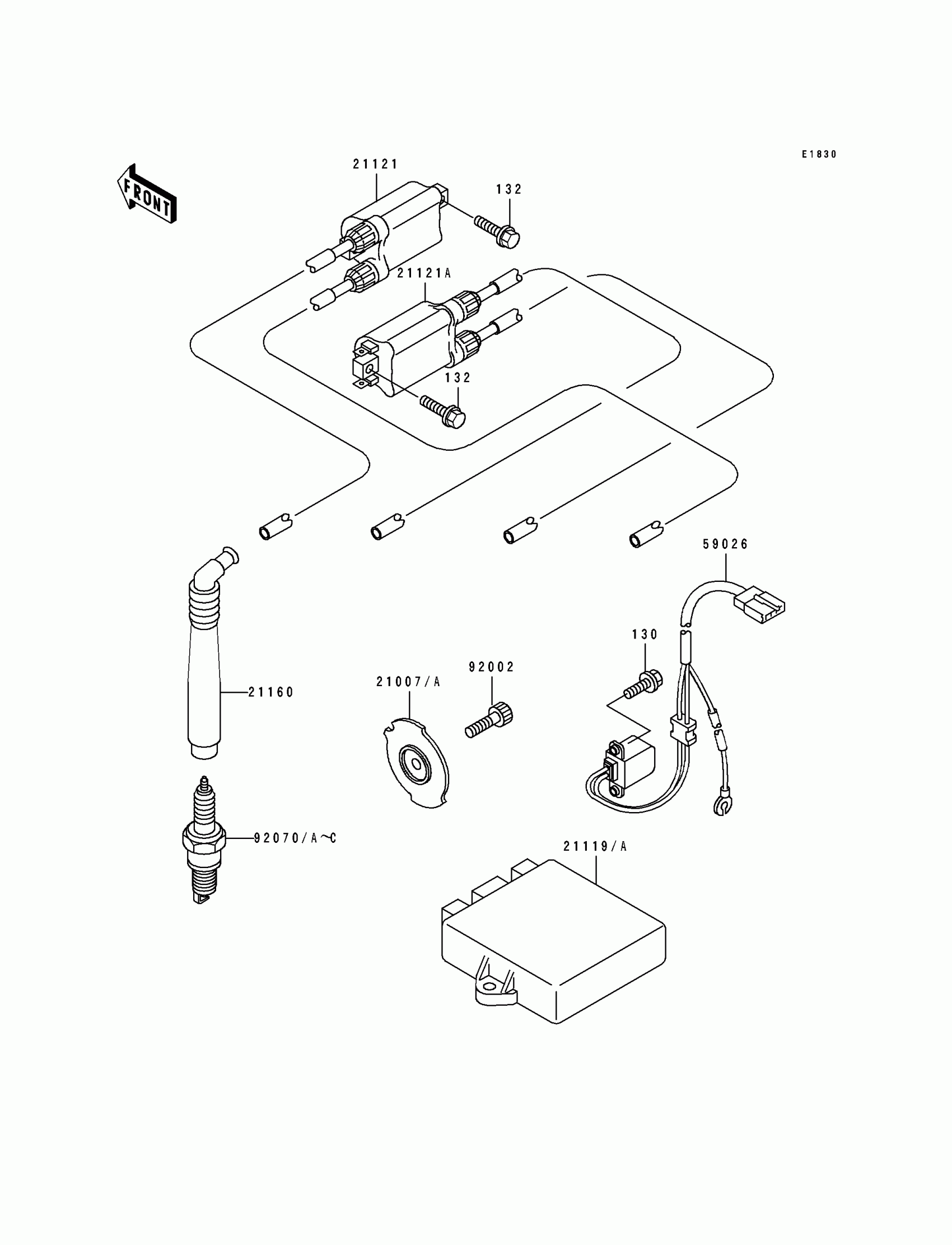

1994 Kawasaki Ninja® ZX™-7R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING

21007-1222

1
Out of stock

21007A

ROTOR,PULSING

21007-1227

1
Out of stock

21119

IGNITER

21119-1366

1
Out of stock

21119A

IGNITER

21119-1367

1
Out of stock

21121

COIL-IGNITION,#1

21121-1218

1
Out of stock

21121A

COIL-IGNITION,#2

21121-1219

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1086

1
Out of stock

59026

COIL-PULSING

59026-1104

1
Out of stock

92002

BOLT,SOCKET,8X20

92002-1178

1
Out of stock

92070

PLUG-SPARK,CR9E(NGK)

92070-1143

1
Out of stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92070B

PLUG-SPARK,CR8E(NGK)

92070-1169

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock
