1994 Kawasaki Ninja® ZX™-7R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1994 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

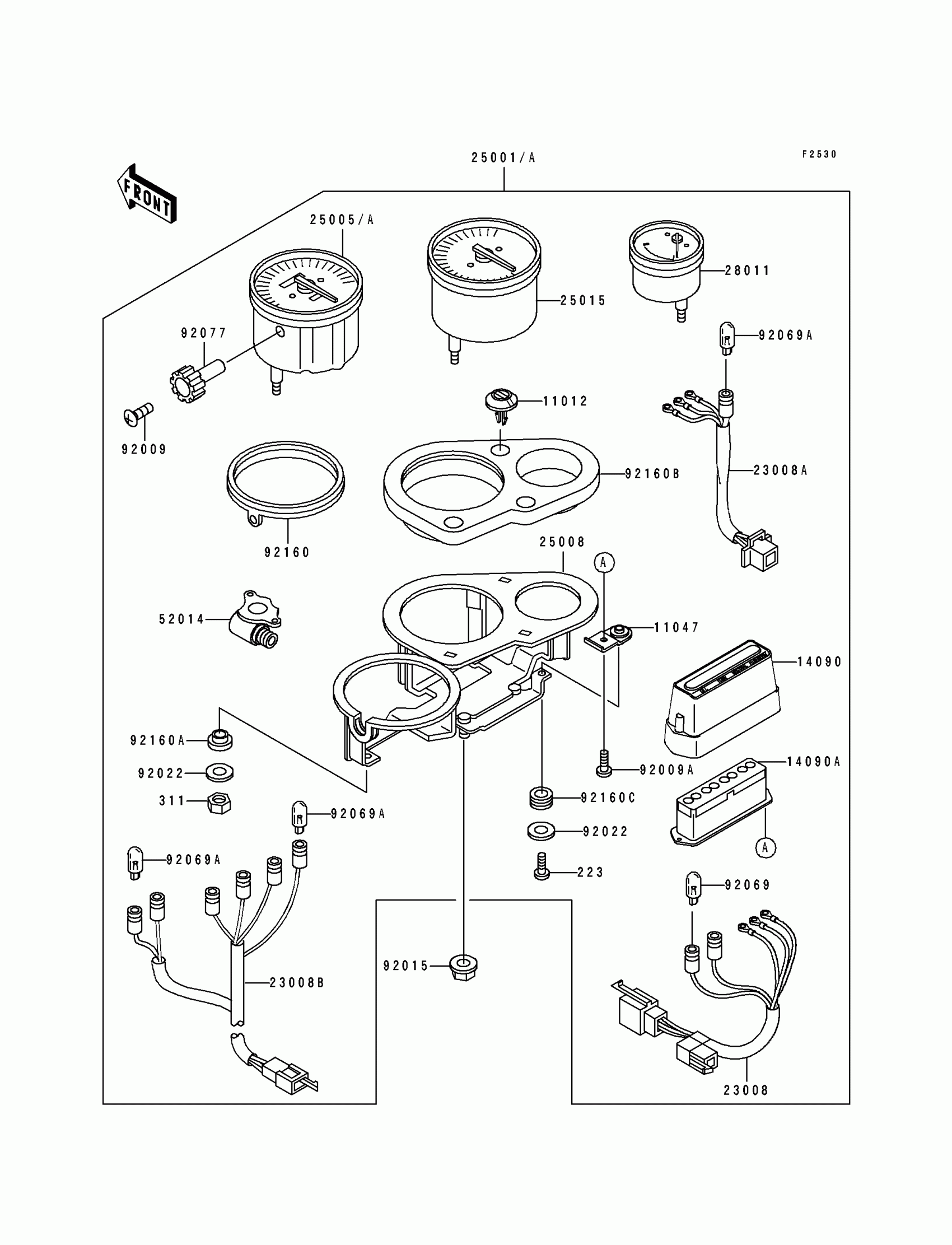

1994 Kawasaki Ninja® ZX™-7R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1779

1
Out of stock

11047

BRACKET,PILOT BOX

11047-1557

1
Out of stock

14090

COVER,PILOT BOX,UPP

14090-1072

1
Out of stock

14090A

COVER,PILOT BOX,LWR

14090-1073

1
Out of stock

23008

SOCKET-ASSY,TACHOMETER

23008-1386

1
Out of stock

23008A

SOCKET-ASSY,TEMP METER

23008-1388

1
Out of stock

23008B

SOCKET-ASSY,SPEEDOMETER

23008-1465

1
Out of stock

25001

METER-ASSY,MPH

25001-1901

1
Out of stock

25005A

SPEEDOMETER,MPH

25005-1544

1
Out of stock

25008

BRACKET-METER

25008-1175

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1316

1
Out of stock

28011

METER,TEMP

28011-1129

1
Out of stock

52014

ELBOW

52014-1081

1
Out of stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,4.3X12.5X1

92022-1949

1
Out of stock

92069

BULB,12V 3W,T7

92069-1020

1
Out of stock

92069A

BULB,14V 3W,T6.5

92069-1068

1
Out of stock

92077

KNOB,METER

92077-1073

1
Out of stock

92160

DAMPER,SPEEDOMETER

92160-1064

1
Out of stock

92160A

DAMPER

92160-1068

1
Out of stock

92160B

DAMPER,TACHO&TEMP METER

92160-1274

1
Out of stock

92160C

DAMPER,PILOT BOX

92160-1320

1
Out of stock

223

SCREW-PAN-WS-CROS,4X6

223C0406

1
Out of stock

311

NUT-HEX

311C0400

1
Out of stock
