1985 Kawasaki Ninja® Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

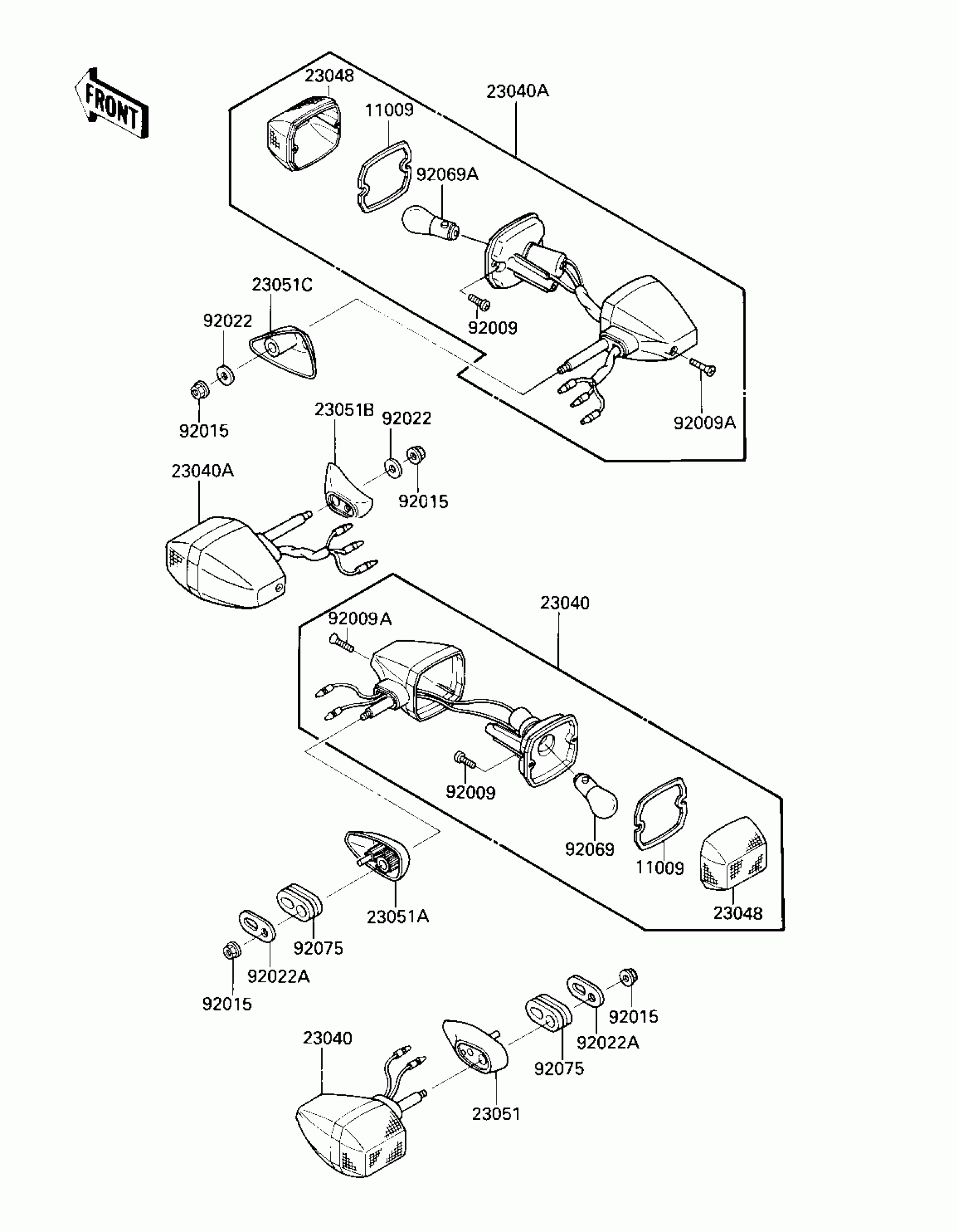

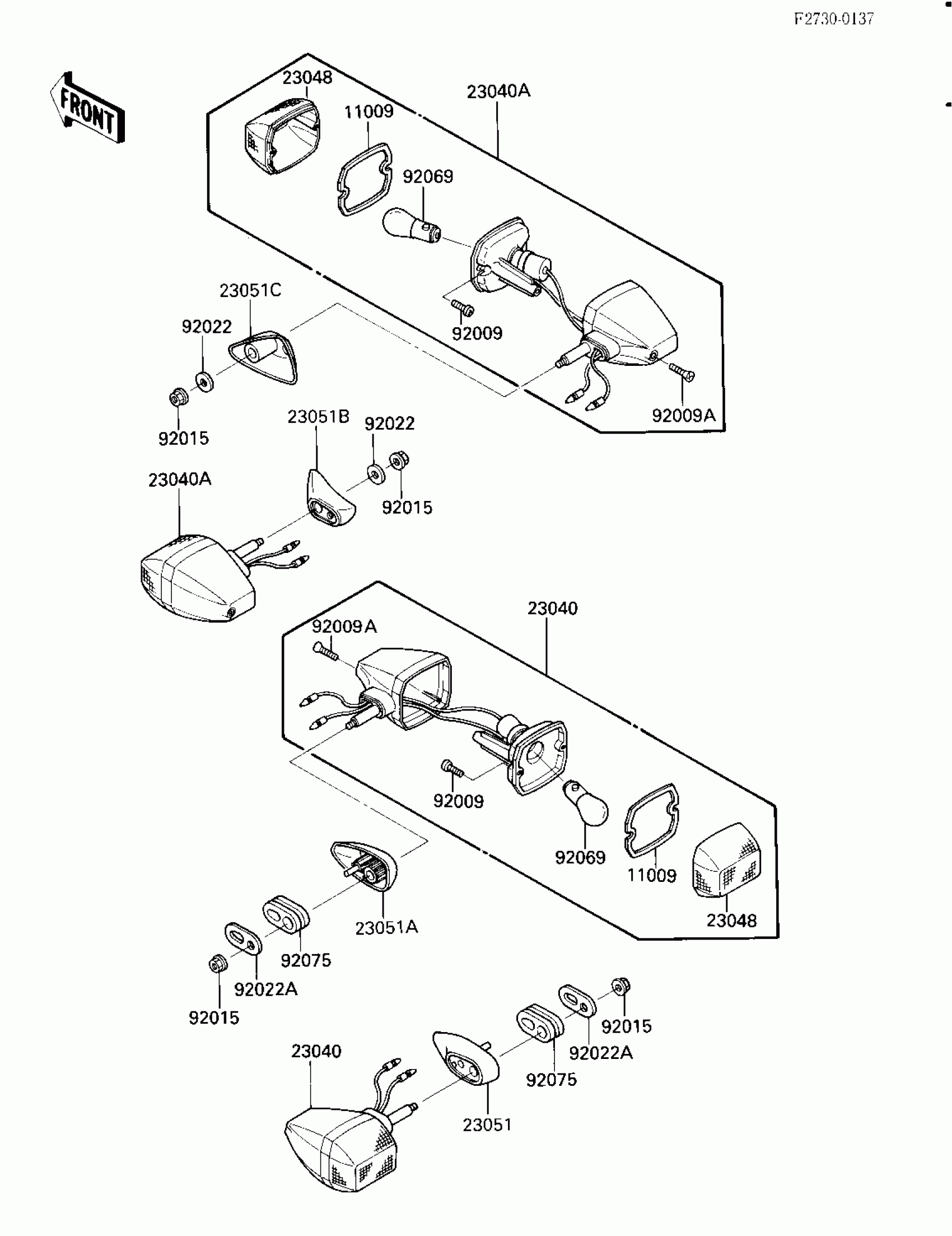

1985 Kawasaki Ninja® Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1402

1

$4.39

In stock

23040

LAMP-SIGNAL,RR

23040-1102

1
Out of stock

23040A

LAMP-SIGNAL,FR

23040-1105

1

$75.36

In stock

23048

LENS-SIGNAL LAMP

23048-1054

1

$8.30

In stock

23051

1

$17.07

In stock

23051A

1

$17.07

In stock

23051B

BRACKET-SIGNAL LAMP,F

23051-1174

1
Out of stock

23051C

1

$17.07

In stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92022A

WASHER,SIGNAL LAMP FI

92022-1604

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92075

1

$7.95

In stock
