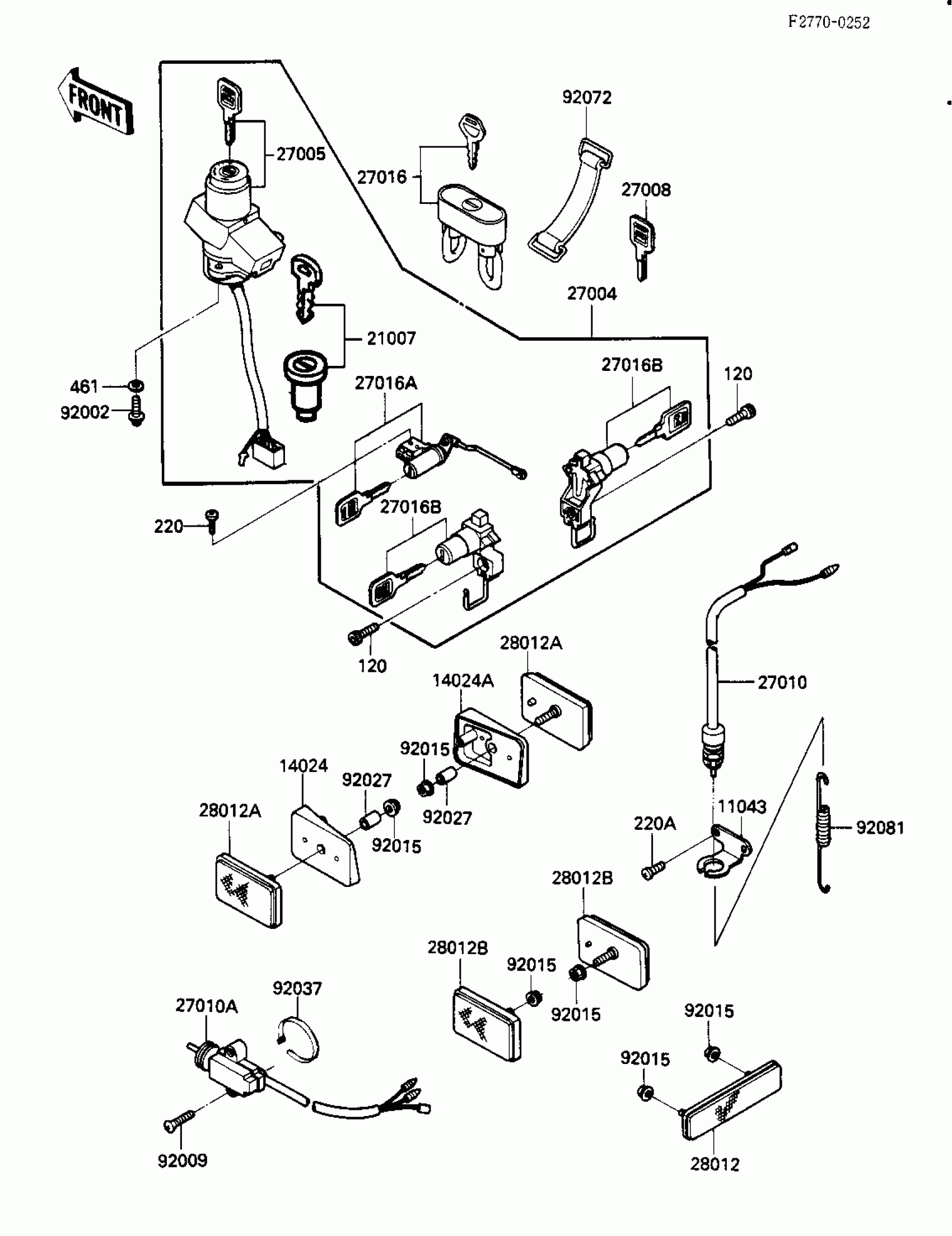

Kawasaki Ninja® IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

11043

BRACKET,RR BRAKE SWIT

11043-1451

Unavailable

14024

COVER,REFLECTOR,FR

14025-1886

$15.88

14024A

COVER,REFLECTOR,FR

14025-1887

$15.88

21007

ROTOR,TANK CAP

21007-5008

$94.15

27004

SWITCH-ASSY

27004-5273

$447.84

27005

SWITCH-ASSY-IGNITION

27005-5035

$196.81

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,REAR BRAKE

27010-1019

$37.98

27010A

SWITCH,SIDE STAND

27010-1169

$73.52

27016

LOCK-ASSY,WHEEL

27016-1051

$134.03

27016A

LOCK-ASSY,SEAT

27016-5079

Unavailable

27016B

LOCK-ASSY,HELMET

27016-5080

$77.51

28012

REFLECTOR-REFLEX,RR

28012-1005

$28.89

28012A

REFLECTOR-REFLEX,FR

28012-1052

$25.24

28012B

REFLECTOR-REFLEX,RR

28012-1054

$18.15

92002

BOLT,TORX,6X16

92002-1333

$1.85

92009

SCREW,5X20

92009-1359

$4.25

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92027

COLLAR,5.6X8X14.5

92027-1789

$4.42

92037

CLAMP,L=200

92037-1576

$8.22

92072

BAND,L=100

92072-071

$9.24

92081

SPRING,BRAKE LAMP SWI

92081-1673

$6.92

120

BOLT-SOCKET,6X12

120S0612

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.47

220A

SCREW-PAN-CROS,6X8

220B0608

$0.54

461

WASHER SPRING 6MM

461F0600

Unavailable
