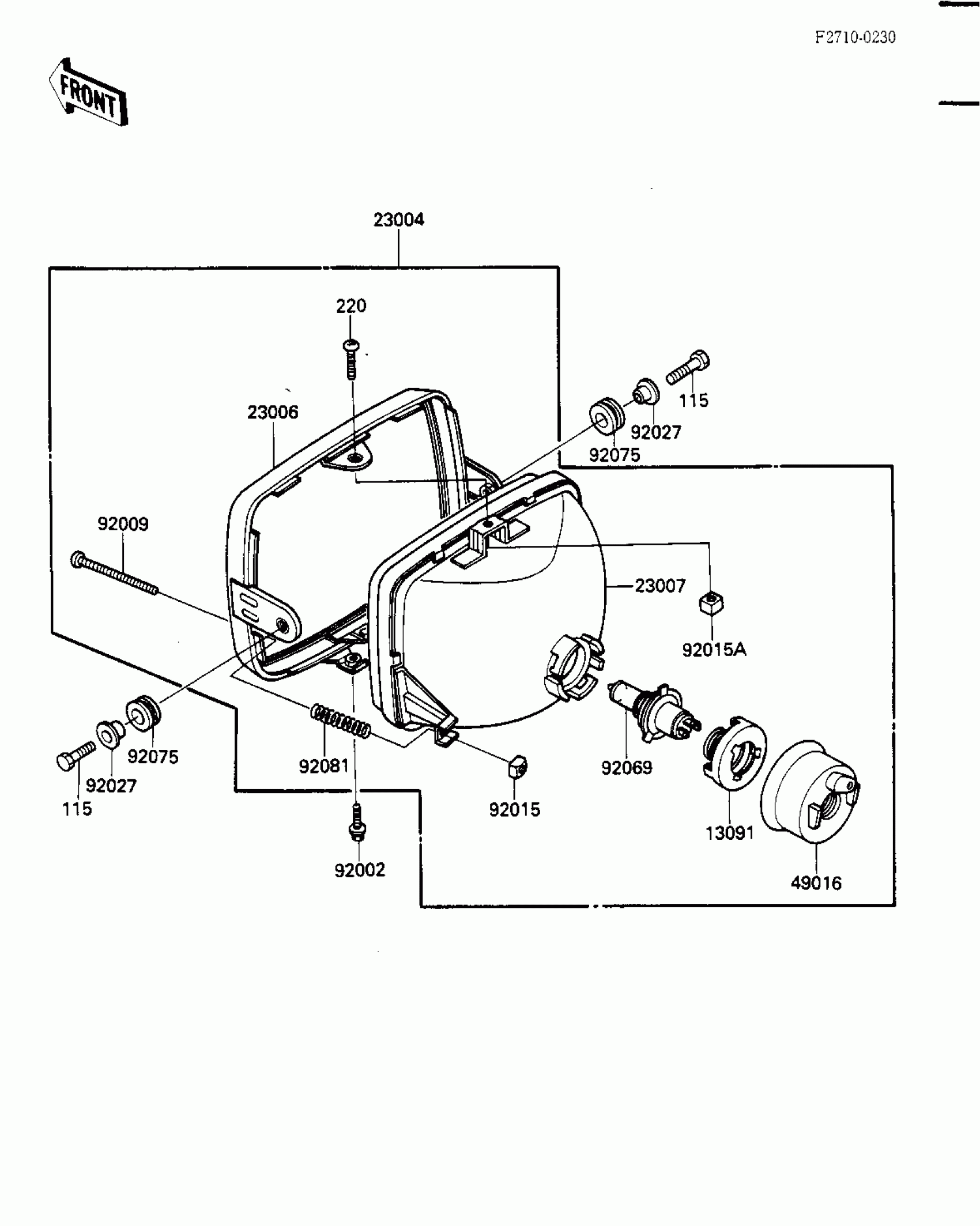

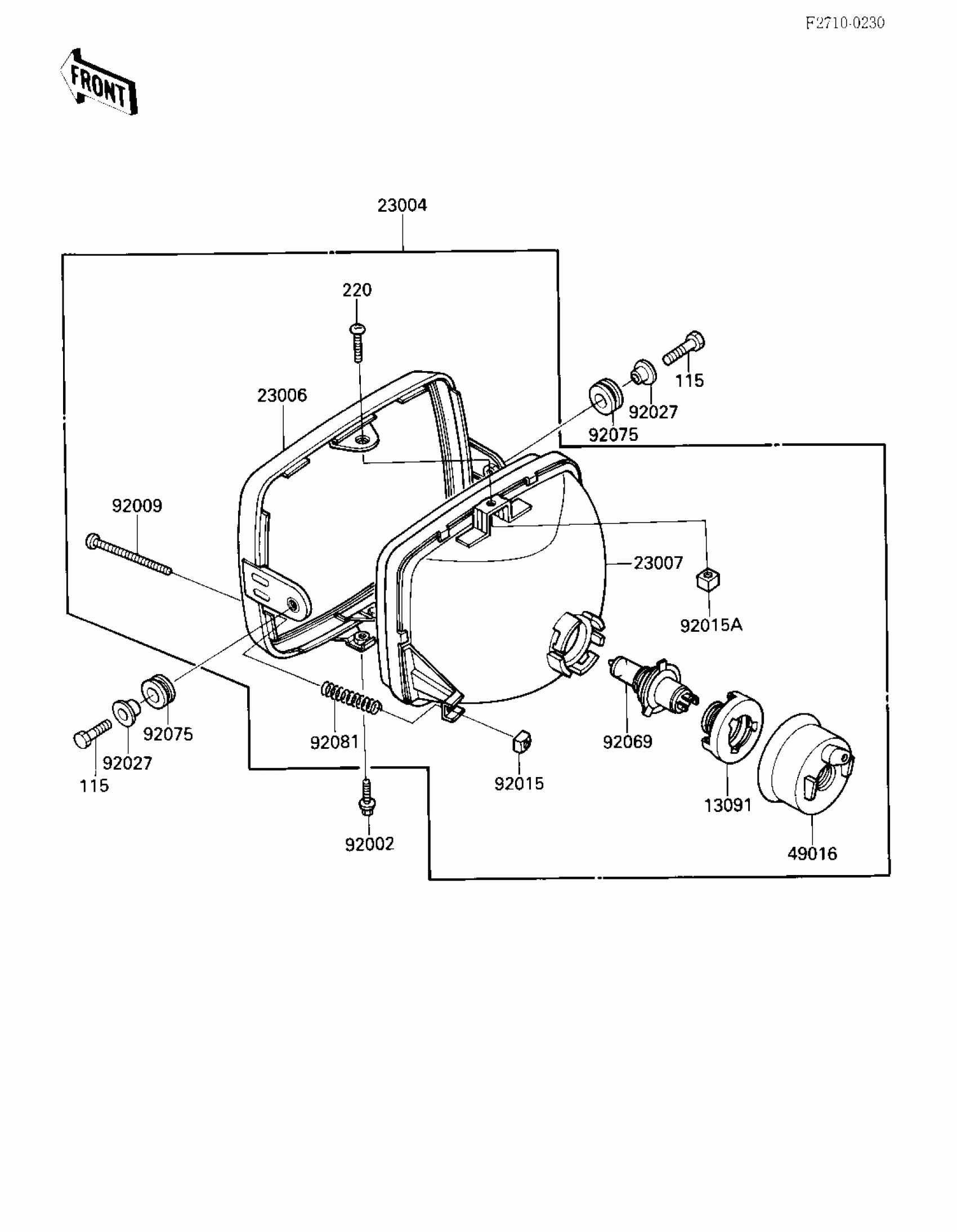

1985 Kawasaki Ninja® Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki Ninja® Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,HEAD LAMP SOCK

13091-1036

1
Out of stock

23004

LAMP-HEAD

23004-1164

1

$451.46

In stock

23006

RIM-LAMP

23006-1054

1
Out of stock

23007

LENS-COMP

23007-1109

1
Out of stock

49016

COVER,HEAD LAMP SOCKE

49016-1023

1
Out of stock

92002

BOLT,FLANGED,6X12

92002-1350

1
Out of stock

92009

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,5MM

92015-1157

1
Out of stock

92027

1

$8.16

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER

92160-1007

1

$4.37

In stock

92081

1

$4.10

In stock

115

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock
