1985 Kawasaki Ninja® Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

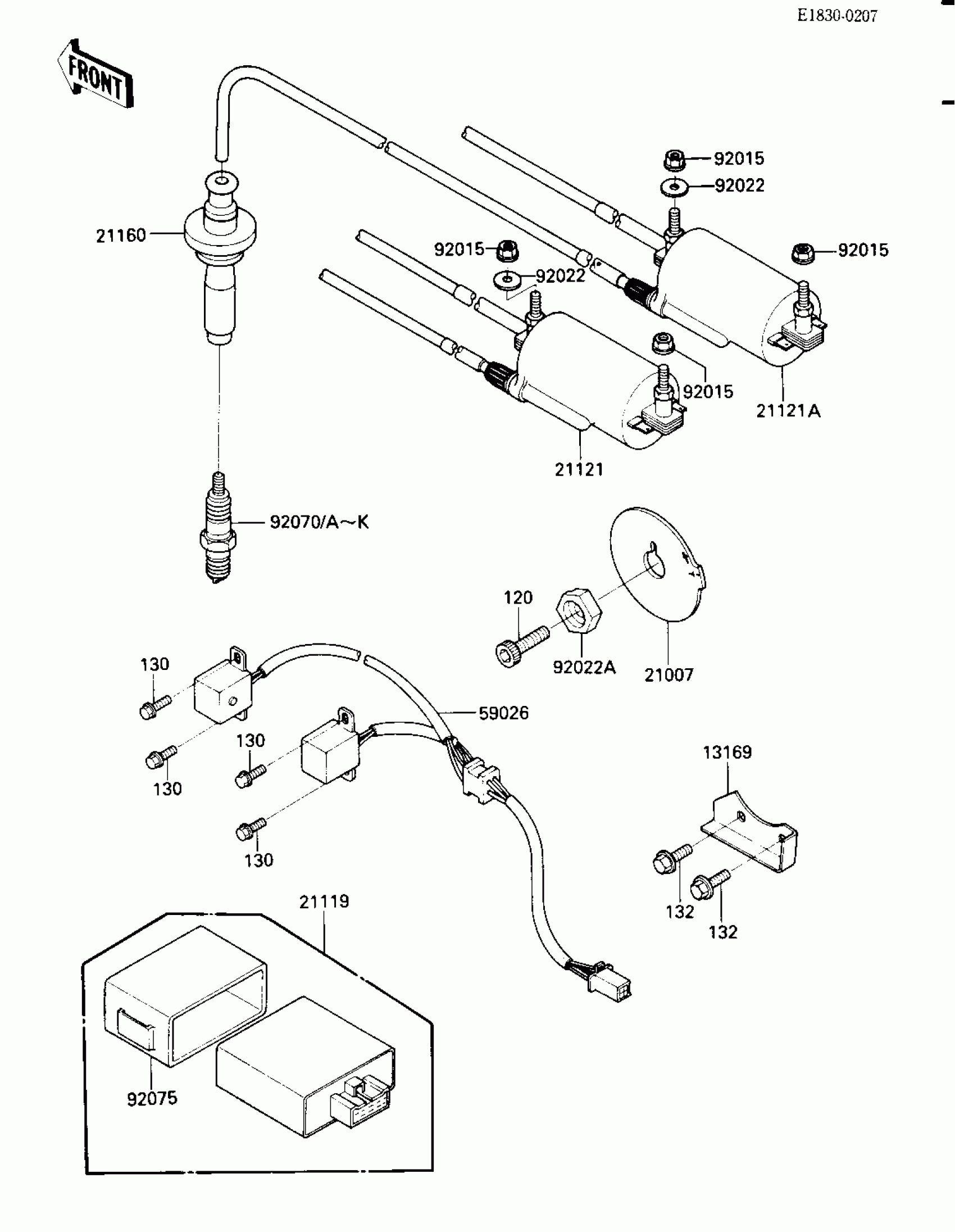

1985 Kawasaki Ninja® Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,CHAIN GUIDE

13169-1748

1

$14.63

In stock

21007

ROTOR,PULSING COIL

21007-1109

1

$53.39

In stock

21119

IGNITER

21119-1110

1

$590.34

In stock

21121

COIL-IGNITION,#1

21121-1110

1

$152.92

In stock

21121A

COIL-IGNITION,#2

21121-1111

1

$152.92

In stock

21160

CAP-ASSY-PLUG

21160-1065

1

$54.68

In stock

59026

COIL-PULSING

59026-1061

1

$220.35

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER PLAIN

92022-024

1

$2.92

In stock

92022

WASHER PLAIN

92022-024

1

$2.92

In stock

92022A

WASHER,ROTOR

92200-1173

1
Out of stock

92070A

SPARK PLUG D8EA

D8EA

1
Out of stock

92070C

1

$2.92

In stock

92070D

1

$9.24

In stock

92070F

1

$2.74

In stock

92070I

PLUG-SPARK,DR7ES(NGK)

92070-1113

1
Out of stock

92070J

1

$2.92

In stock

92075

DAMPER,IGNITER

92075-1592

1

$46.64

In stock

120

BOLT-SOCKET,8X25

120P0825

1
Out of stock

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock
